Engine Compartment - Clean
i01978979
Engine Compartment - Clean
SMCS Code: 1000-070
Inspect the eng
ine compartment for dirt buildup or
debris. Remove any dirt or debris from the engine
compartment.
1. Open the engine access door. Refer to Operation
and Maintenance Manual, “Access Doors and
Covers”.
2. Remove any debris or dirt from the engine
compartment
.
Note: Use care when you clean the engine
compartment
. Damage to the machine may occur.
3. Close the engine access door.
Air Conditioning Condenser
The air conditioning condenser is located at the
back of the engine compartment. Cleaning the
air conditi
oning condenser will maintain optimum
performance of the air conditioning system.
Use low pres
sure water in order to clean the
condenser.
i01819955
Engine Crankcase Breather
(Closed Circu
it)-Replace
SMCS Code: 1317-510
S/N: CNC1-Up
S/N: CNY1-Up
g00929163

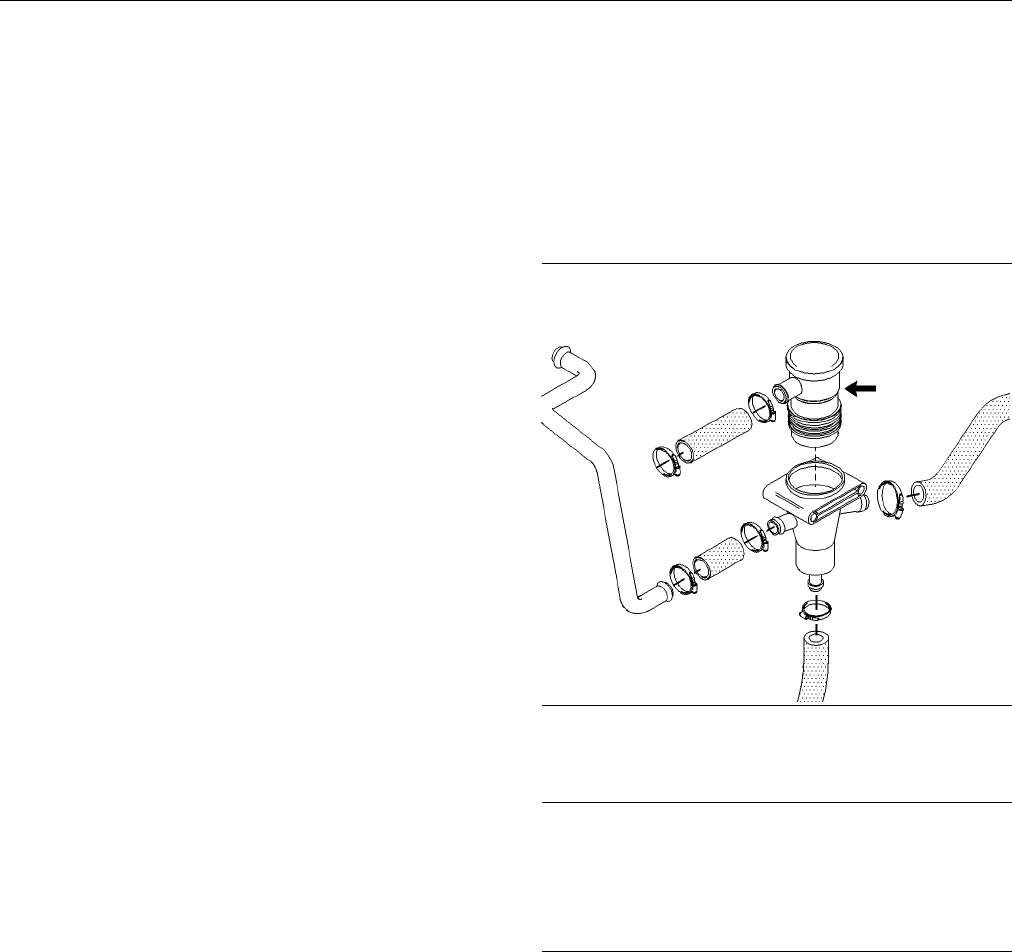

Illustration 122
The breather is located on the left s ide of the engine on
turbocharged machines.
NOTICE
Ensure that the breather pipe connections are tight.
Do not overfill the engine cranckcase. If there is too
much oil in the crankcase oil may enter the breather.
Oil entering the breather may cause the engine speed
to increase rapidly without control.
1. Firmly grasp the breather and pull up on the
breather in order to remove the breather.
2. Remove the breather hoses. Clean the hoses with
nonflammable solvent.
3. Install a new breather. Ensure that the breather is
properly seated in the base.
4. Install the breather hoses. Ensure that the
connections are tight.
