247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 100

Operation and Maintenance Manual
100 SEBU7494-06
Maintenance Section
Axle Bearings - Lubricate
i01989568
Axle Bearings - Lubricate
SMCS Code: 3282-086-BD
S/N: CML1-Up
S/N: CMM1-Up
S/N: CNY1-Up

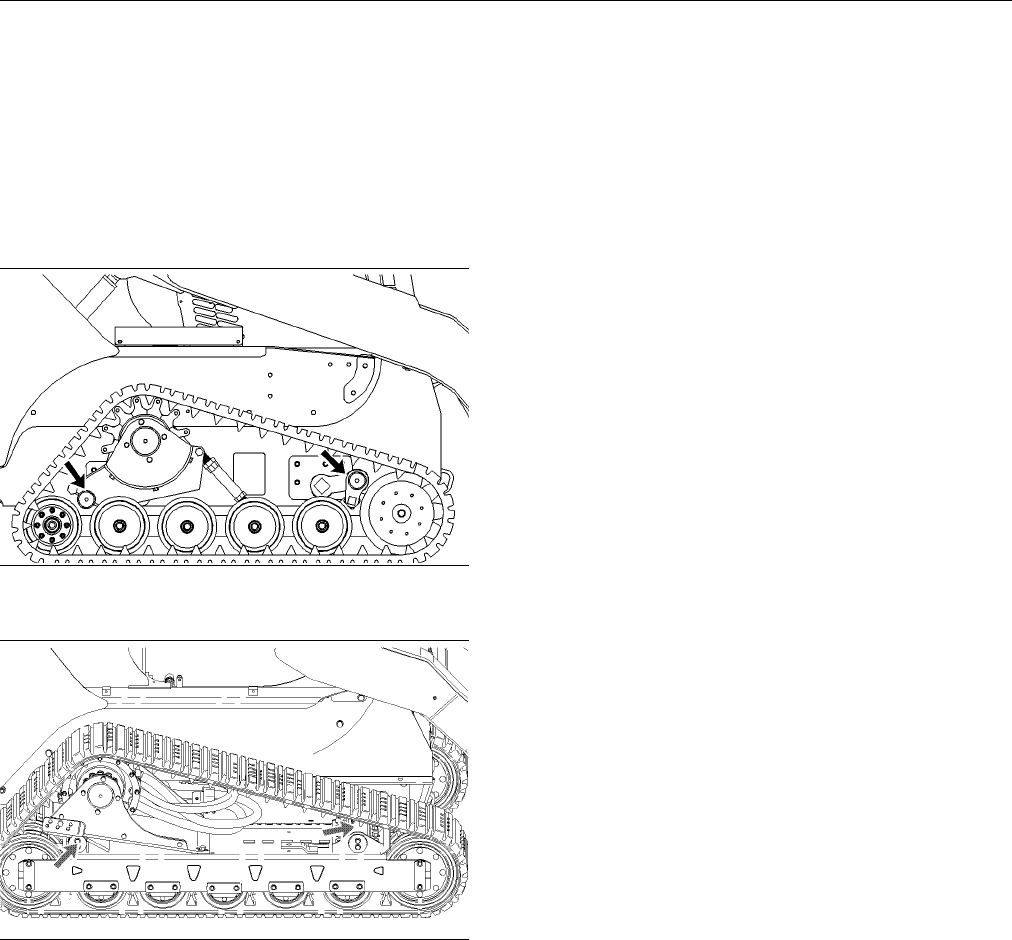

g00895314
Illustration 92
247 a nd 257
g01030370
Illustration 93
287
Apply lubri
cant to the grease fittings for the rear axle
bearings and the front axle bearings.
Repeat the
process for the opposite side of the
machine.
i01017495
Backup Alarm - Test
SMCS Code:
7406-081
To prevent injury, make sure that no people are
working on
the machine or near the machine. To
prevent injury, keep the machine under control at all
times.
1. Get into the ope
rator ’s seat. Fasten the seat belt
and pull the armrest downward.
2. Start the engi
ne.
3. Disengage the parking brake.
4. Move the speed/direction control lever to the
REVERSE position.
The backup alarm (if equipped) should sound
immediately. The backup alarm should continue
to sound unti
l the speed/direction control lever
is returned to the HOLD position or to the
FORWARD position.
i00993589
Battery - Recycle
SMCS Code: 1
401-561
Always recycle a battery. Never discard a battery.
Always return used batteries to one of the following
locations:
•
A battery supplier
•
An authoriz
ed battery collection facility
•
Recycling facility
i01719520
Battery or Battery Cable -
Inspect/Replace
SMCS Code: 1401-040; 1401-510; 1401-561;
1402-040; 1402-510
1. TurntheenginestartswitchtotheOFFposition.
Turn all switches to the OFF position.
2. Disconnect the negative battery cable from the
starter.
Note: Do not allow the disconnected battery cable to
contact the frame of the machine.
3. Disconnect the negative battery cable at the
battery.
4. Perform the necessary repairs. Replace the cable
or the battery, as needed.
5. Connect the negative battery cable at the battery.
6. Connect the battery cable to the starter of the
machine.
