Track (Rubber) - Remove/Replace

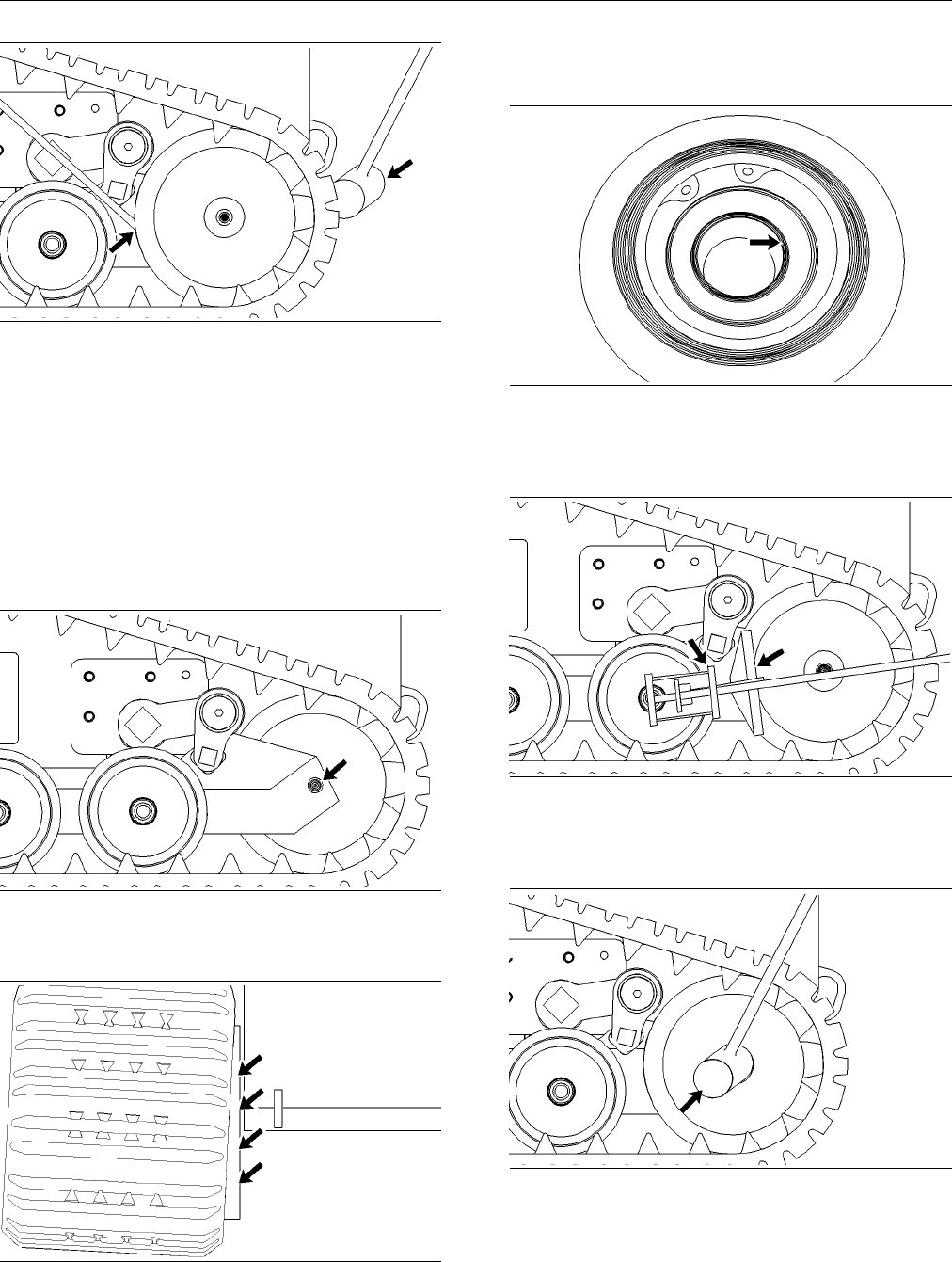

g00953730
Illustration 181
9. Use a large mallet in order to strike the inside of
thetrack.Thiswillcausethewheelbearingtopop
out of the wheel. The bearing must come out of
the wheel in order for the wheel to be removed.
A pry bar may be needed in order to remove the
wheel completely.
10. Remove the track.
Installing the Track 247 and 257
g00953812
Illustration 182
1. Install t
he cap.
g00953873
Illustration 183
2. Lubricate the w
heel and the inside of the track in
order to ease the installation of the track. Pull the
track onto the wheels.
g00953919
Illustration 184
3. Inspect the seal on the wheel. Replace the seal
if the seal is damaged.
g00953942
Illustration 185
4. Use the in
stallation tool for the track in order to
install the wheel onto the shaft. Remove the cap.
g00954
078
Illustration 186
5. Use a mallet in order to seat the wheel on the
shaft.
