i01896611
Rated Load
SMCS Code: 6001; 6136; 6542; 7000
Bucket Rated Load
Failure to comply to the rated load can cause pos-
sible personal injury or property damage. Review
the rated load of a particular work tool before per-
forming any operation. Make adjustments to the
rated load as necessary for non-standard config-
urations.
Note: Ratedloadsshouldbeusedasaguide.
Attachments, uneven ground conditions, soft ground
conditions, or poor ground conditions have effects on
rated loads. The operator is responsible for being
aware of these effe cts.
Rated loads are based upon a standard machine with
the following conditions:
•
lubricants
•
full fuel tank
•
75 kg (165 lb) operator
Rated loads will vary with different attachments.
Contact your Caterpillar dealer regarding the rated
load for specific attachments.
The rated operating load for skid steer loaders that
are equipped with rubber tires is defined by the SAE
standard “J818” (May 1987) and by the ISO 5998
(1986) as 50% of the full static tipping load on a
hard, smooth, level surface. The rated operating
load for machines that a re equipped with steel tracks
is defined by the SAE standard “J818” (May 1987)
and by the ISO 5998 (1986) as 35% of the full static
tipping load on a soft, less smooth or level surface.
The correspond
ing dump clearance is given for each
bucket at maximum lift height and at a 40 degree
dump angle. The reach is given for each bucket
at maximum lif
t height and at a 40 degree dump
angle. Clearance is measured from the ground to the
bucket edge in order to dump the load. The reach is
measured fro
m the front of the track to the bucket
edge.

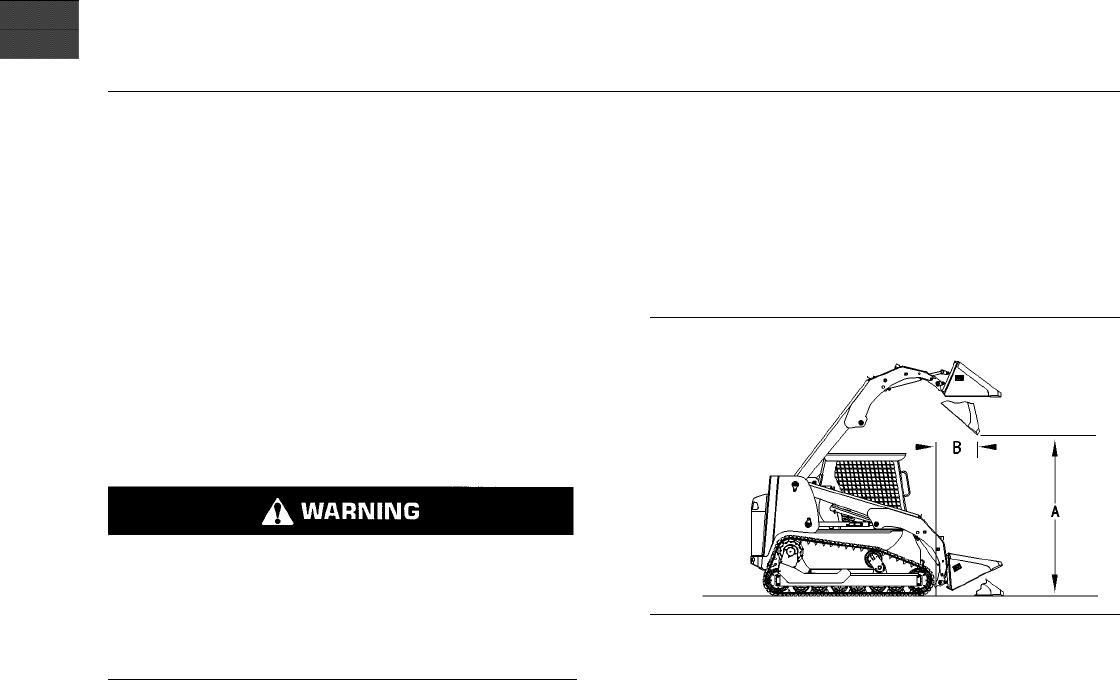

g00777496
Illustration 14
Dimension (A) represents the dump clearance. D imension (B)
represents the reach.
The following tables provide the rated operating
capacities (R.O.C) for the standard machine
configuration with a bucket.
