247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 130

Operation and Maintenance Manual
130 SEBU7494-06
Maintenance Section
Seat Belt - Inspect
1. Inspect the ROP
S and the FOPS for loose bolts.
Tighten the bolts (1) to the following torque
125 ± 10 N·m (92 ± 7 lb ft). Tighten the bolts (2)
to the followi
ng torque 55 ± 5 N·m (41 ± 4 lb ft).
Tighten the bolts (3) to the following torque
240 ± 40 N·m (177 ± 30 lb ft). ROPS and the
FOPS for dama
ged bolts or missing bolts. Replace
any damaged bolts or missing bolts with original
equipment parts only.
2. Operate the machine on a rough surface. Replace
the ROPS mounting supports if the ROPS emits
anoise.Rep
lace the ROPS mounting supports if
the ROPS rattles.
Do not strai
ghten the ROPS or the FOPS. Do
not repair the ROPS or the FOPS by welding
reinforcement plates to the ROPS or the FOPS.
Consult your Caterpillar dealer for repair of any
cracks in the ROPS or the FOPS.
g01022169

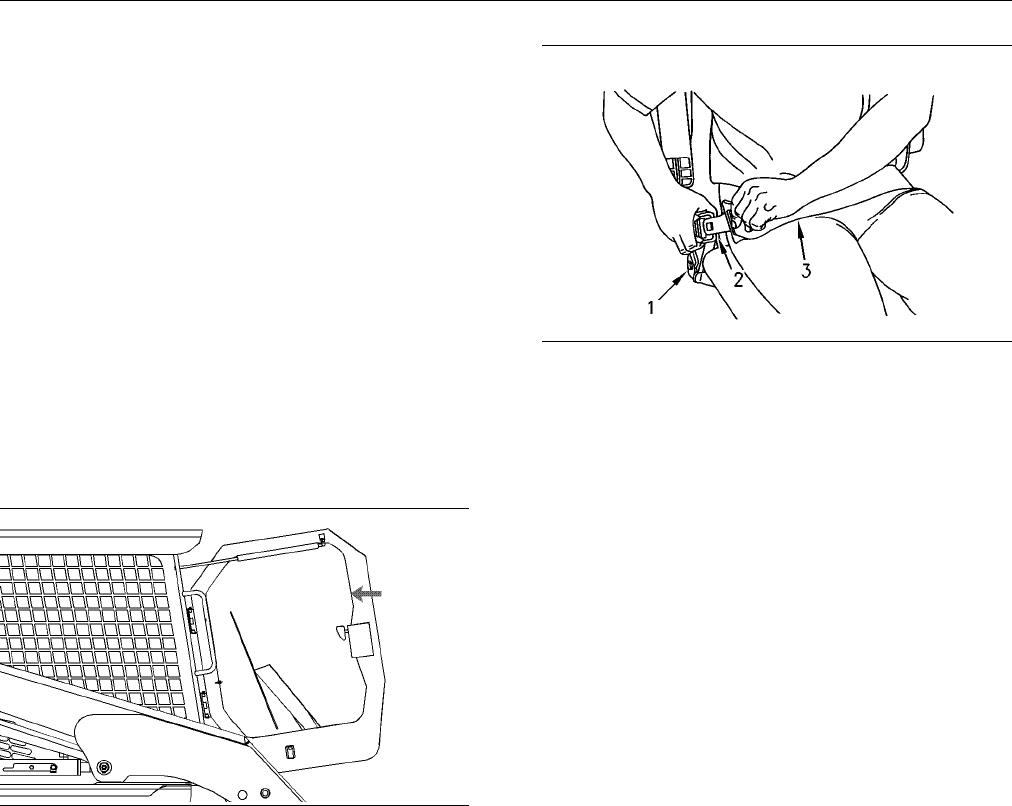

Illustration 159
Inspect the Flying Object Guard (if equipped) for
damage.
Consult your Caterpillar dealer for repair of any
cracks in the Flying Object Guard.
i024295
89
Seat Belt - Inspect
SMCS Code: 7327-040
Always c
heck the condition of the seat belt and the
condition of the seat belt mounting hardware before
you operate the machine. Replace any parts that are
damage
d or worn before you operate the machine.
g00932801
Illustration 160
Typical example
Check the seat belt mounting hardware (1) for wear
or for damage. Replace any mounting hardware that
is worn or damaged. Make sure that the mounting
bolts are tight.
Check buckle (2) for wear or for damage. If the buckle
is worn or damaged, replace the seat belt.
Inspect the seat belt (3) for webbing that is worn or
frayed. Replace the seat belt if the seat belt is worn
or frayed.
Consult your Caterpillar dealer for the replacement of
the seat belt and the mounting hardware.
Note: Within three years of the date of installation or
within five years of the date of manufacture, replace
the seat belt. Replace the seat belt at the date which
occurs first. A date label for determining the age of
the seat belt is attached to the seat belt, the seat belt
buckle, and the seat belt retra ctor.
If your machine is equipped with a seat belt
extension, also perform this inspection procedure for
the seat belt extension.
i02429594
Seat Belt - R eplace
SMCS Code: 7327-510
Within three years of the date of installation or within
five years of the date of manufacture, replace the
seat belt . Replace the seat belt at the date which
occurs first. A date label for determining the age of
the seat belt is attached to the seat belt, the seat belt
buckle, and the seat belt retra ctor.
