C27 and C32 Generator Sets Engines Disassembly and Assembly Page 98

Disassembly and Assembly
98 RENR9716-02
Disassembly and Assembly Section
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. Turn the fuel supply valve to the OFF position.

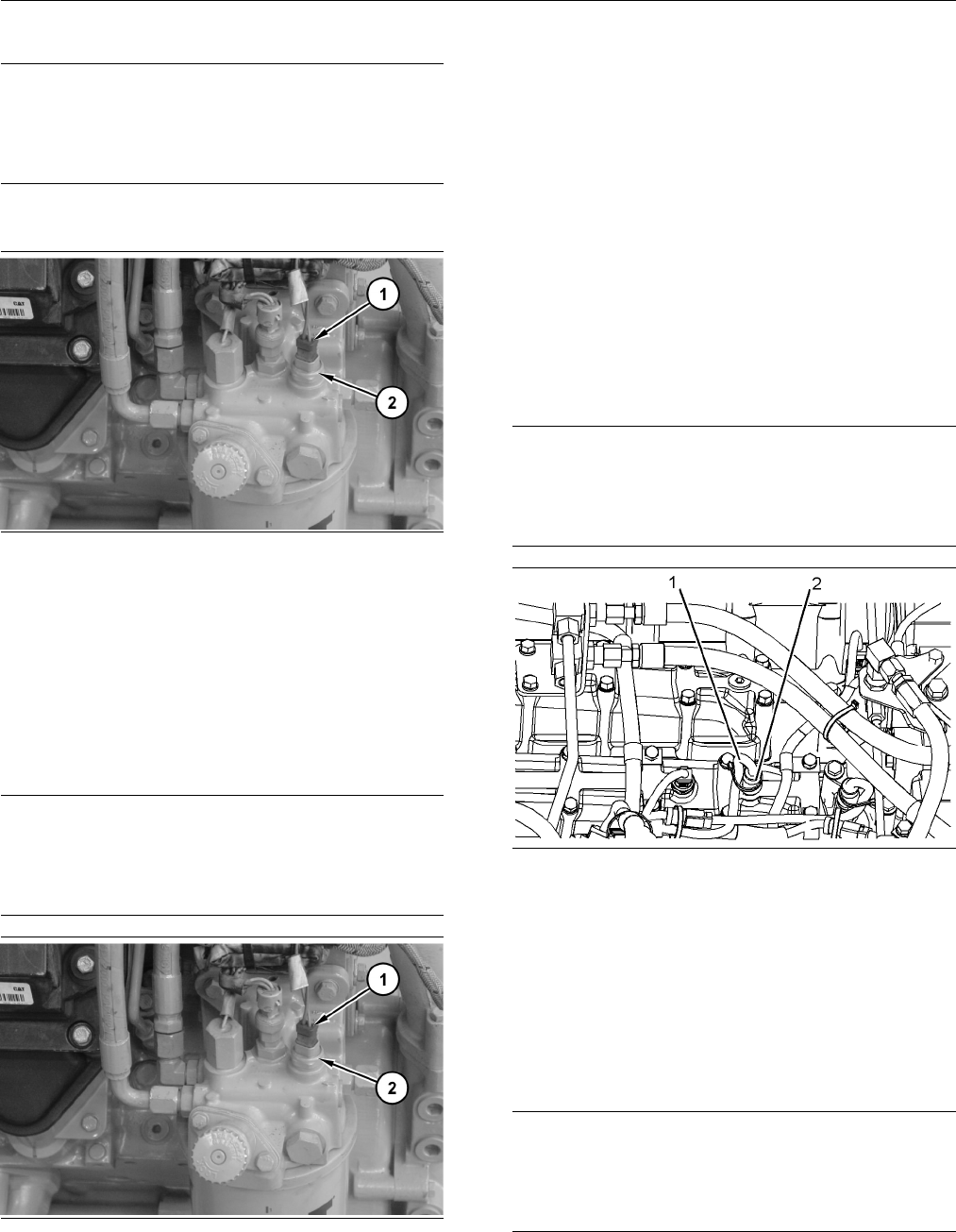

g01292826
Illustration 276
2. Disconnect harness assembly (1).
3. Remove fuel t
emperature sensor (2) from the fuel
filter base.
4. Remove the O-
ring seal from fuel temperature
sensor (2).
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminant
s may cause rapid wear and shortened
component life.
g01292826
Illustration 277
1. Install a new O-ring seal on fuel temperature
sensor (2).
2. Install fuel temperature sensor (2). Tighten fuel
temperature se
nsor (2) to a torque of 20 ± 5 N·m
(15±4lbft).
3. Connect harne
ss assembly (1).
4. Turn the fuel supply valve to the ON position.
i02449930
Turbocharger Outlet Pressure
Sensor - R em ove an d Install
SMCS Code: 1917-010
Removal Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01223056
Illustration 278
1. Disconnect
harness assembly (1).
2. Remove turbocharger outlet pressure sensor (2)
from the inl
et manifold.
3. Remove the O-ring seal from turbocharger outlet
pressure s
ensor (2).
Installat
ion Procedure
NOTICE
Keep all pa
rts clean from contaminants.
Contaminants may cause rapid wear and shortened
component
life.
