C27 and C32 Generator Sets Engines Disassembly and Assembly Page 58

Disassembly and Assembly
58 RENR9716-02
Disassembly and Assembly Section

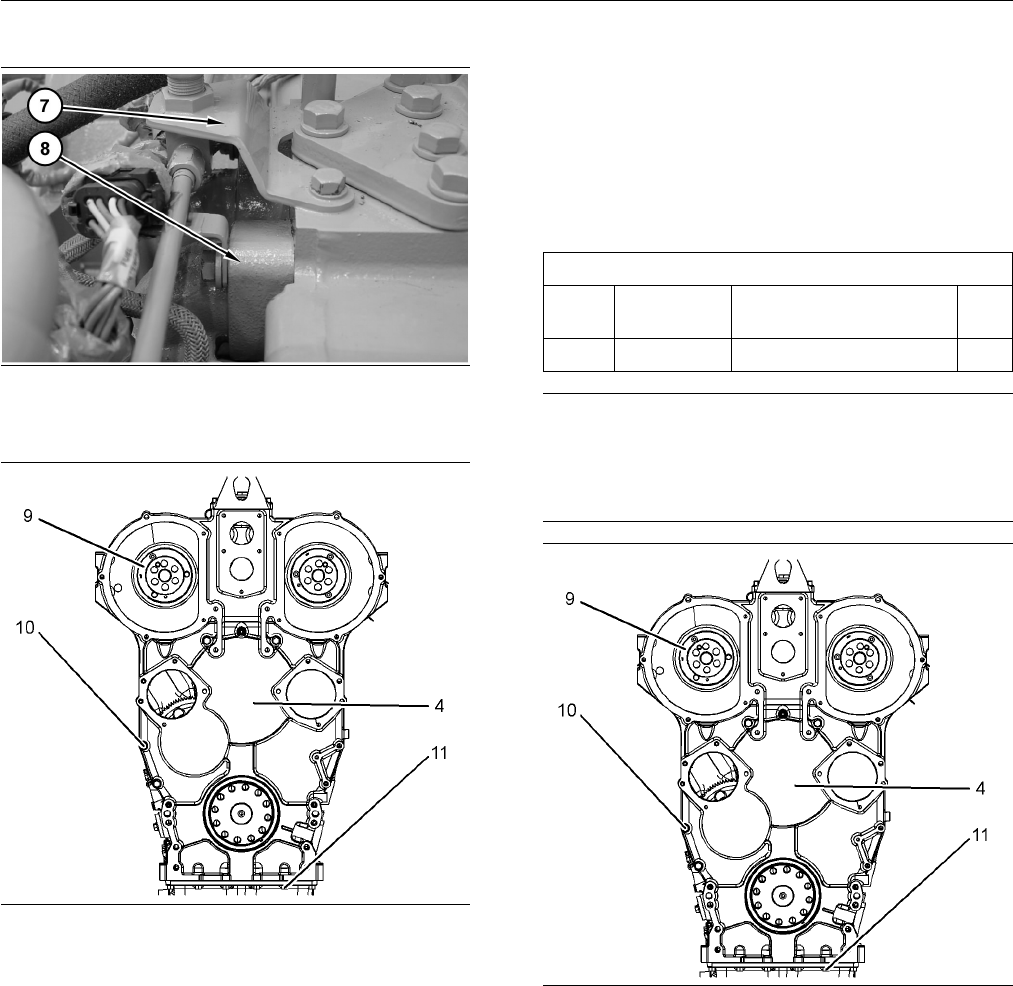

g01221953
Illustration 171
5. Disconnect bracket (7) and elbows (8).
g01221955
Illustration 172
6. Remove adapters (9).
7. Attach a suitable lifting device to front housing (4).
The weight of front housing (4) is approximately
70 kg (155 lb).
8. Remove bolts (10) and bolts (11).
9. Remove front housing (4) and the gasket.
i02445708
Housing (Front) - Ins tall
SMCS Code: 1151
-012
Installation P
rocedure
Table 44
Required Tools
Tool
Part
Number Part Description Qty
A 4C-9612
Silicone Sealant 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01221955
Illustration 173
1. Apply Tooling (A) to the bottom of front housing
(4) at the junction of the cylinder block and the
engine oil p
an.
2. Attach a suitable lifting device to front housing (4).
The weight
of front housing (4) is approximately
70 kg (155 lb). Position the gasket and front
housing (4) on the dowel pins on the cylinder
block.
3. Install bolts (10) and bolts (11).
4. Trim the gasket between the front housing and the
cylinder block even with the bottom of the front
housing.
5. Install adapters (9).
