C27 and C32 Generator Sets Engines Disassembly and Assembly Page 12

Disassembly and Assembly
12 RENR9716-02
Disassembly and Assembly Section

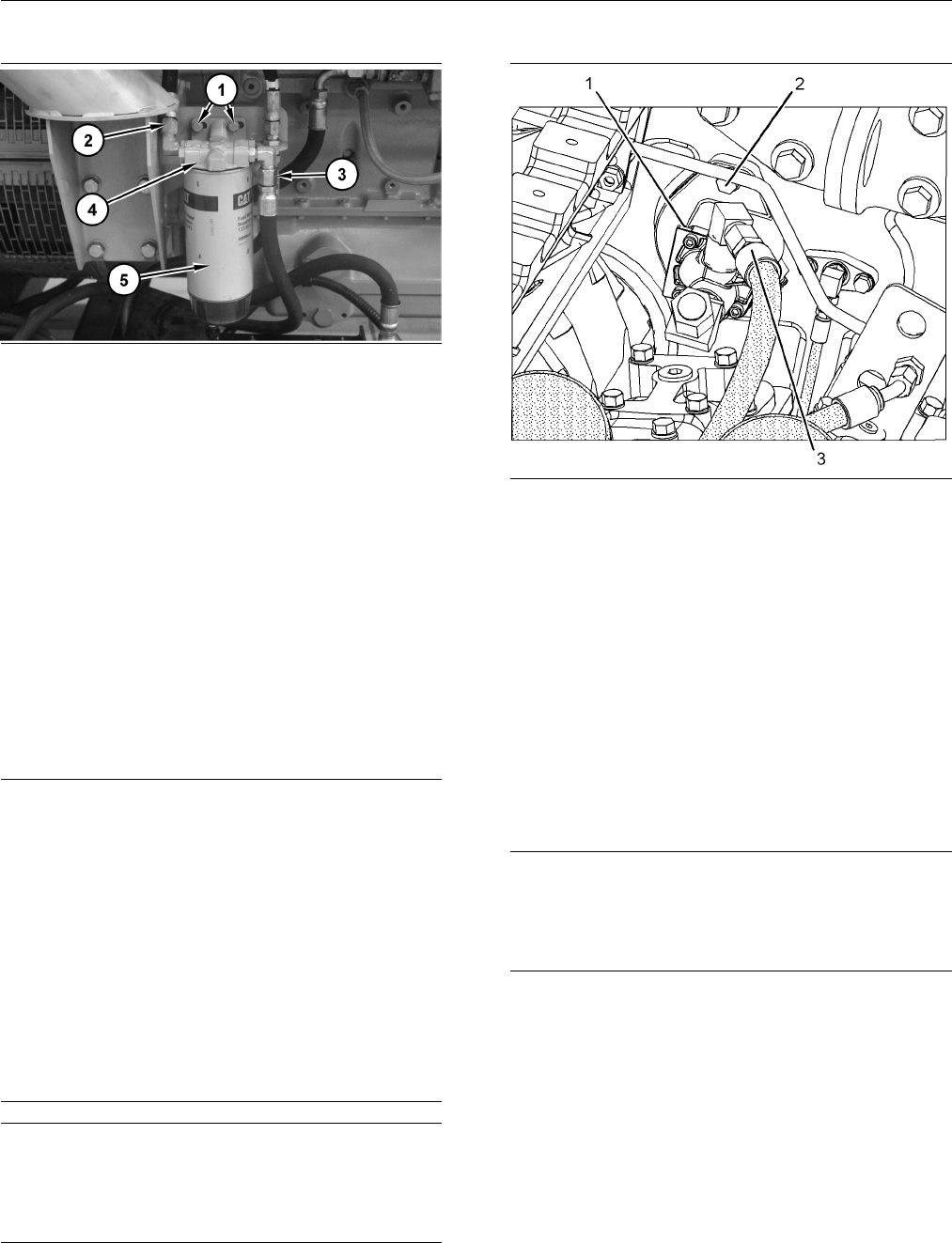

g01292832
Illustration 36
1. Position base assembly (4) on the cylinder block
and install bolts (1).
2. Connect hose assemblies (2) and (3).
3. Install a new fuel filter and water separator (5) on
base assembly (4).
4. Turn the fuel supply to the ON position.
i02285574
Fuel Transfer Pump - Remove
SMCS Code: 1256-011
Removal Procedure
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjust
ing and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent conta
ining fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Tools and S
hop Products Guide” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. Turn the fu
el supply to the “OFF” position.
g01143748
Illustration 37
2. Disconnect hose assemblies (3).
3. Remove bolts ( 2).
4. Remove fuel transfer pump (1) and the O-ring
seal.
i02287501
Fuel Transfer Pump - Install
SMCS Code: 1256-012
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
