C27 and C32 Generator Sets Engines Disassembly and Assembly Page 62

Disassembly and Assembly
62 RENR9716-02
Disassembly and Assembly Section

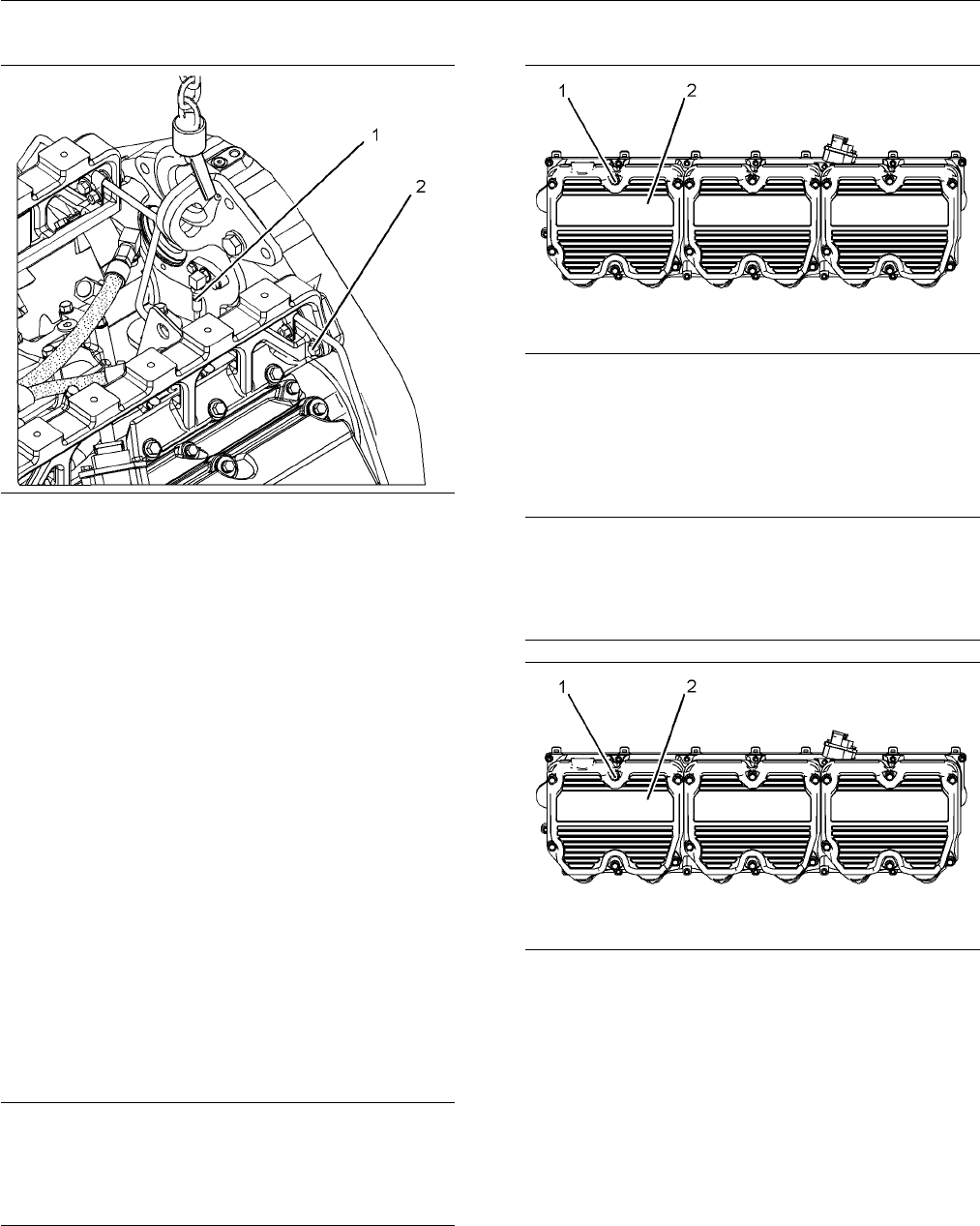

g01147132
Illustration 182
6. Install bolts (2).
7. Connect hose assembly (1).
8. Install the bolts that hold the engine oil pan to the
rear housing.
9. Tighten all the bolts that hold the engine oil pan
evenly in order to raise the engine oil pan into
position.
End By:
a. Install the rear gear group. Refer to Disassembly
and Assembly, “Gear Group (Rear) - Install”.
i02293132
Valve M ech anism Cover -
Remove and I nstall
SMCS Code: 1107-010
Removal Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01147941
Illustration 183
1. Remove bolts (1) and valve mechanism covers
(2).
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01147941
Illustration 184
1. Position v
alve mechanism covers (2) on the valve
mechanism cover base. Install bolts (1).
i02293148
Valve Mech an ism Cover Base -
Remove and Install
SMCS Code: 1120-010
Removal Procedure
Start By:
a. Remove the valve mechanism cover. Refer to
Disassembly and Assembly, “Valve Mechanism
Cover - Remove and Install”.
