C27 and C32 Generator Sets Engines Disassembly and Assembly Page 69

Disassembly and Assembly
RENR9716-02 69
Disassembly and Assembly Section
g01148791
Illustration 2 0 3
1. Install the gaskets, O-ring seals, and the spacer
plate on the engine.
2. AttachTooling(A)andasuitableliftingdeviceto
cylinder head (25). Attach Tooling (B) to the side
of cylinder head (25) that is near the turbocharger.
The weight of cylinder head (25) is approximately
365kg(800lb).
3. Position cylinder head (25) on the dowel pins in
the cylinder block.
Note: Apply Tooling (C) to the bolt threads and
both sides of the washers. Tighten the bolts in the
following step sequence:
4. Install bolts (26) and bolts (27) according to the
following procedure.
a. In a numerical sequence, tighten Bolt (1)
through Bolt (26) to a torque of 270 ± 15 N·m
(199 ± 11 lb ft).
b. In a numerical sequence, tighten Bolt (1)
through Bolt (26) to a torque of 450 ± 15 N·m
(332 ± 11 lb ft).
c. In a numerical sequence, again tighten Bolt (1)
through Bolt (26) to a torque of 450 ± 15 N·m
(332 ± 11 lb ft).

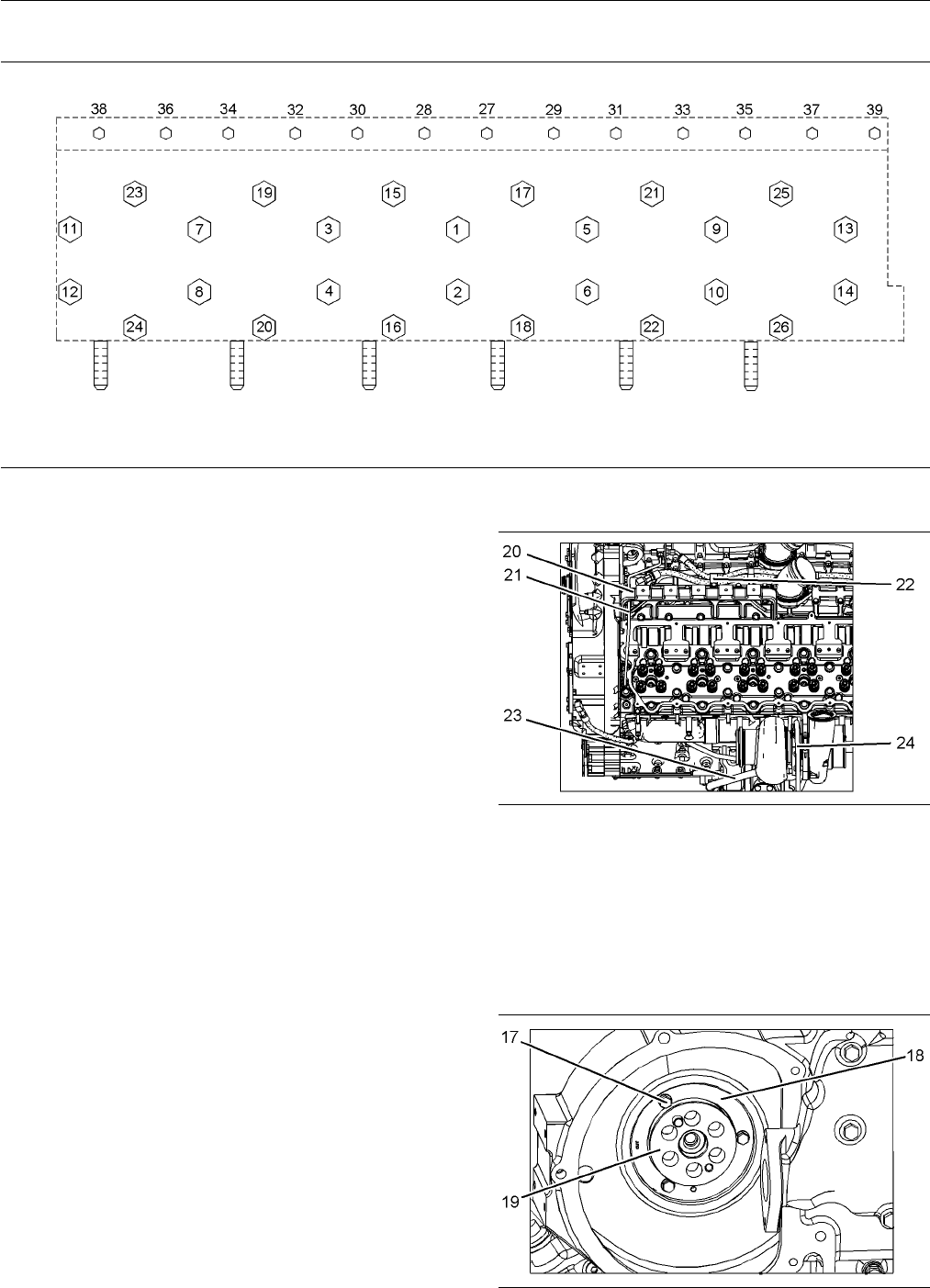

d. In a numerical sequence, tighten Bolt (27)
throughBolt(39)toatorqueof45±7N·m
(33±5lbft).
g01148522
Illustration 204
5. Connect tube assembly (23) and install tube
assembly (24).
6. Install bracket (20).
7. Connect clip assembly (22). Install t ube
assemblies (21).
g01148516
Illustration 205
