C27 and C32 Generator Sets Engines Disassembly and Assembly Page 53

Disassembly and Assembly
RENR9716-02 53
Disassembly and Assembly Section
End By:
a. Install the electric starting motor. Refer to
Disassembly and Assembly, “Electric Starting
Motor - Remove
and Install”.
b. Install the crankshaft rear seal. Refer to
Disassembly a
nd Assembly, “Crankshaft Rear
Seal - Install”.
i02443805
Vibration Da mper and Pulley -
Remove and I nstall
SMCS Code: 1205-010
Removal Procedure
Table 40
Required Tools
Tool
Part
Number Part Descrip
tion
Qty
A
-
Guide Stud
1/2 - 13 NC by 5 i nch
2

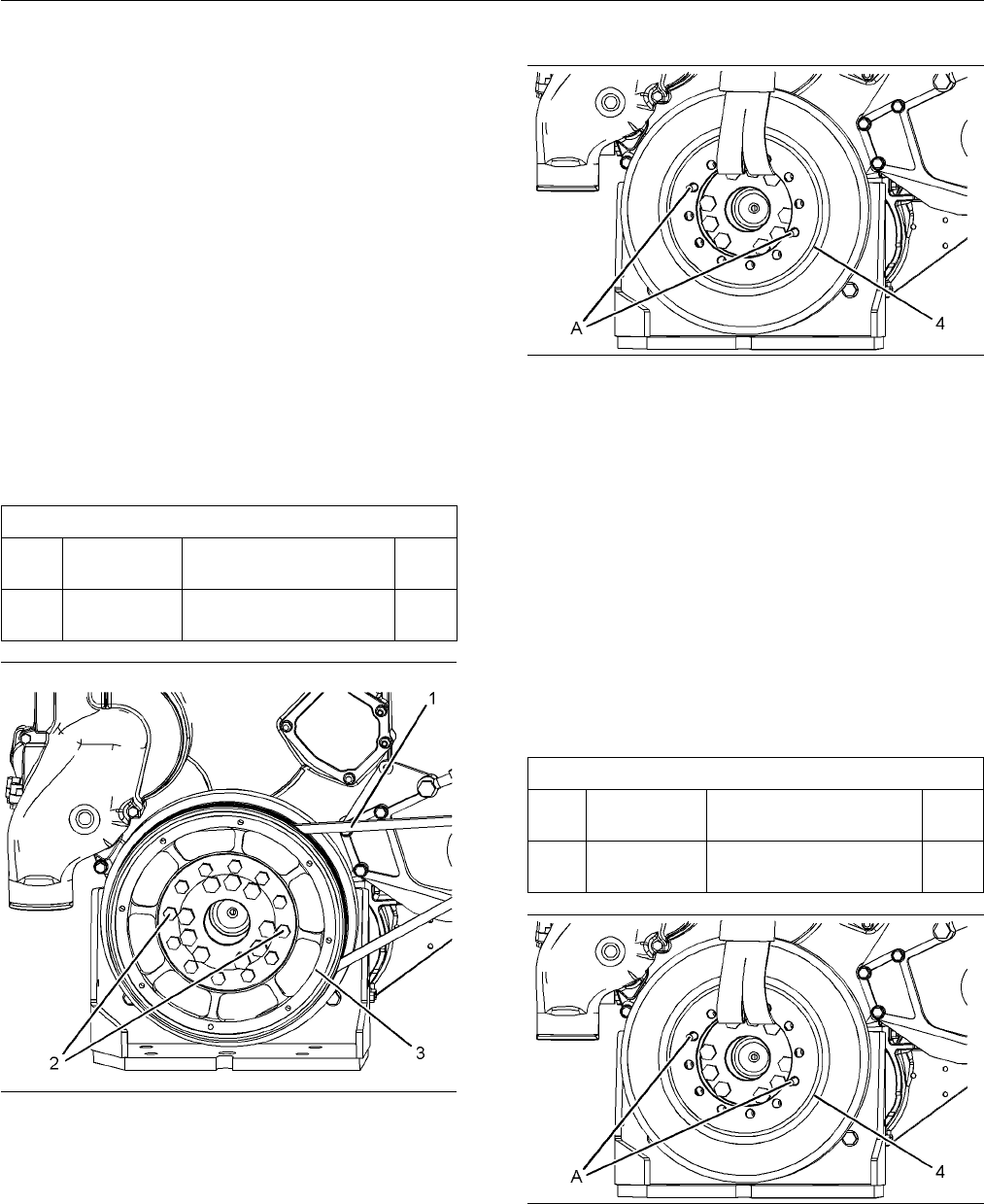

g0122106
6
Illustration 157
g01221078
Illustration 158
1. Remove V-belt (1) from the engine.
2. Remove two bolts (2) and install Tooling (A).
3. Remove remaining bolts (2) and pulley (3).
4. Slide vibration damper (4) along Tooling (A).
5. Attach a suitable lifting device onto vibration
damper (4). The weight of vibration damper (4)
is approximately 34 kg (75 lb). Remove vibration
damper (4) from the adapter.
Installation Procedure
Table 41
Required Tools
Tool
Part
Number Part Description Qty
A
-
Guide Stud
1/2 - 13 NC by 5 i nch
2
g01221078
Illustration 159
