C27 and C32 Generator Sets Engines Disassembly and Assembly Page 95

Disassembly and Assembly
RENR9716-02 95
Disassembly and Assembly Section
Installation P
rocedure
NOTICE
Keep all parts c
lean from contaminants.
Contaminants may cause rapid wear and shortened
component life
.
g01150731

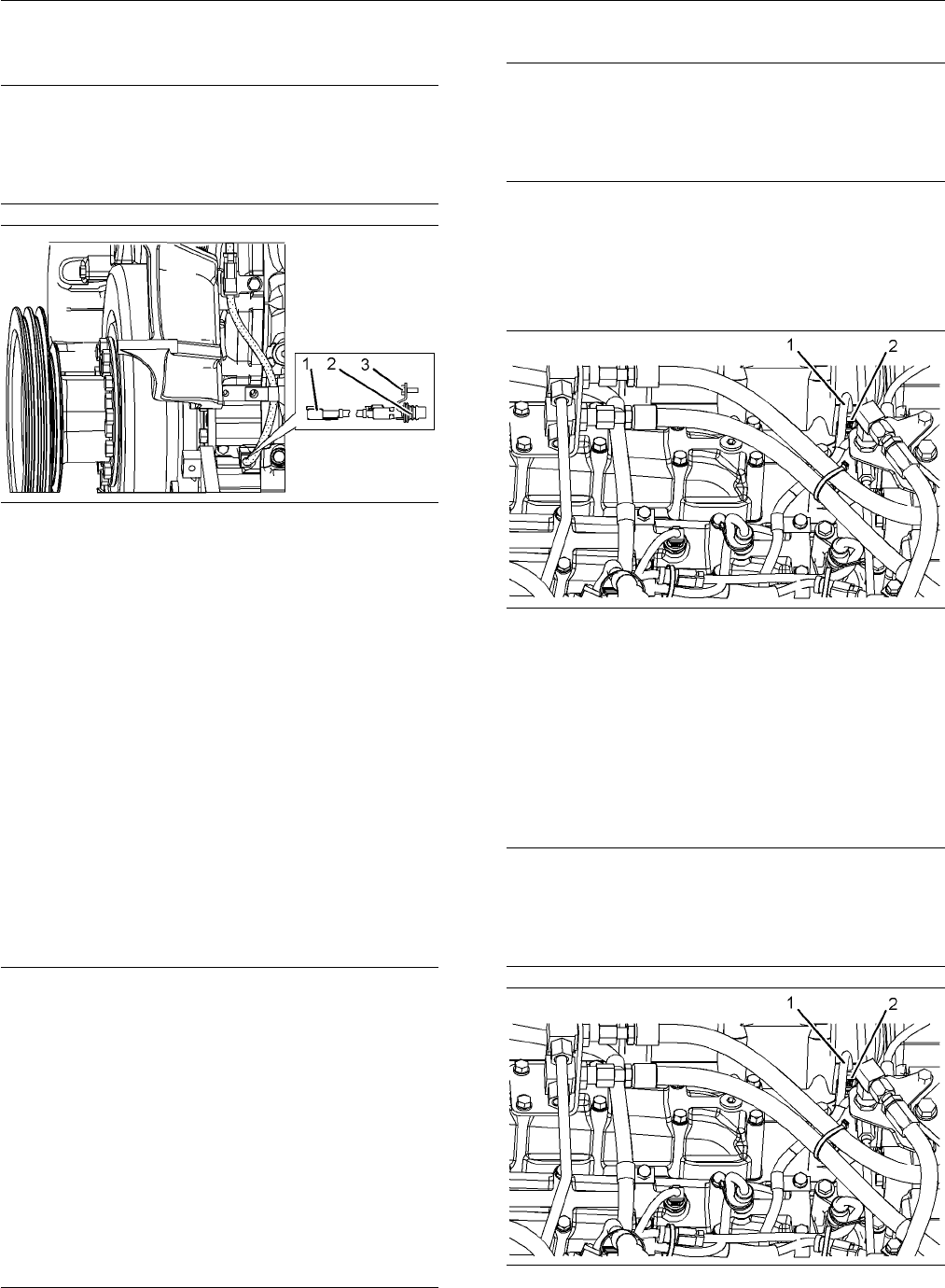

Illustration 269
1. Install a new O-ring seal on crankshaft position
sensor (2). Lubricate the O-ring seal with clean
engine oil.
2. Install crankshaft position sensor (2) in the front
housing. Install bolt (3). Tighten bolt (3) to a torque
of 28 ± 7 N·m (21 ± 5 lb ft).
3. Connect harness assembly (1).
i02449857
Coolant Tem
perature Se nsor -
Remove and I nstall
SMCS Code:
1906-010
Removal Pr
ocedure
NOTICE
Care must be
taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect th
e fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Dealer Service Tool Catalog” for tools and supplies
suitable
to collect and contain fluids on Caterpillar
products.
Dispose o
fallfluids according to local regulations and
mandates.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. Drain the coolant from the cooling system to a
level below the coolant temperature sensor into a
suitable container for storage or disposal. Refer
to Operation and Maintenance Manual, “Cooling
System Coolant - Change”.
g01222981
Illustrati
on 270
2. Disconnect harness assembly (1).
3. Remove coolant temperature sensor (2).
4. Remove the O
-ring seal from coolant temperature
sensor (2).
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminan
ts may cause rapid wear and shortened
component life.
g01222981
Illustration 271
