C27 and C32 Generator Sets Engines Disassembly and Assembly Page 31

Disassembly and Assembly
RENR9716-02 31
Disassembly and Assembly Section
i02440626
Water Pump - Remove
SMCS Code: 1361
-011
Removal Proced
ure
NOTICE
Care must be tak
en to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the flu
id with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Dealer Service Tool Catalog” for tools and supplies
suitable to co
llect and contain fluids on Caterpillar
products.
Dispose of al
l fluids according to local regulations and
mandates.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. Drain the coolant from the cooling system into a
suitable con
tainer for storage or disposal. Refer
to Operation and Maintenance Manual, “Cooling
System Coolant - Change”.

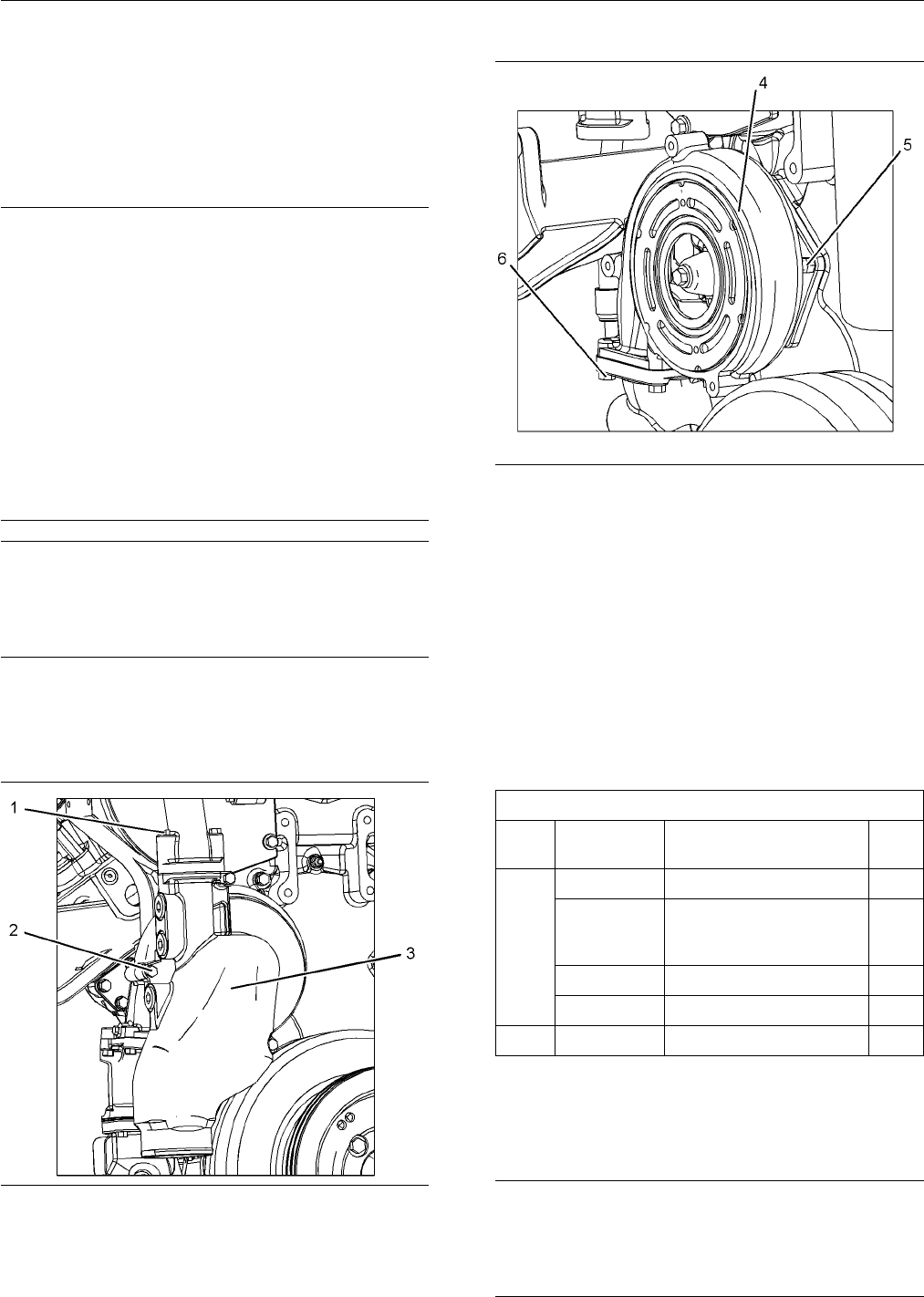

g01219274
Illustration 77
2. Remove bolts (1) and bolts (2).
3. Remove cover (3).
g01219275
Illustration 78
4. Remove bolts (6) and nuts (5).
5. Remove water pump (4).
i02451192
Water Pump - Disassemb le
SMCS Code: 1361-015
Disassembly Procedure
Table 23
Required Tools
Tool
Part
Number Part Description Qty
8S-2264
Puller Group
1
4B-3903
Bolt
5/16 - 18 NC
by 4
inch
2
1P-0456
Plate 1
A
4B-4277
Washer 2
B
1P-0510
Driver Group
1
Start By:
a. Remove the water pump. Refer to Disassembly
and Assembly, “Water Pump - Remove”.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
