C27 and C32 Generator Sets Engines Disassembly and Assembly Page 34

Disassembly and Assembly
34 RENR9716-02
Disassembly and Assembly Section
g01219336

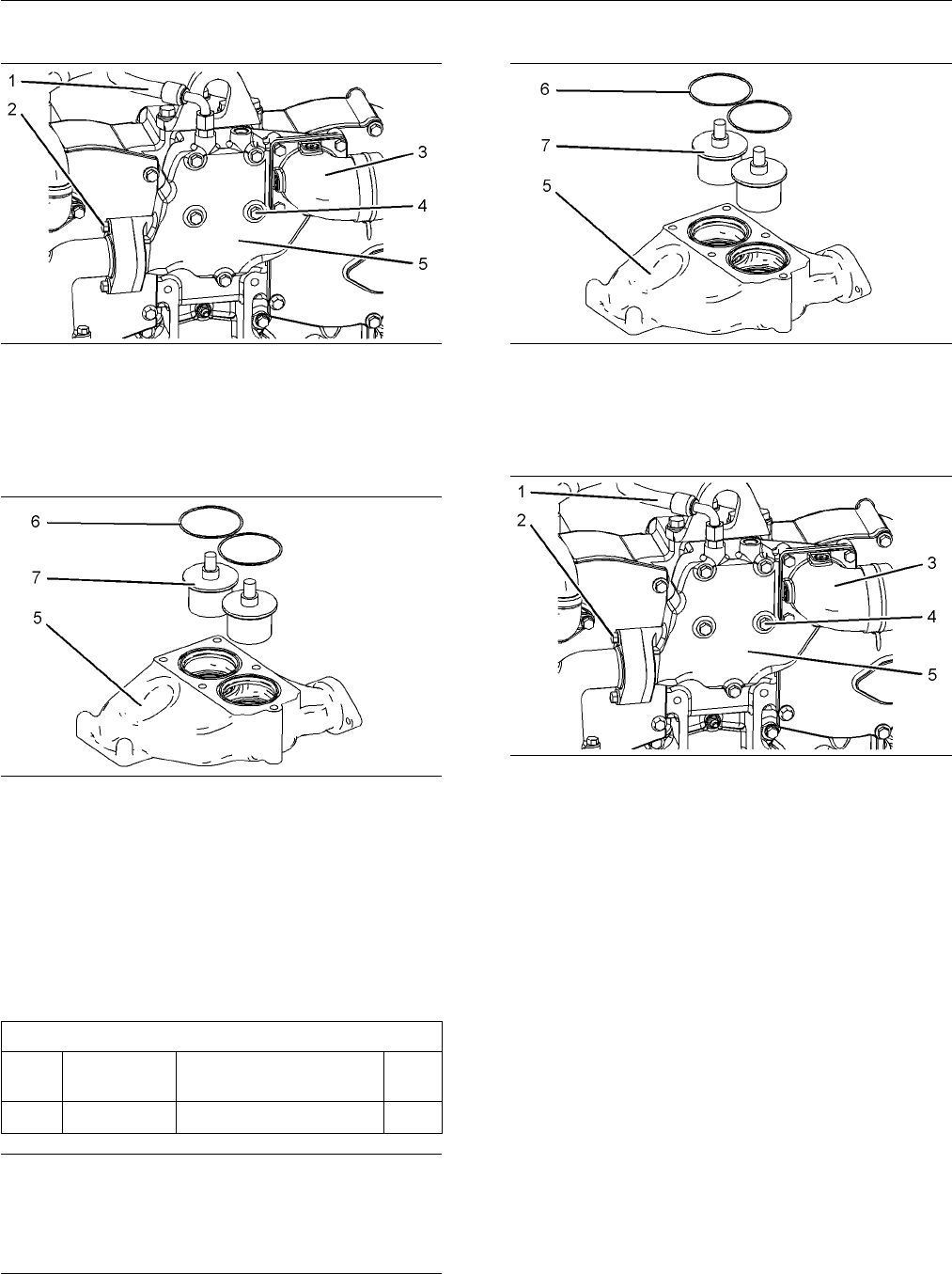

Illustration 83
2. Disconnect hose assembly (1) and elbow (3).
3. Remove bolts (2) and bolts (4). Remove water
temperature regulator housing (5).
g01223744
Illustration 84
4. Remove O-ring seals (6) and water temperature
regulators (7) from water temperature regulator
housing (5
).
5. If necessary, remove the lip seals.
Installation Procedure
Table 25
Required T
ools
Tool
Part
Number Part Description Qty
A
221-8647
Seal Installer Gp 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. If necessary, use Tooling (A) to install the lip seals.
g01223744
Illustration 85
2. Install water temperature regulators (7) and O-ring
seals (6) in water temperature regulator housing
(5).
g01219336
Illustration 86
3. Position w
ater temperature regulator housing (5)
on the engine. Install bolts (4) and bolts (2).
4. Connect el
bow (3) and hose assembly (1).
5. Fill the cooling system. Refer to Operation and
Maintena
nce Manual, “Cooling System Coolant
- Change”.
