C27 and C32 Generator Sets Engines Disassembly and Assembly Page 78

Disassembly and Assembly
78 RENR9716-02
Disassembly and Assembly Section
i02447352
Engine Oil P an - R emo ve and
Insta ll
SMCS Code: 1302-010
Removal Procedure
Table 54
Required Tools
Tool
Part
Number Part Descript
ion
Qty
A
1U-7505
Hydraulic Jack 1
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Dealer Service Tool Catalog” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
NOTICE
Keep all parts clean from contaminants.
Contaminant
s may cause rapid wear and shortened
component life.
1. Drain the engine oil into a suitable container
for storage or disposal. Refer to Operation and
Maintenance Manual, “Engine Oil and Filter -
Change”.

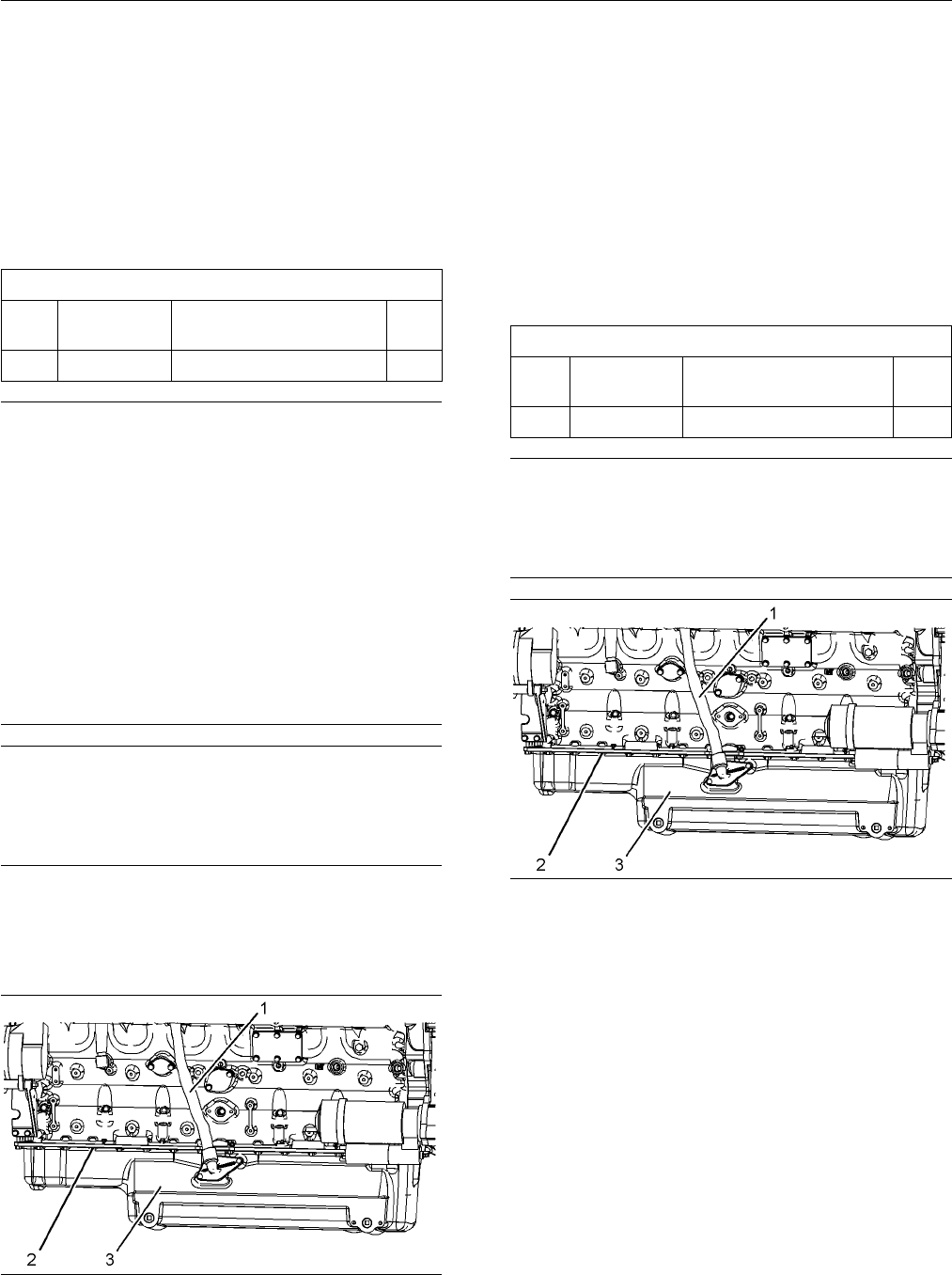

g01222524
Illustration 237
2. Remove tube assemblies (1) from engine oil pan
(3).
3. Use Tooling (A) to support engine oil pan (3). The
weight of engi
ne oil pan (3) is approximately 25 kg
(55 lb).
4. Remove bolts (
2). Remove engine oil pan (3) and
the gasket.
Installation Procedure
Table 55
Required Tools
Tool
Part
Number Part Descript
ion
Qty
A
1U-7505
Hydraulic Jack 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01222524
Illustrati
on 238
1. Use Tooling (A) to support engine oil pan (3). The
weight of en
gine oil pan (3) is approximately 25 kg
(55 lb).
2. Position th
e gasket and engine oil pan (3) on the
engine. Install bolts (2).
Note: If the
oil drain plugs were removed, install the
oil drain plugs. Tighten the oil drain plugs to a torque
of80±10N·m(59±7lbft).
3. Install tube assemblies (1) on engine oil pan (3).
4. Fill the en
gine with engine oil to the correct level.
Refer to Operation and Maintenance Manual,
“Engine Oil and Filter - Change”.
