C27 and C32 Generator Sets Engines Disassembly and Assembly Page 94

Disassembly and Assembly
94 RENR9716-02
Disassembly and Assembly Section

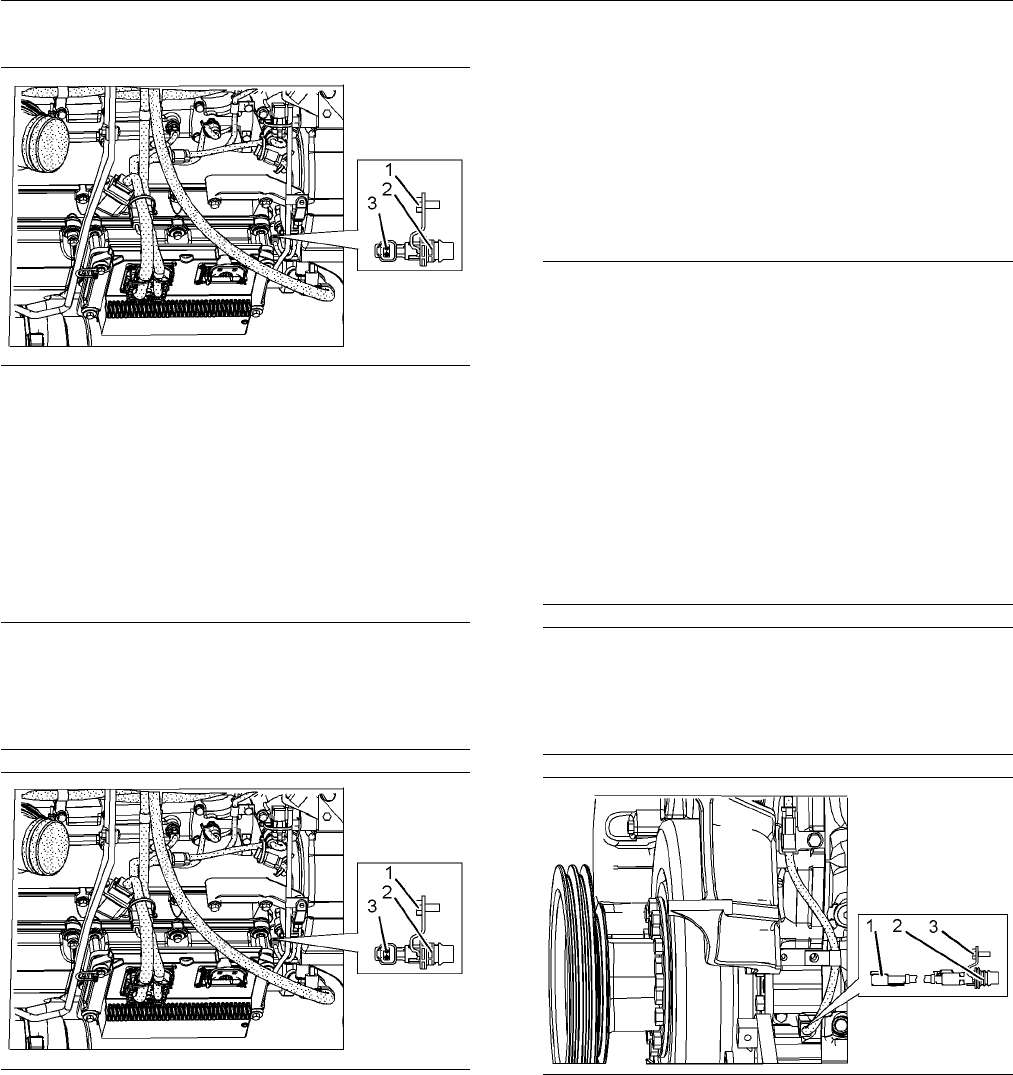

g01150693
Illustration 266
1. Disconnect harness assembly (3).
2. Remove bolt (1) and camshaft position sensor (2).
3. Remove the O-ring seal from camshaft position
sensor (2).
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01150693
Illustration 267
1. Install a new O-ring seal on camshaft position
sensor (2). Lubricate the O-ring seal with clean
engine oil
.
2. Position camshaft position sensor (2) in the front
housing an
d install bolt (1). Tighten bolt (1) to a
torque of 28 ± 7 N·m (21 ± 5 lb ft).
3. Connect h
arness assembly (3).
i02297803
Crankshaft Position Sensor -
Remove and Install
SMCS Code: 1912-010
Removal Procedure
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjustin
g and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containi
ng fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Tools and Shop
Products Guide” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01150731
Illustration 268
1. Disconnect
harness assembly (1).
2. Remove bolt (3) and crankshaft position sensor
(2).
3. Remove the O-ring seal from crankshaft position
sensor (2)
.
