C27 and C32 Generator Sets Engines Disassembly and Assembly Page 10

Disassembly and Assembly
10 RENR9716-02
Disassembly and Assembly Section
Installation P
rocedure

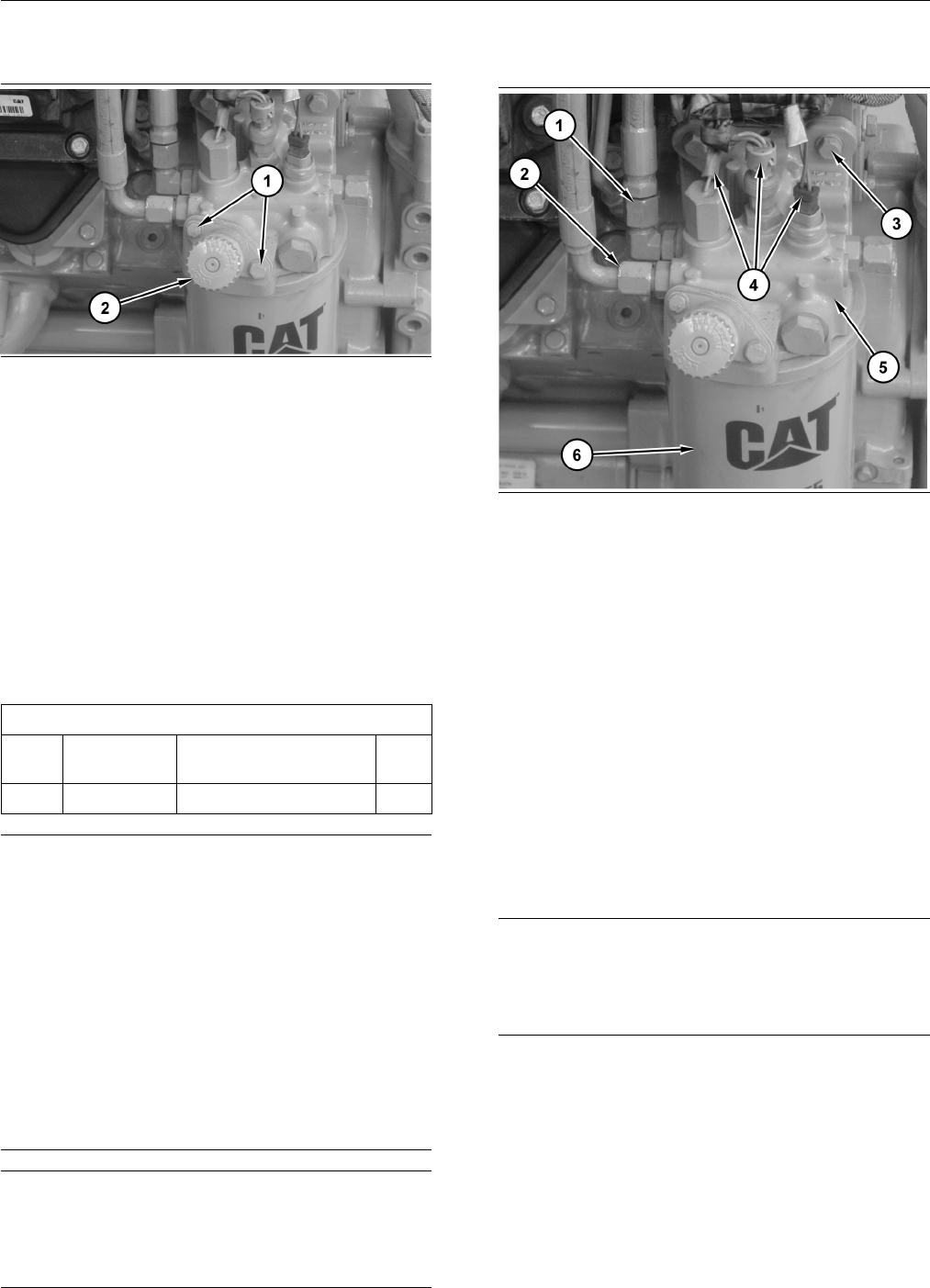

g01292755
Illustration 32
1. Position the gasket and fuel priming pump (2) on
the fuel filter base.
2. Install bolts (1).
i02580993
Fuel Filter B ase - Remove
SMCS Code: 1
262-011
Removal Pro
cedure
Table 3
Required Tools
Tool
Part
Number Part Description Qty
A
185-3630
Strap Wrench 1
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Dealer Service Tool Catalog” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. Turn the fuel supply to the OFF position.
g01292764
Illustration 33
2. Use Tooling (A) to remove fuel filter (6) from fuel
filter base (5).
3. Disconnect harness assemblies (4).
4. Disconnect hose assembly (1) and hose assembly
(2).
5. Remove bolts (3) and fuel filter base (5).
i02581008
Fuel Filter Base - Install
SMCS Code: 1262-012
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
