C27 and C32 Generator Sets Engines Disassembly and Assembly Page 32

Disassembly and Assembly
32 RENR9716-02
Disassembly and Assembly Section
Note: The water pump seal can be replaced without
removing the wa
ter pump from the engine.
Note: An intermittent leakage of a small amount of
coolant from t
he hole in the water pump housing is
not an indication of a w ater pump seal failure. This
is required to provide lubrication for the seal. Do not
replace the w
ater pump seal unless a large amount
of leakage or a constant flow of coolant is draining
from the water pump housing.

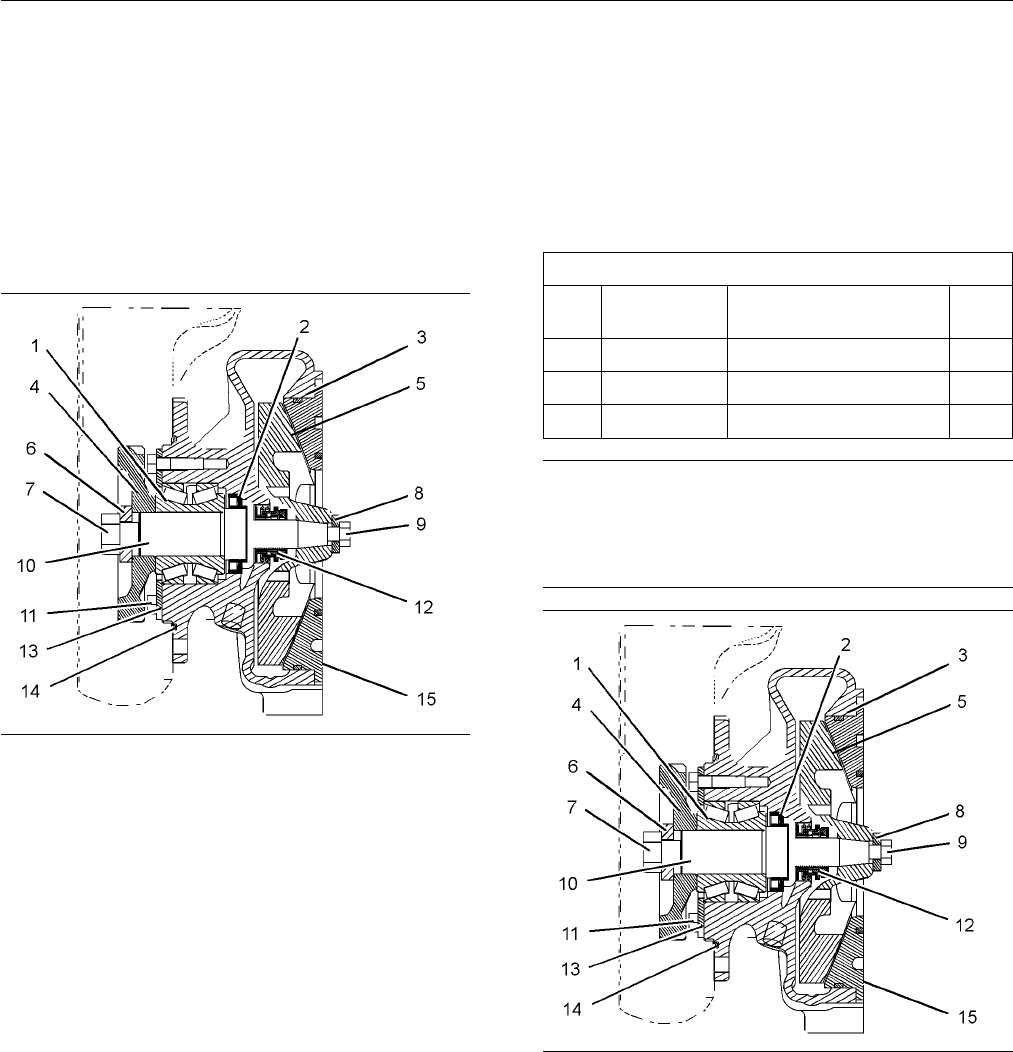

g01195730
Illustration 79
1. Remove adapter (15).
2. Remove bolt (9) and washer (8).
3. Use Tooling (A) to remove impeller (5) from shaft
(10).
4. Remove bolt (7), washer (6), and gear (4) from
shaft (10).
5. Remove bolts (11) and retainer (13).
6. Remove O-ring seal (14) from housing (3).
7. Use a suitable press to remove shaft (10) and
bearing assembly (1) from housing (3).
8. Use a suitable press to remove bearing assembly
(1) from shaft (10).
9. Remove seal assembly (12) from housing (3).
10. Use Tooling (B) to remove lip seal (2) from the
housing.
i02394663
Water Pump - Assemble
SMCS Code: 1361
-016
Assembly P roce
dure
Table 24
Required Tools
Tool
Part
Number Part De scription Qty
B
1P-0510
Driver Group 1
C
7N-7843
Seal Installation Tool 1
D
6V-1541
Quick Cure Primer 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01195730
Illustration 80
1. Use Tooling (B) to install lip seal (2) into the
housing.
2. Apply Tooling (D) to shaft (10). Use a suitable
press to install bearing assembly (1) on shaft (10).
3. Install shaft (10) and bearing assembly (1) in
housing (3).
4. Install O-ring seal (14) on housing (3).
5. Install retainer (13) and bolts (11).
6. Position gear (4) on shaft (10). Install washer (6)
and bolt (7).
