C27 and C32 Generator Sets Engines Disassembly and Assembly Page 27

Disassembly and Assembly
RENR9716-02 27
Disassembly and Assembly Section
End By:
a. Install the engine oil filter base. Refer to
Disassembly and Assembly, “Engine Oil Filter
Base - Install
”.
i02438813
Engine Oil Fil
ter Base - Install
SMCS Code: 1306-012
Installation Procedure
Table 20
Required Tools
Tool
Part
Number Part Description Qty
A
185-3630
Strap Wrench A
s1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01218560

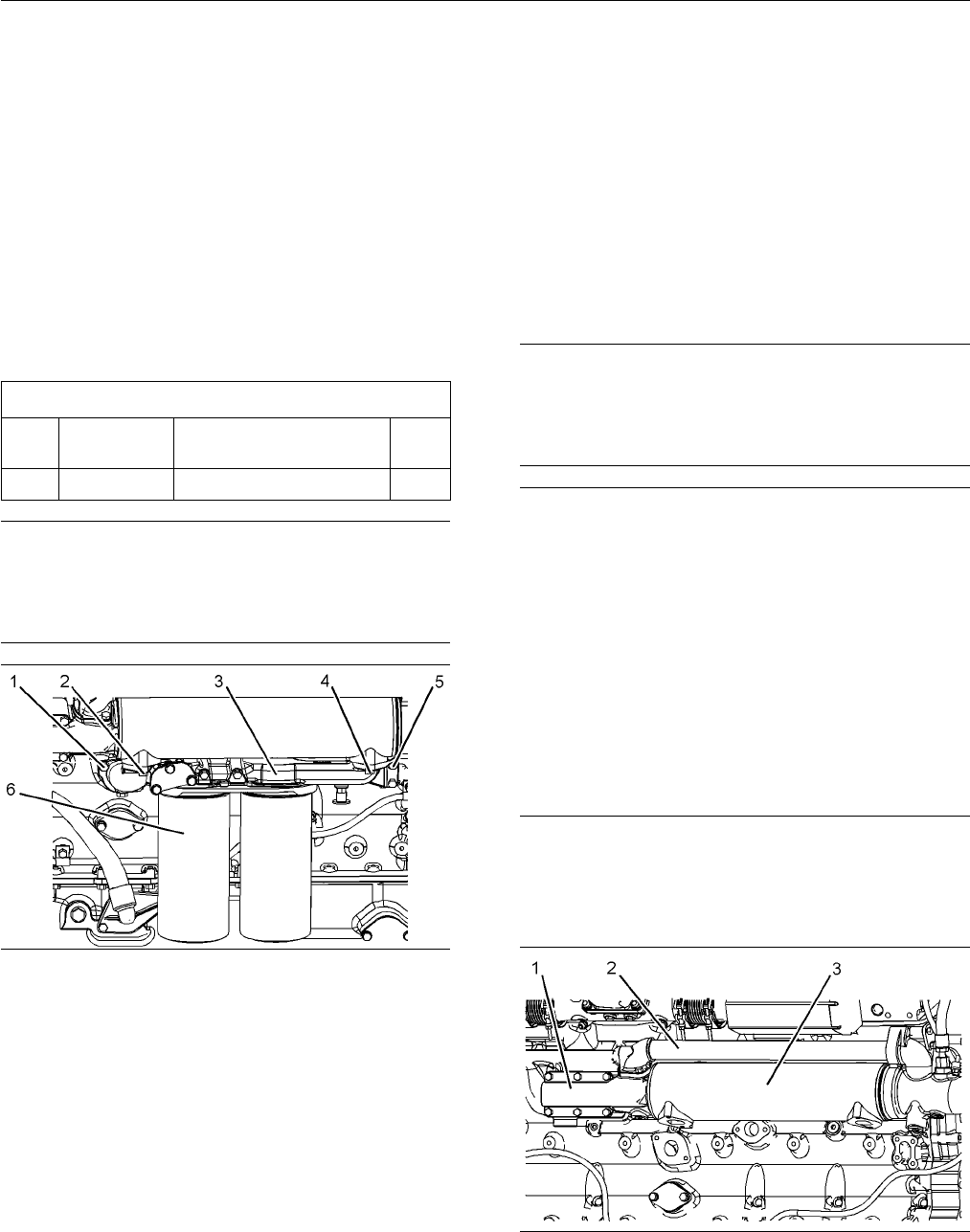

Illustration 68
1. Position en
gine oil filter base (3) on the engine
oil cooler.
2. Install bol
ts (1), (2), (4), and (5).
3. Use Tooling (A) to install engine oil filters (6).
4. Re fill the engine with engine oil. Refer to Operation
and Maintenance Manual, “Engine Oil and Filter
- Change”.
i02438849
Engine Oil Cooler - Remove
SMCS Code: 1378
-011
Removal Proced
ure
Start By:
a. Remove the engine oil filter base. Refer to
Disassembly and Assembly, “Engine Oil Filter
Base - Remove”
.
NOTICE
Keep all parts clean from contaminants.
Contaminants
may cause rapid wear and shortened
component life.
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjustin
g and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent contain
ing fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Dealer Servi
ce Tool Catalog” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
1. Drain the co
olant from the cooling system into a
suitable container for storage or disposal. Refer
to Operation and Maintenance Manual, “Cooling
System Cool
ant - Change”.
g01218689
Illustration 69
2. Remove tube assembly (2).
3. Remove bonnet (1) and the gasket.
