C27 and C32 Generator Sets Engines Disassembly and Assembly Page 18

Disassembly and Assembly
18 RENR9716-02
Disassembly and Assembly Section

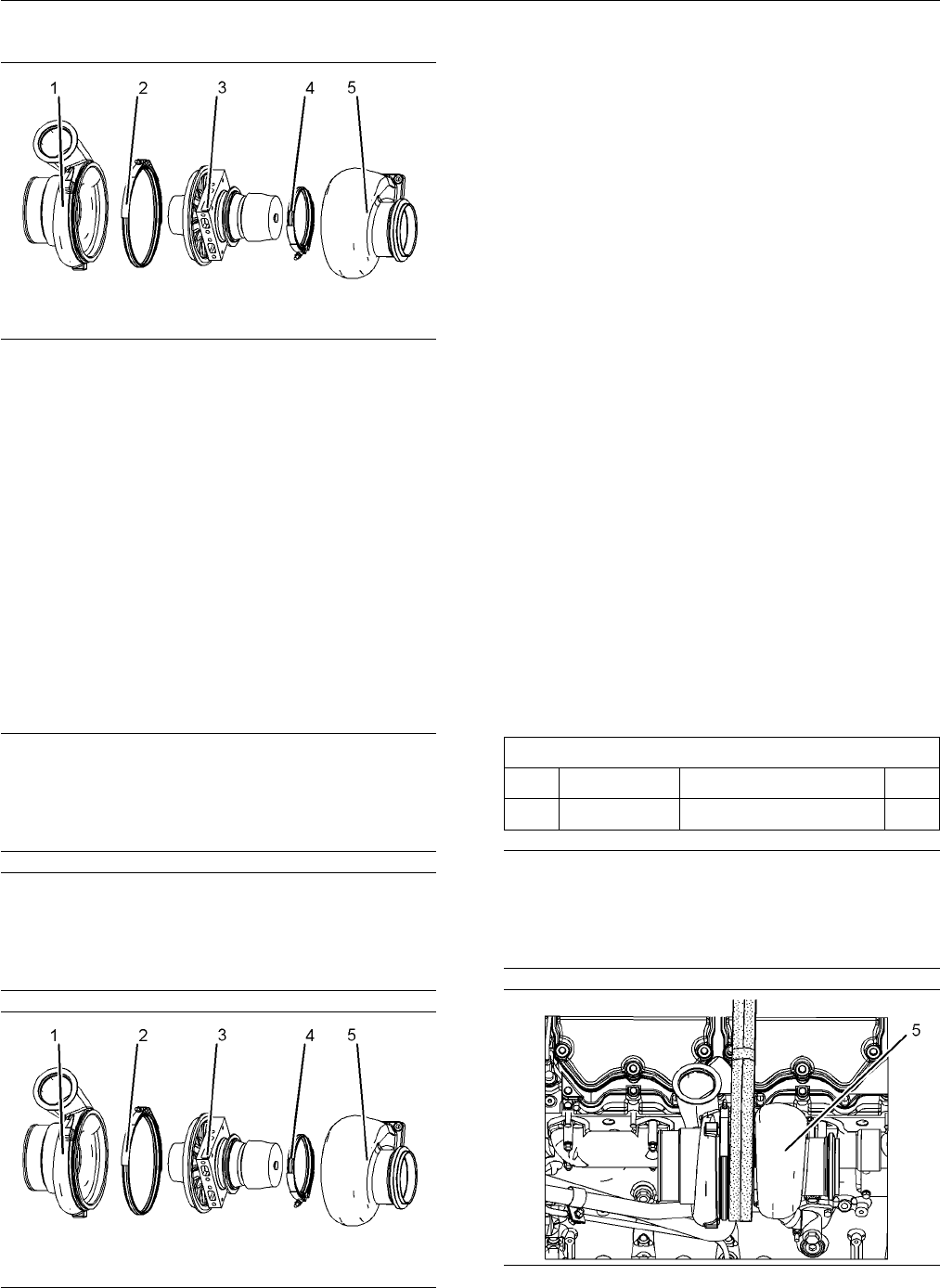

g01145263
Illustration 49
1. Loosen V-band clamp (2) and V-band clamp (4).
2. Separate compressor housing (1) from
turbocharger cartridge (3).
3. Separate turbine housing (5) from turbocharger
cartridge (3).
i02451256
Turbocharg
er - Assemb le
SMCS Code: 1052-016
Assembly Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminan
ts may cause rapid wear and shortened
component life.
NOTICE
The compressor housing must remain straight with
the turbocharger cartridge during disassembly and as-
sembly. Til
ting may cause damage to the tips of the
compressor wheel and the compressor shaft.
g01145263
Illustration 50
1. Position compressor housing (1) and turbine
housing (5) on t
urbocharger cartridge (3).
Note: Ensure that the mating surfaces are flush.
2. Tighten the nuts on V-band clamp (2) to a torque
of 14 ± 1 N·m (10 ± 1 lb ft). Use a soft hammer to
lightly hit ar
ound the diameter of the band clamp.
Tightenthenutsagaintoatorqueof14±1N·m
(10±1lbft).
3. Tighten the nuts on V-band clamp (4) to a torque
of 14 ± 1 N·m (10 ± 1 lb ft). Use a soft hammer to
lightly hit a
round the diameter of the band clamp.
Tightenthenutsagaintoatorqueof14±1N·m
(10±1lbft).
4. Ensure that the impeller spins freely.
End By:
a. Install the turbocharger. Refer to Disassembly and
Assembly, “
Turbocharger - Install”.
i02288273
Turbocharger - Install
SMCS Code: 1052-012
Installation Procedure
Table 9
Required Tools
Tool Part Number Part Description Qty
A 5P-3931
Anti-Seize Compound
1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01148173
Illustrat
ion 51
