C27 and C32 Generator Sets Engines Disassembly and Assembly Page 88

Disassembly and Assembly
88 RENR9716-02
Disassembly and Assembly Section

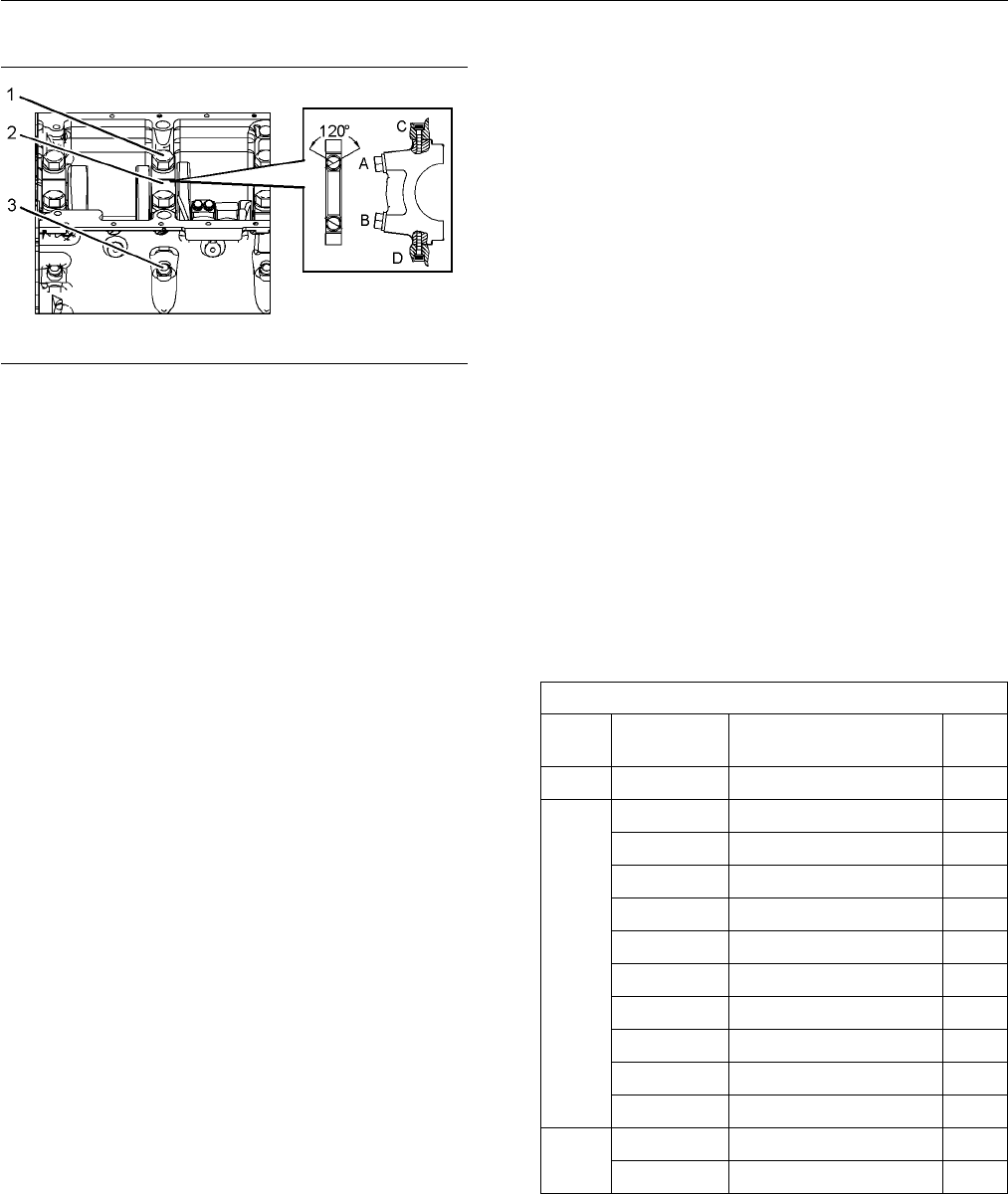

g01149987
Illustration 255
4. Position main bearing caps (2) on the crankshaft.
Note: Ensure that the numbers on the main bearing
caps match the numbers on the cylinder block. Also
ensure that the “FRONT” on the main bearing cap is
installed toward the front of the cylinder block.
5. Lubricate the threads of bolts (1) and bolts (3) with
clean e ngine oil. Install the bolts.
6. Tighten bolts (1) and bolts (3) for the main bearing
caps, as follows:
a. TightenBolt(A)toatorqueof258±14N·m
(190 ± 10 lb ft).
Note: Bolt (A) is on the bearing tab side of the main
bearing cap.
b. TightenBolt(B)toatorqueof258±14N·m
(190 ± 10 lb ft).
Note: Bolt (B) is on the opposite side of the bearing
tab of the main bearing cap.
c. Tighten Bolt (B) for an additional 120 ± 5
degrees (2 flats).
Note: If Tooling (C) is not used, place an index mark
on the bolt and the main bearing cap.
d. Tighten Bolt (A) for an additional 120 ± 5
degrees (2 flats).
Note: If Tooling (C) is not used, place an index mark
on the bolt and the main bearing cap.
e. TightenBolt(D)toatorqueof80±10N·m
(59±7lbft).
Note: Bolt (D) is on the opposite side of the bearing
tab of the main bearing cap.
f. TightenBolt(C)toatorqueof80±10N·m
(59±7lbft).
Note: Bolt (C) is on the bearing tab side of the main
bearing cap.
g. Rotate the crankshaft in order to ensure that
the crankshaf
t turns freely.
7. Use Tooling (B) to check the crankshaft end play.
Ensure that To
oling (B) is against a machined
surface. The end play is controlled by the thrust
plates of No. 4 main bearing (center).
Crankshaft end play (new thrust
plates) ...... 0.10 to 0.60 mm (0.004 to 0.024 inch)
End By:
a. Install the e
ngine oil pump. Refer to Disassembly
and Assembly, “Engine Oil Pump - Install”.
i02296738
Crankshaft - Remove
SMCS Code: 1202-011
Removal Procedure
Table 68
Required Tools
Tool
Part
Number Part Description Qty
A
138-7574
Link Bracket 2
1H-3110
Bearing Puller 1
8B-7560
Step Plate
1
9U-6600
Hand Hydraulic Pump 1
1H-3108
Push-Puller Leg 2
1H-3107
Bearing Puller 1
3H-0468
Puller Plate
5
3H-0465
Push-Puller Plate 2
1P-0820
Hydraulic Puller 1
5B-0637
Nut 1
B
8S-6586
Forcing Screw
1
5P-0944
Dowel Puller Group 1
C
5P-0939
Dowel Extractor 1
Start By:
a. Remove the front housing. Refer to Disassembly
and Assembly, “Housing (Front) - Remove”.
b. Remove the rear housing. Refer to Disassembly
and Assembly, “Housing (Rear) - Remove”.
