C27 and C32 Generator Sets Engines Disassembly and Assembly Page 11

Disassembly and Assembly
RENR9716-02 11
Disassembly and Assembly Section
g01292764

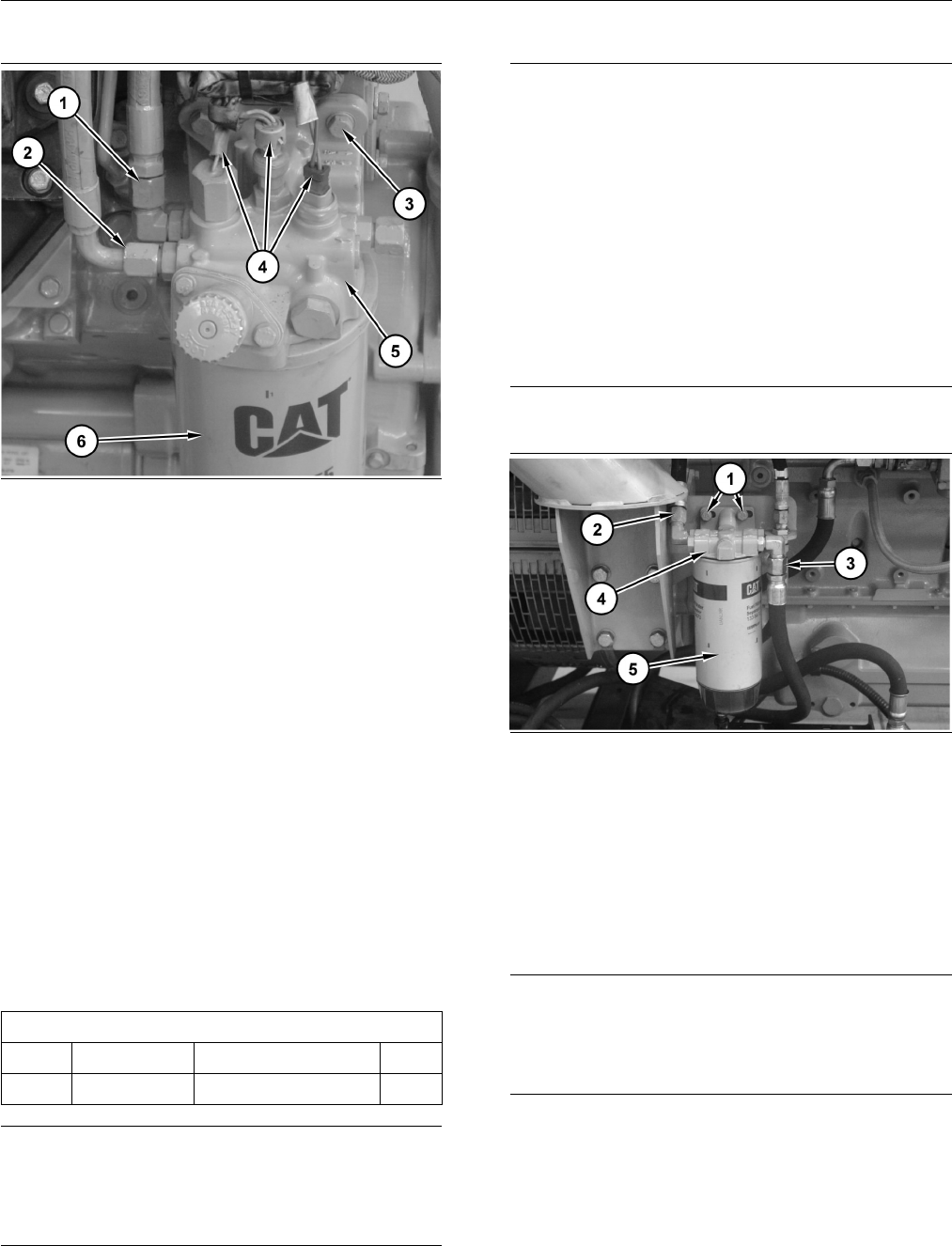

Illustration 34
1. Position fuel filter base (5) on the engine. Install
bolts (3).
2. Connect hose assembly (1) and hose assembly
(2).
3. Connect harness assemblies (4).
4. Install fuel filter (6) on fuel filter base (5).
5. Turn the fuel supply to the ON position.
i02581074
Fuel Filter and Water Separator
- R emove and In stall
SMCS Code: 1261-010; 1263-010
Removal Procedure
Table 4
Required Tools
Tool Part Number Part Description Qty
A
185-3630
StrapWrenchAs 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
NOTICE
Care must be taken to ensure that fluids are contained
during perform
ance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compar
tment or disassembling any compo-
nent containing fluids.
Refer to Speci
al Publication, NENG2500, “Caterpillar
Dealer Service Tool Catalog” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
1. Turn the fuel supply to the OFF position.
g01292832
Illustration 35
2. Use Tooling (A) to remove the fuel filter and water
separator (5) from base assembly (4).
3. Disconnect hose assemblies (2) and (3).
4. Remove bolts (1) and base assembly (4).
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
