TH360B Telehandler Operation and Maintenance Manual Page 83

Operation and Maintenance Manual
31200243 81
Operation Section
When a warning category 2S occurs, the action lamp
flashes red and there is a constant audible alarm. In
order to prevent severe damage to components, the
operator is required to change the machine operation.
When a warning category 3 occurs, the action lamp
flashes red and there is an intermittent audible alarm. In
order to prevent personal injury or severe damage to
components, the operator is required to perform a safe
engine shutdown.
When the machine has been configured with no model
designation, indicator (2) flashes amber and no audible
alarm will sound. This condition will not log an error
code.
When the data link is not communicating with the
display unit, indicator (2) flashes amber and no audible
alarm will sound. This condition will log an error code.
Battery Condition (3) - This indicator
illuminates when the battery is not receiving a
charge from the alternator.
Combined Transmission and Hydraulic Oil
Filter (4) - This indicator illuminates when the
transmission oil filter needs to be
Engine Air Filter (5) - This indicator
illuminates when the engine air filter needs to be
replaced.
Indicators

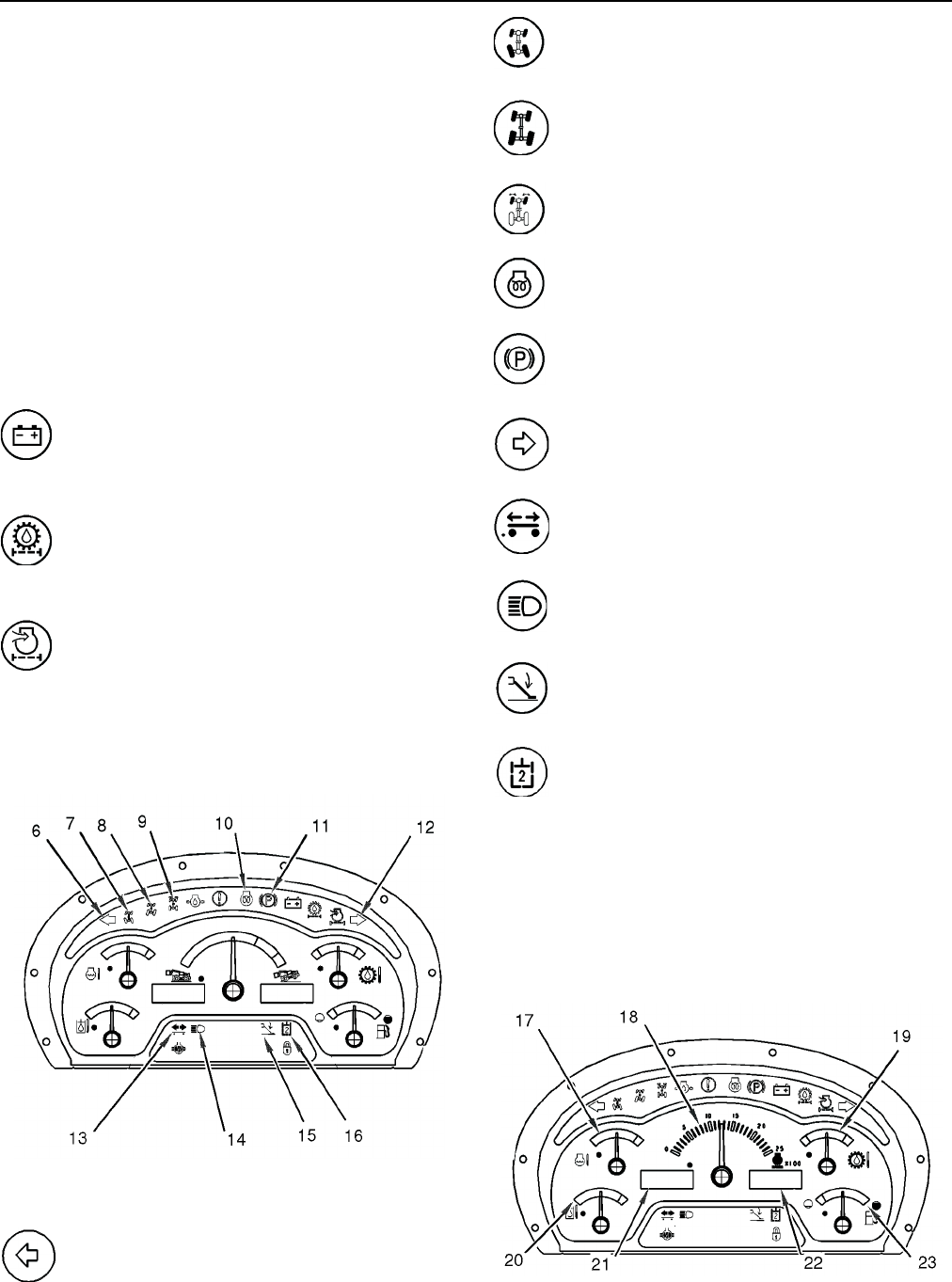

Illustration 137 g01014331
Left Turn Signal (6) - This indicator flashes
when the left turn signal is operating.
Circle Steer (7) - This indicator is illuminated
when circle steer mode is selected.
Crab Steer (8) - This indicator is illuminated
when crab steer mode is selected.
Two-Wheel Steer (9) - This indicator is
illuminated when two-wheel steer mode is
selected.
Engine Starting Aid (10) - This indicator is
illuminated when the engine starting aid is
switched on.
Parking Brake Indicator (11) - This indicator
illuminates when the parking brake is engaged.
Right Turn Signal (12) - This indicator flashes
when the right turn signal is operating.
Trailer Turn Signals (13) - This indicator
flashes when a trailer turn signal is operating.
High Beam (14) - This illuminates when the
high beam headlights are switched on.
Stabilizers (15) - This light indicates when the
stabilizers are lowered.
Hydraulic Auxiliary 2(16) -This indicates
when the solenoids on the diverter valve have
been energized in order to divert oil flow to the
second auxiliary circuit.
Gauges
These gauges are used to help the operator to monitor
trends in machine operation or changes in machine
operation.
Illustration 138 g01014333
Display panel with tachometer
