TH360B Telehandler Operation and Maintenance Manual Page 146

Operation and Maintenance Manual
144 31200243
Maintenance Section
Transmission and Hydraulic
System Oil - Change
Hot oil and hot components can cause personal injury.
Do not allow hot oil or hot components to contact skin.
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, testing,
adjusting and repair of the product. Be prepared to collect
the fluid with suitable containers before opening any
compartment or disassembling any component
containing fluids.
Refer to Special Publication, NENG2500, "Caterpillar
Dealer Service Tool Catalog" for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.

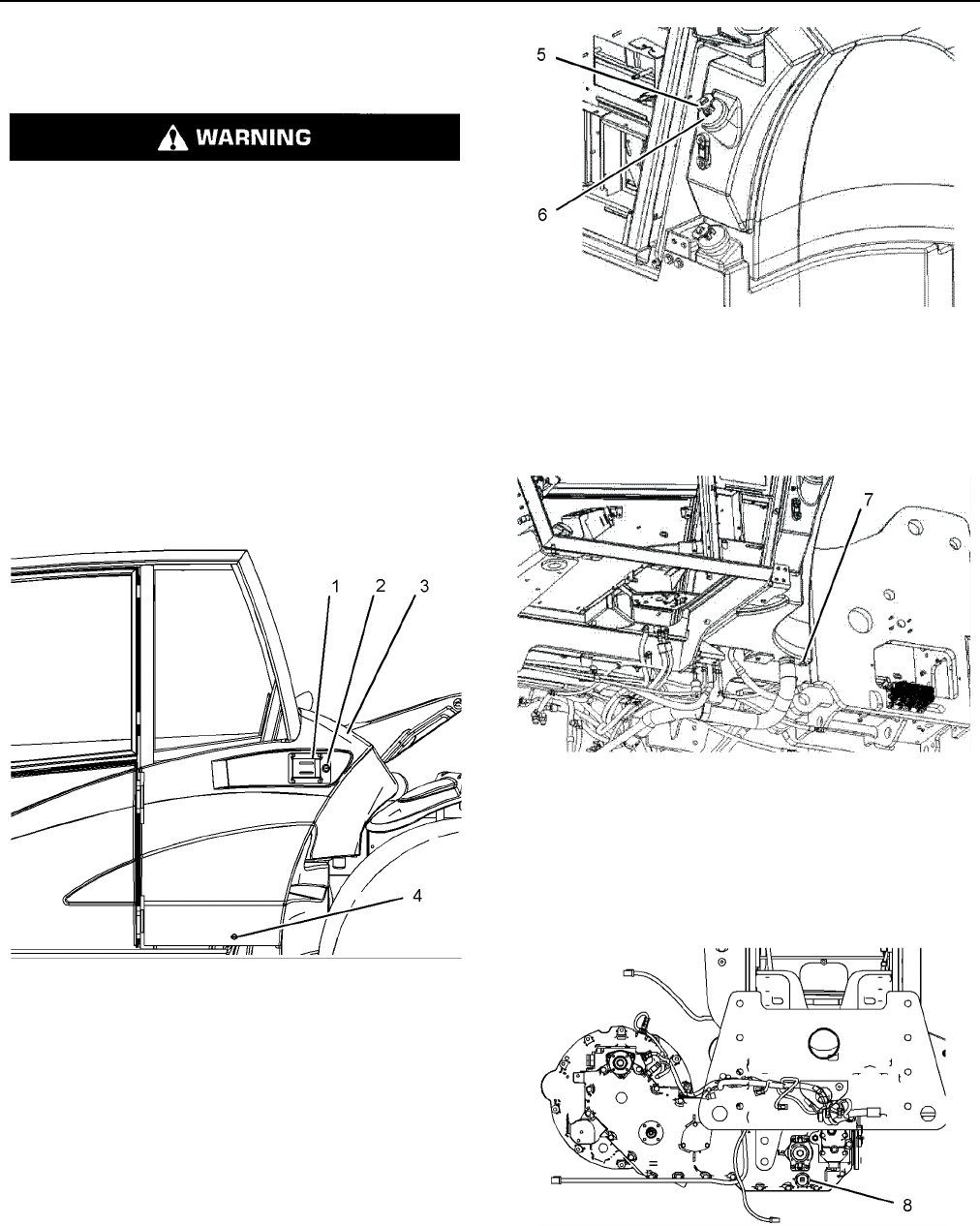

Illustration 285 g01202853
Dispose of all fluids according to local regulations and
mandates.
1. In order to open protection cover (3), unlock lock (2)
and turn lock (4) counterclockwise. Then, pull latch
(1) outward.
Illustration 28 7 g01205670
Hydraulic tank filler cap
SLE3000-UP
2. Lift latch (5). Turn the latch counterclockwise in
order to relieve the pressure in the hydraulic
system. Remove hydraulic tank filler cap (6).
Illustration 289g 01205713
Drain plug
SLE3000-UP
3. Remove drain plug (7) from the bottom of the
hydraulic tank and drain the oil into a suitable
container. Clean the drain plug. Install the drain plug
back into the hydraulic tank.
Illustration 290 g01205893
4. Remove drain plug (8) from the bottom of the
transmission and drain the oil into a suitable
container. Clean the drain plug. Install the drain plug
back into the transmission.
