TH360B Telehandler Operation and Maintenance Manual Page 24

Operation and Maintenance Manual
22 31200243
Safety Section

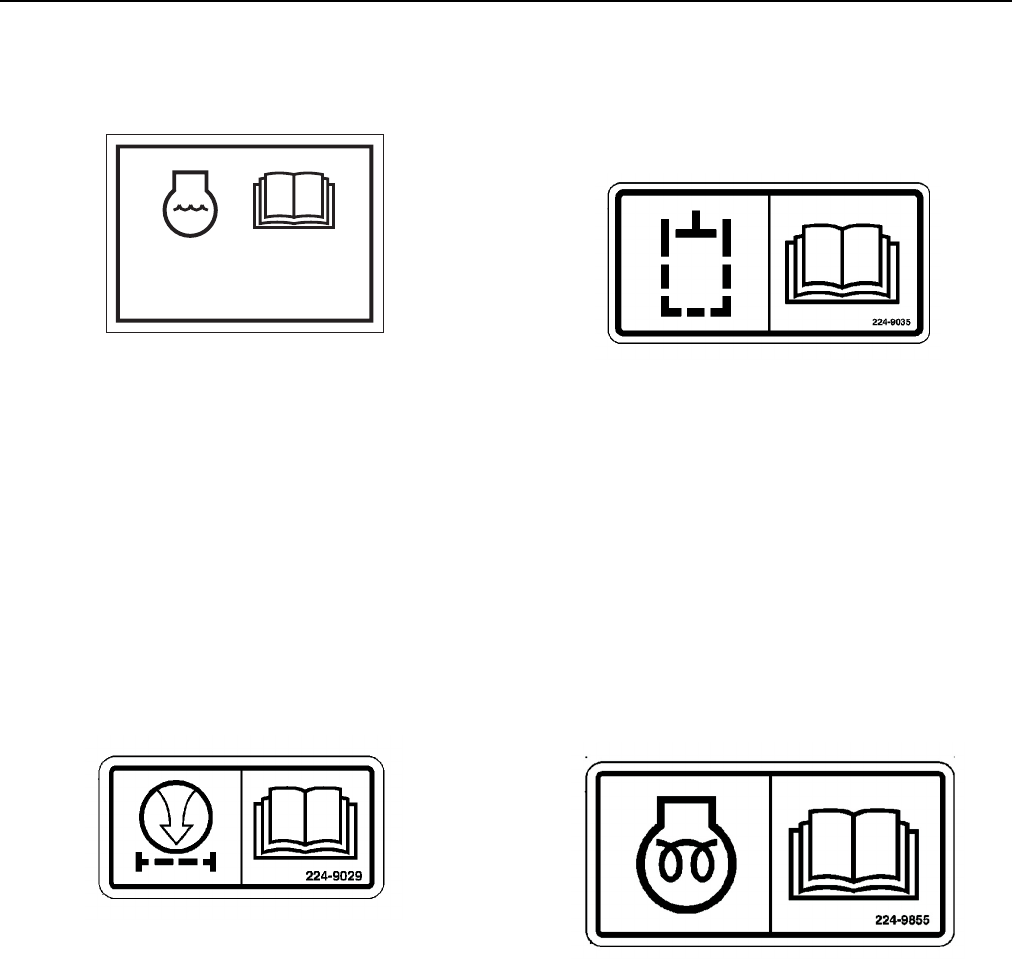

Coolant (1)
This message is located on the coolant tank.
Refill with only 50/50 mixture of ethylene glycol and
water. Refer to Operation and Maintenance Manual,
"Cooling System Coolant Level - Check" and
Operation and Maintenance Manual, "Cooling System
Coolant - Change" for more information.
Air Cleaner (2)
This message is located on the cover for the air
cleaner.
Illustration10 g00931688
Clean the filter element or replace the filter element
when the restriction indicator shows red. Refer to
Operation and Maintenance Manual, "Engine Air Filter
Primary Element - Clean/Replace" and Operation and
Maintenance Manual, "Engine Air Filter Secondary
Element - Replace" for more information.
Auxiliary Hydraulics (3)
This message is located on the left side of the boom
head.
Illustration 11 g00934458
Use only work tools that are approved by Caterpillar.
Refer to the topic "Auxiliary Hydraulic Connections" in
Operation and Maintenance Manual, "Work Tools" for
more information.
Starting Aid (4)
The message is located on the panel at the right side of
the operator station.
Illustration 12 g00931943
Use the cold weather starting aid to start the engine
below 0 °C (32 °F). Refer to Operation and
Maintenance Manual, "Engine Starting" for more
information.
50% Ethylene
Glycol
OAM1010
