TH360B Telehandler Operation and Maintenance Manual Page 64

Operation and Maintenance Manual
62 31200243
Operation Section
differential lock, release pressure from accelerator
pedal (18) and release differential lock control.
NOTICE
Use the differential lock only in conditions where wheel
spin has, or will be encountered. If wheel spin has
already developed, release pressure from the
accelerator pedal and allow the engine speed to fall
sufficiently to stop wheel spin before engaging the
differential lock. Failure to follow this procedure can
result in machine damage.
Keep steering maneuvers to a minimum when the
differential lock is engaged. Steering maneuvers with the
differential lock engaged can result in machine damage.
The differential lock should only be engaged with all of
the wheels in the straight ahead position. The
differential lock should only be engaged when the
machine is stopped.
Transmission Control (21)
Direction Selection
Forward (F) - Push the lever fully upward (F)
in order to select forward movement.
Neutral (N) - Move the lever to the mid-
position in order to select NEUTRAL.Move
the lever to the NEUTRAL position when you
park the machine. The lever must be in the NEUTRAL
position before the engine can be started.
Reverse (R) - Pull the lever fully downward in
order to select reverse movement.
Speed Selection
Powersynchro Transmission

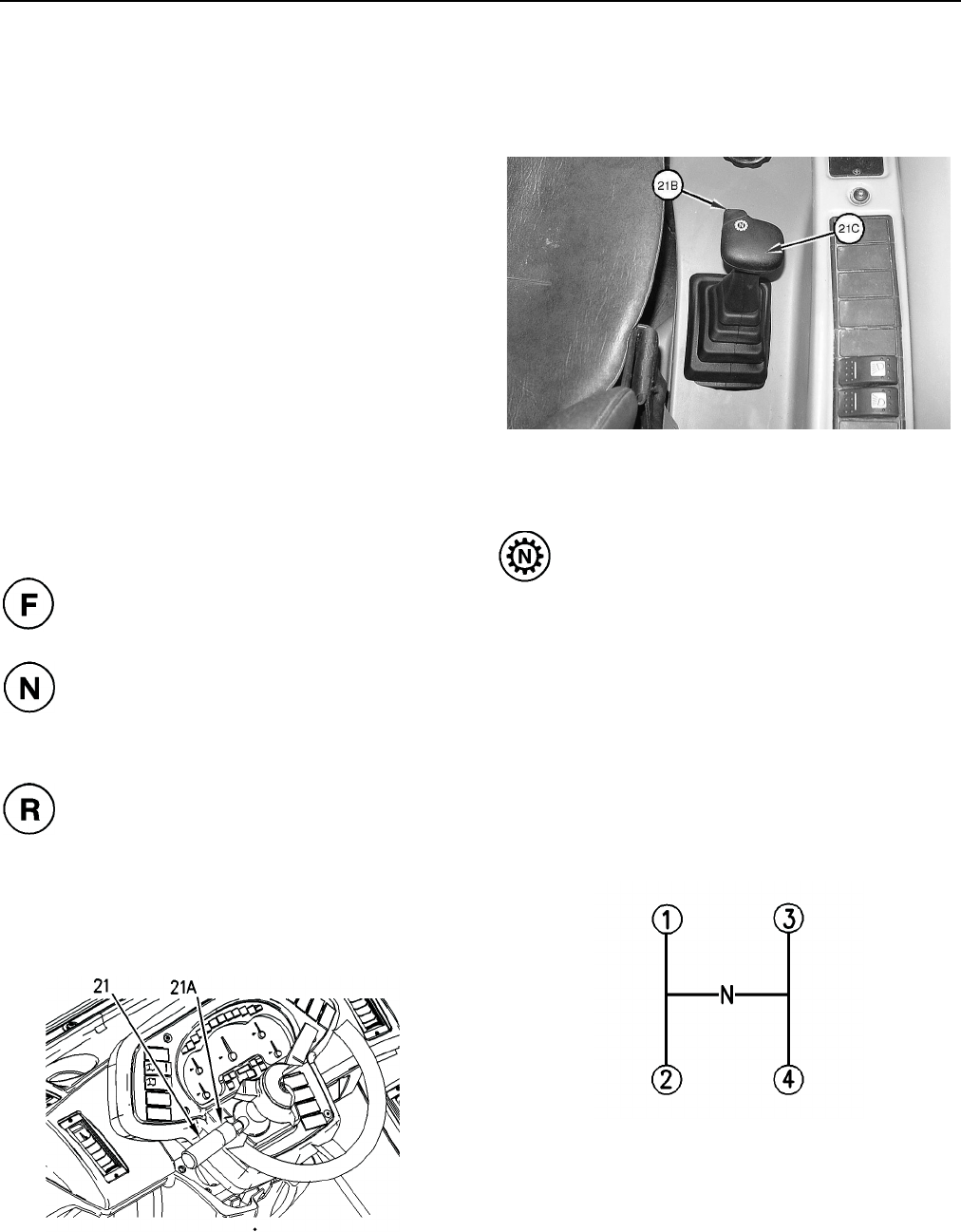

Illustration 84 g00978904
Four transmission speeds can be selected. The
speeds are indicated on collar (21A). Rotate
transmission control (21) until the required
transmission speed is opposite the line. All four
speeds can be selected for forward travel. The first
three speeds can be selected for reverse travel. Select
the proper speed for the application.
Manual Transmission
Illustration 85 g01014289
Some machines are equipped with a manual
transmission shift.
Transmission Neutralizer Button (21B) -
Push the button and hold the button when you
are changing speed ranges. This will disengage
the transmission from the driving wheels.
Transmission Speed Shift Lever (21C) - Push
transmission neutralizer button (21B) and hold button
(21B) in order to neutralize the transmission. Then,
move lever (21C) to one of the four desired travel
speeds. All four speeds can be selected in both
forward and reverse travel. Speed changes are
possible when you are moving and when the machine
is at full engine speed.
Illustration 86 g00846950
Move the transmission speed lever according to the
shift pattern in Illustration 86.
Changing Speed and Direction
Start moving the machine in first gear or in second
gear. To upshift, move the transmission control to the
next highest gear. It is not necessary to release the
accelerator control. To downshift, move the
