TH360B Telehandler Operation and Maintenance Manual Page 25

Operation and Maintenance Manual
31200243 23
Safety Section

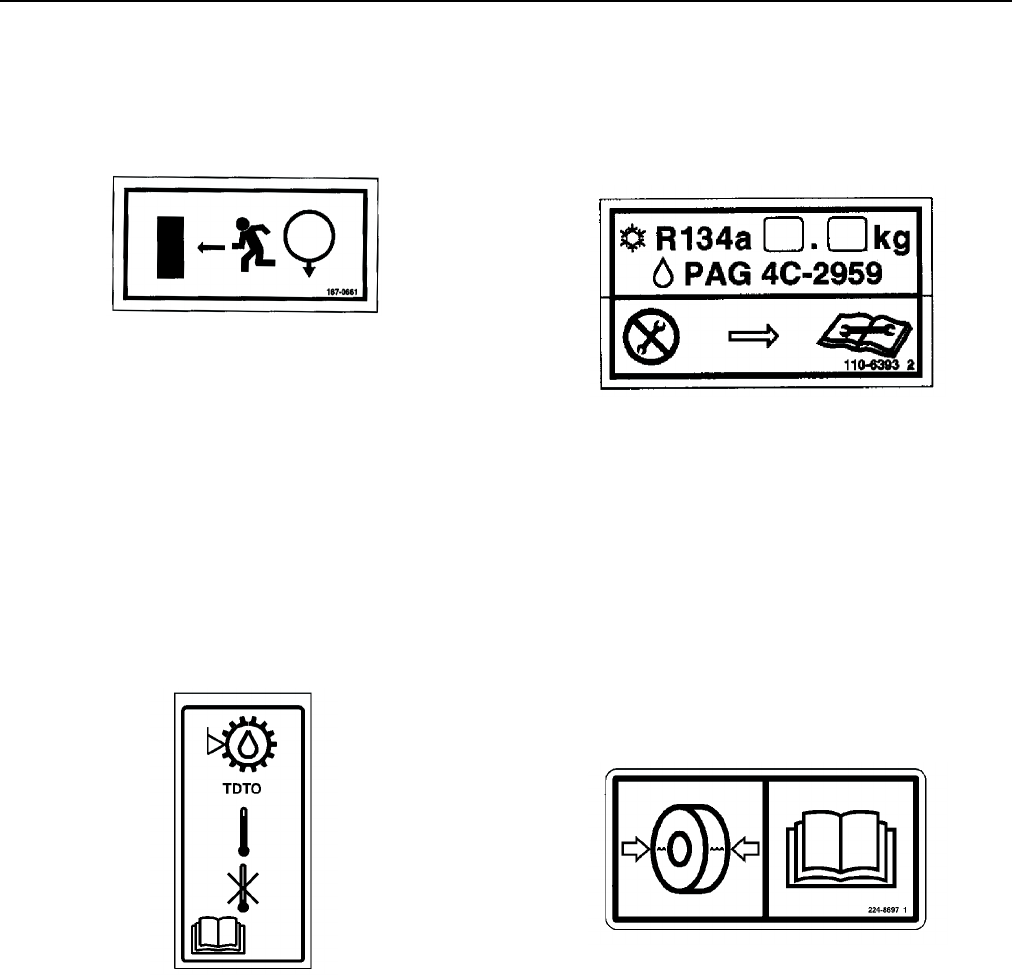

Alternate Exit (5)
This message is located on the rear window of the cab.
Illustration 14 g00931915
If the primary exit is blocked, exit the machine through
the rear window. Use the ring on the rear window latch
in order to pull out the retaining pin. This action will
unlock the rear window.
Transmission and Hydraulic Oil (6)
If equipped, this message is located next to the sight
gauge for the transmission and hydraulic oil.
Illustration 15 g01059267
Check the transmission and hydraulic oil when the oil is
warm. Do not add oil when the system is cold. If the
system is cold and you add oil, you can overfill the
system. This could cause machine damage. Refer to
Operation and Maintenance Manual, "Transmission
and Hydraulic System Oil Level - Check" for the
correct procedure.
Air Conditioner (7)
On machines that are equipped with an air
conditioner, this label is located behind the protection
cover at the rear of the door.
Illustration 16 g00934175
Do not work on the air conditioning system until you
have read the service manual and you understand the
service manual.
Tire Pressures (8)
This message is located behind the protection cover on
the left side of the cab.
Illustration 17 g00931919
Personal injury can result from improper tire inflation.
Refer to Operation and Maintenance Manual, "Tire
Inflation Information" for more information.
