TH360B Telehandler Operation and Maintenance Manual Page 18

Operation and Maintenance Manual
16 31200243
Safety Section

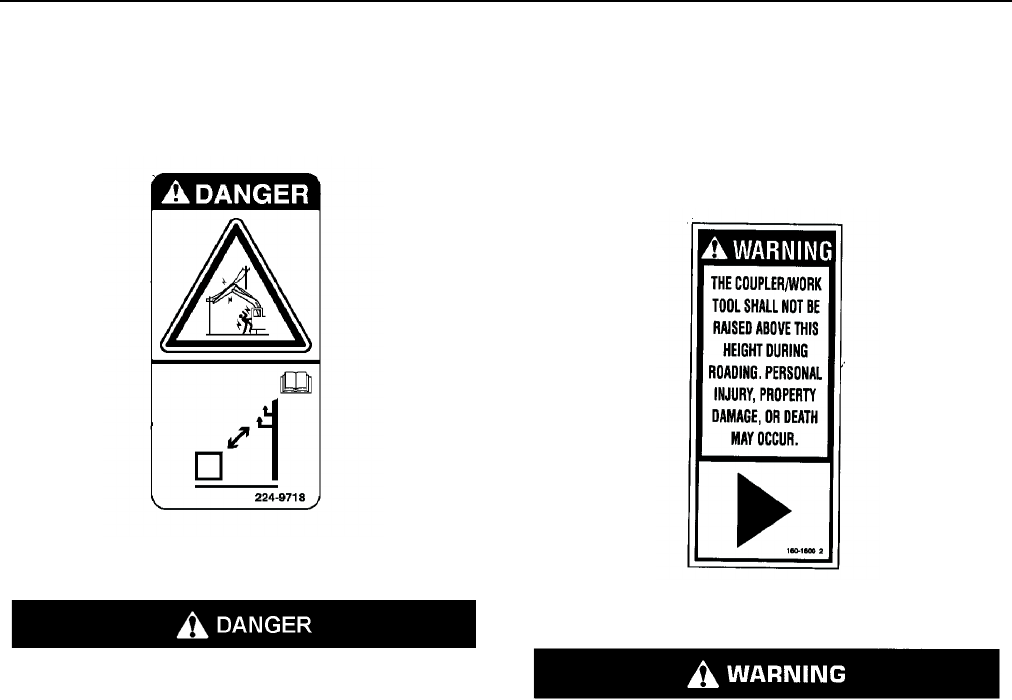

Avoid Power Lines (13)
This safety message is positioned in the operator
station on the right side of the window.
g00936329
Electrocution Hazard! Keep the machine and
attachments a safe distance from electrical power. Stay
clear 3 m (10 ft) plus twice the line insulator length.
Read and understand the instructions and warnings in
the Operation and Maintenance Manual. Failure to follow
the instructions and warnings will cause serious injury
or death
Always check for power lines before raising the boom.
Failure to check for power lines before raising the boom
could result in injury or death by electrocution. Refer to
Operation and Maintenance Manual, "Before Starting
Engine" for more information.
Low Bridge (14)
This safety message is positioned in the operator
station on the right side of the window. This message is
only located on machines that will be used in the United
Kingdom.
g00931533
The coupler/work tool shall not be raised above this
height during roading. Personal injury, property
damage, or death may occur.
