TH360B Telehandler Operation and Maintenance Manual Page 49

Operation and Maintenance Manual
31200243 47
Operation Section
Shortening the Seat Belt

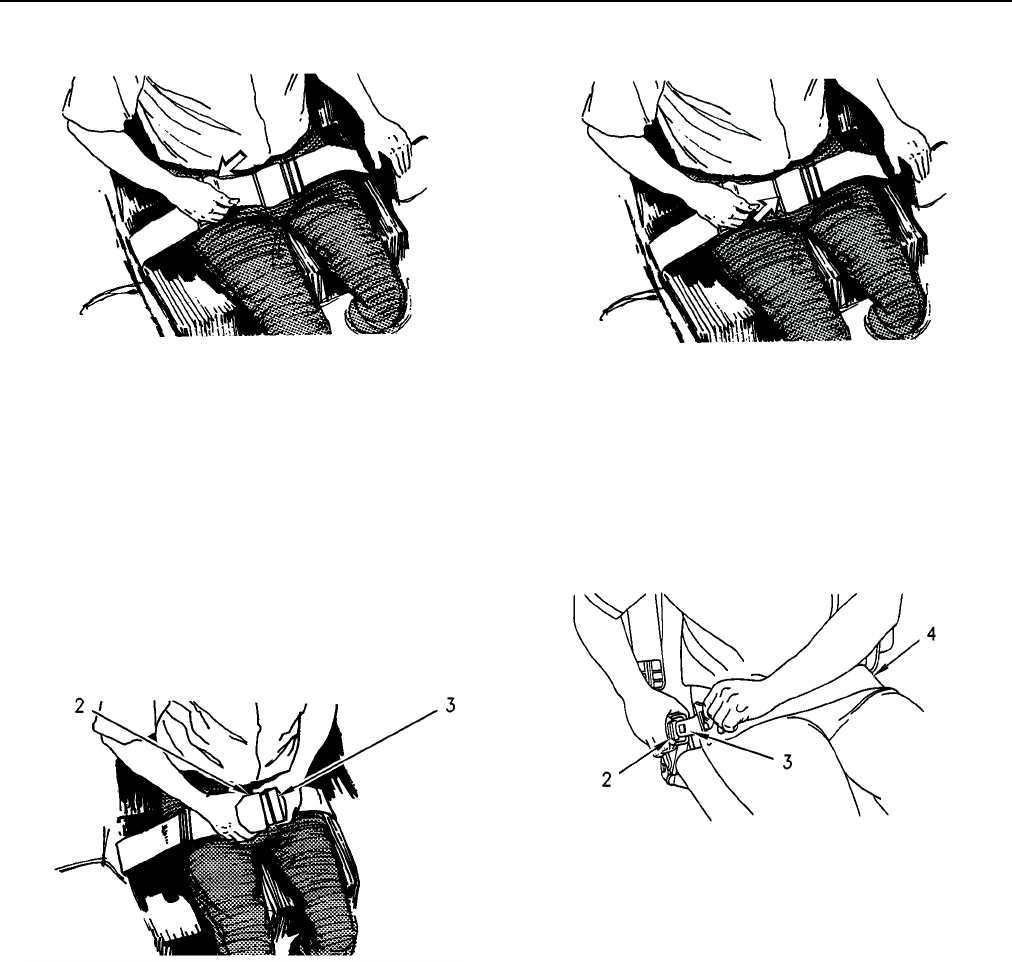

Illustration 56 g00100713
1. Fasten the seat belt. Pull out on the outer belt loop in
order to tighten the seat belt.
2. Adjust the other half of the seat belt in the same
manner.
3. If the seat belt does not fit snugly with the buckle in
the center, readjust the seat belt.
Fastening The Seat Belt
Illustration 57 g00932818
Fasten the seat belt catch (3) into the buckle (2). Make
sure that the seat belt is placed low across the lap of the
operator.
Releasing The Seat Belt
Illustration 58 g00100717
Pull up on the release lever. This will release the seat
belt.
Seat Belt Adjustment for Retractable Seat
Belts
Fastening The Seat Belt
Illustration 59 g00867598
Pull seat belt (4) out of the retractor in a continuous
motion.
Fasten seat belt catch (3) into buckle (2). Make sure
that the seat belt is placed low across the lap of the
operator.
The retractor will adjust the belt length and the
retractor will lock in place. The comfort ride sleeve will
allow the operator to have limited movement.
