Fog Lights (8)
Fog Lights - Push the right side of switch in
order to turn on the fog lights. Push the left side
of switch in order to turn off the fog lights.
Hazard Flashers (9)
Hazard Flashers - Push the right side of
switch (9) in order to activate the hazard
flashers. All the turn signal lights will flash
simultaneously. Push the left side of switch (9) in order
to deactivate the hazard flashers.
Headlight Dimmer Switch (10)
Dimmer Control - Push the right side of
switch (10) in order to activate the high beam
headlights. Switch (11) for the headlights must
be in the HEADLIGHTS position in order to activate the
high beam. The headlights remain on high beam until
the left side of switch (10) is pushed to the LOW BEAM
position.
Headlight-Parking Lights (11)
Low Beam Headlights - Push the right side of
switch (11) in order to turn on the parking lights
and the rear lights. Push the right side of switch
(11) again in order to turn on the headlights, the
parking lights and the rear lights. Push the left side of
switch (11) in order to turn off the headlights. Push the
left side of switch (11) again in order to turn off the
parking lights and the rear lights.
Rotating Beacon Light (12)
Rotating Beacon (if equipped) - Push the right
side of switch (12) in order to activate the
rotating beacon. Push the left side of switch
(12) in order to deactivate the rotating beacon.
Joystick Control (13)
Improper use of the boom and work tools could result
in injury or death. The operator must be fully aware of all
the functions for the joystick control and proper
operating techniques.
The following information describes two types of
operating arrangements for the joystick control. A
decal that shows the configuration is located forward of
joystick control (13). The decal indicates the
movements that will be produced when you operate the
joystick control.
You must understand all of the functions of the
joystick control before you operate the machine.
Type A Control Arrangement (Single Thumb
Wheel)

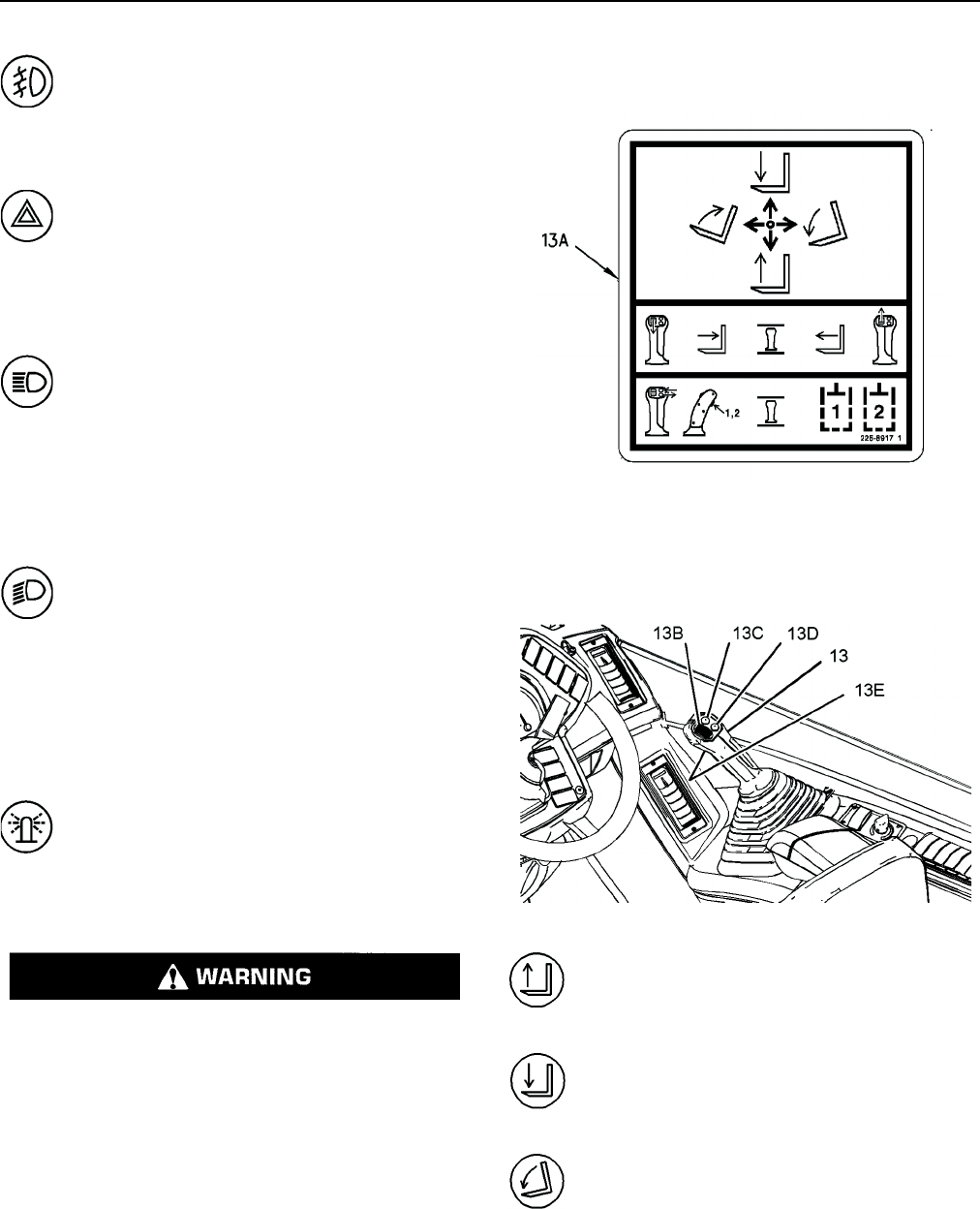

Illustration 70 g00978774
Machines that have the Type A control arrangement are
equipped with decal (13A) that is shown above. Joystick
control (13) operates in the following way:
Illustration 71 g01213463
Boom Raise - Pull joystick control (13)
backward in order to raise the boom. When
joystick control (13) is released, the joystick
control will return to the HOLD position.
Boom Lower - Push joystick control (13)
forward in order to lower the boom. When
joystick control (13) is released, the joystick
control will return to the HOLD position.
Quick Coupler (Tilt Forward) - Push joystick
control (13) to the right in order to tilt the quick
coupler forward. When joystick control (13) is
released, the joystick control will return to the HOLD
position.
