TH360B Telehandler Operation and Maintenance Manual Page 79

Operation and Maintenance Manual
31200243 77
Operation Section
Forks that have been used for any of the applications
that are listed above must be removed from the
machine. The forks must be destroyed.
Note: Slings and chains must be used with a lifting
hook.
Buckets
NOTICE
When a bucket is used for dozing a site or for clearing a
site, keep the bottom face parallel to the ground. This will
avoid damage to the leading edge of the bucket.
Maintain traction for the machine by avoiding excessive
down force on the bucket. Keep the boom extension to a
minimum in order to prevent twisting of the boom.
Use a bucket that is suitable for the job.

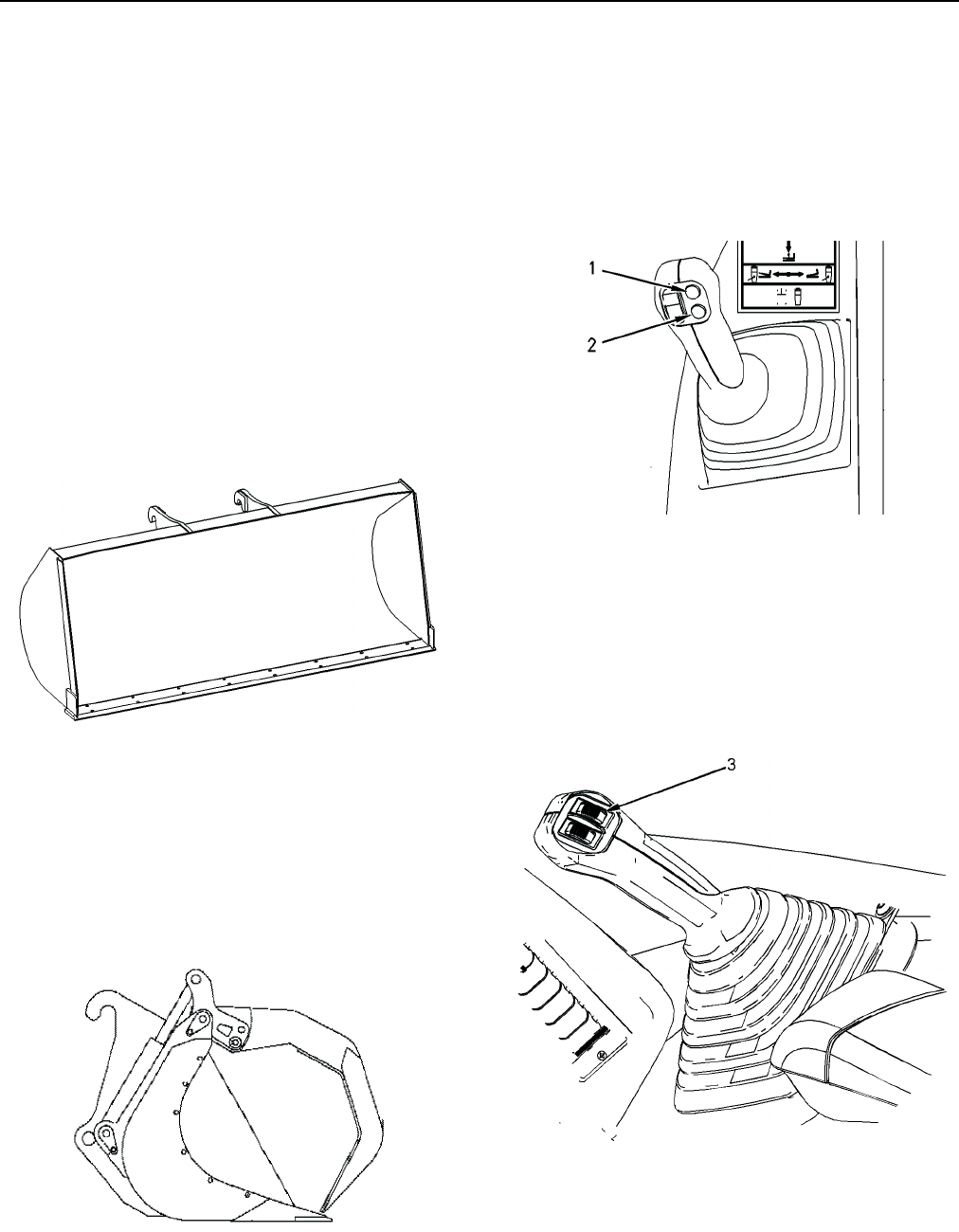

Illustration 122 g00974741
Typical bucket
Buckets that are used in heavy applications are
equipped with a cutting edge. General purpose
buckets are used for digging and material handling.
Typical materials would be earth, sand, cement and
aggregates.
Grapple Buckets
Illustration 123 g00974763
Typical grapple bucket
Grapple buckets are equipped with a cutting edge.
Grapple buckets are equipped with hydraulic cylinders
that must be connected to the machine hydraulic
system. The jaws of the bucket grip the load.
For the best operator visibility, travel with the bucket
close to the ground.
Install the bucket that is appropriate for the intended
task. Install the correct wear plate and the correct
cutting edge.
Single Thumb Wheel
Illustration 124 g00974772
Press and hold switch (1) in order to open the grapple.
Press and hold switch (2) in order to close the grapple.
Refer to the topic "Joystick Control" in Operation and
Maintenance Manual, "Operator Controls" for full
information.
Double Thumb Wheel
Illustration 125 g01053965
Move thumb wheel (3) forward in order to open the
grapple. Move thumb wheel (3) backward in order to
close the grapple. Refer to the topic "Joystick Control" in
Operation and Maintenance Manual, "Operator
Controls" for full information.
