TH360B Telehandler Operation and Maintenance Manual Page 14

Operation and Maintenance Manual
12 31200243
Safety Section

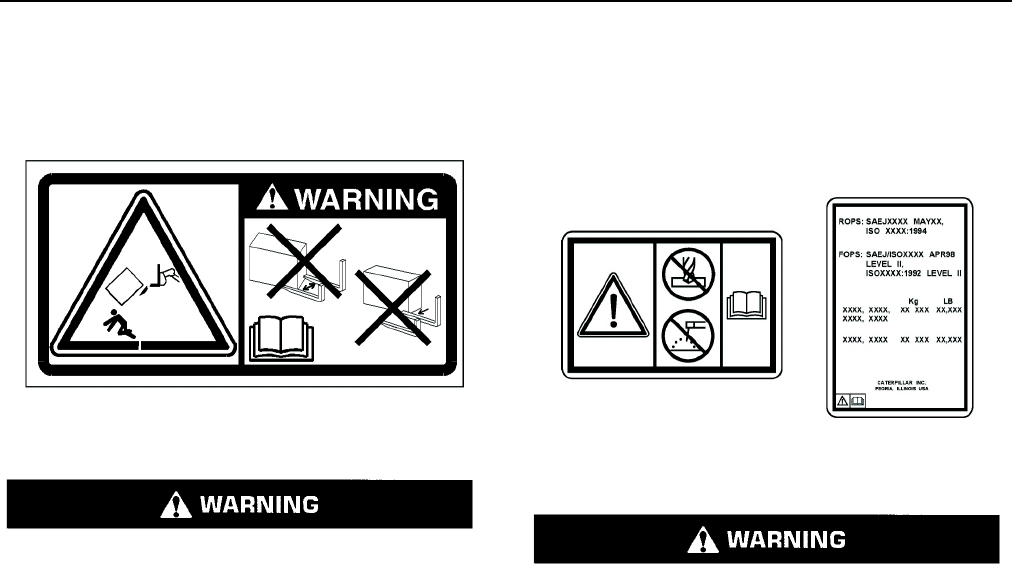

Forks (5)
This safety message is positioned on the panel at the
right side of the operator station.
g01059274
Side loading of the forks may cause premature failure
of the forks and thus a crush hazard which may cause
personal injury or death. Never push loads with the
forks and inspect the forks daily for any twisting or
bending observed in the forks. Should twisting or
bending be observed, change the fork(s) prior to any
lifting operation. Read the Operation and Maintenance
Manual for more information about the correct use of
the forks.
Do Not Weld On The ROPS/FOPS
Structure (6)
This safety message is positioned behind the seat near
the window.
g01211890
Structural damage, an overturn, modification,
alteration, or improper repair can impair this
structure's protection capability thereby voiding this
certification. Do not weld on or drill holes in the
structure. This will void the certification. Consult a
Caterpillar dealer to determine this structure's
limitations without voiding its certification.
This machine has been certified to the standards that
are listed on the certification film. The maximum mass
of the machine, which includes the operator and the
attachments without a payload, should not exceed the
mass on the certification film.
A typical example of the warning film and certification
film are shown above.
Refer to Operation and Maintenance Manual, "Guards
(Operator Protection)" for more information.
