TH360B Telehandler Operation and Maintenance Manual Page 53

Operation and Maintenance Manual
31200243 51
Operation Section
Operator Controls

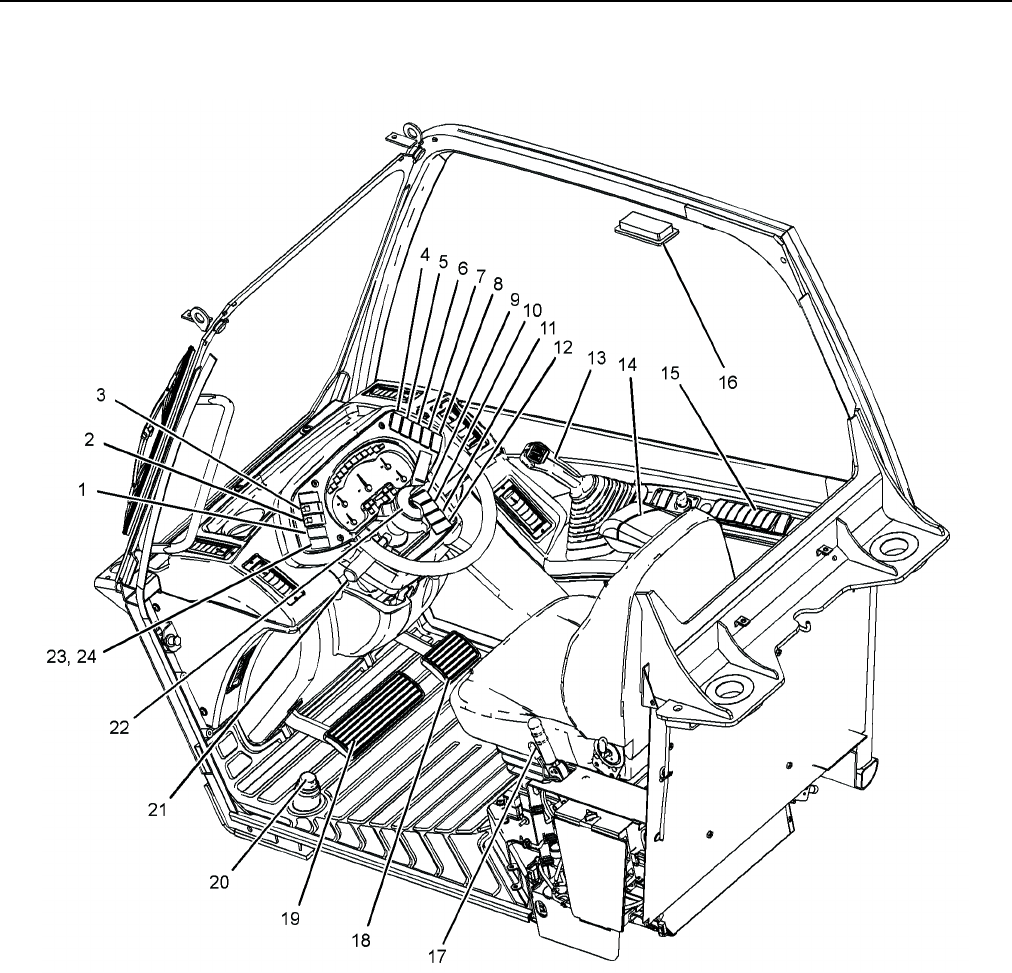

Illustration 62 g01213390
((1) Quick coupler control
(2) Transmission neutralizer control
(3) Steering mode control
(4) Frame leveling control
(5) Left stabilizer control
(6) Right stabilizer control
(7) Continuous auxiliary flow control
(8) Fog lights
(9) Hazard flashers
(10) Headlight dimmer switch
(11) Headlight-Parking lights
(12) Rotating beacon light
(13) Joystick control
(14) Adjustable armrest
(15) Side console
(16) Interior light
(17) Parking and secondary brake control
(18) Accelerator control
(19) Service brake control
(20) Differential lock control
(21) Transmission control
(22) Horn
(23) Starting aid switch
(24) Auto/Manual switch (if equipped)
