950F Series II Wheel Loader Operation and Maintenance Manual Page 46

Operation and Maintenance Manual
133
Maintenance Section
Walk-Around Inspection

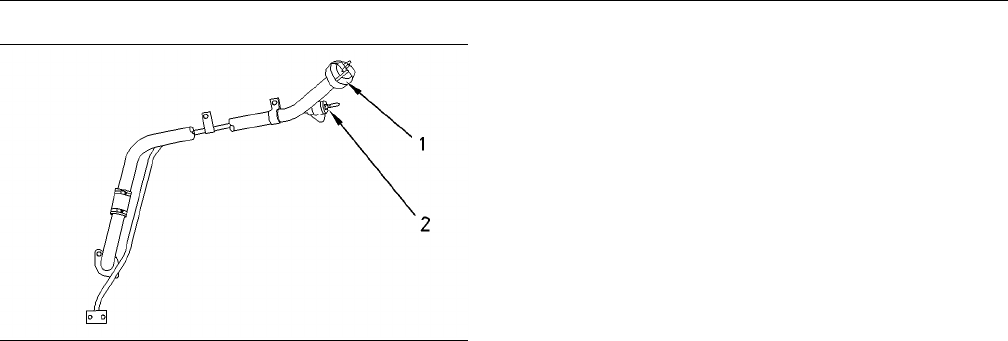

g00809013
Illustration 225
Note: Before the machine is started, the transmission
oil level should be above “MIN START” mark on the
dipstick (2).
1. Operate the machine for a few minutes in order
to warm the transmission oil.
2. Park the machine on a hard, level surface.
Put the transmission control into the NEUTRAL
position. Lower the bucket to the ground with a
slight downward pressure. Engage the parking
brake.
3. Check the oil level while the engine is running
at low idle.
While the engine is running at low idle, the
transmission oil level should be between the
“MIN” mark and the “MAX” mark.
4. If necessary, remove the filler cap (1) and add oil.
i01708329
Walk-Around Inspection
SMCS Code: 7000-040
Note: Inspect the machine for leaks. If leaks are
observed, find the source of the leak and correct the
leak. If leaks are suspected, check the fluid levels
more frequently than the recommended intervals.
•
Inspect the cooling system for leaks and for
faulty hoses. Fix any leaks and replace hoses,
as needed. Remove any debris buildup from the
radiator. For more information, refer to Operation
and Maintenance Manual, “Radiator Core -
Clean”.
•
Inspect the engine compartment. Remove any
debris buildup from the engine compartment.
Clean the engine access doors.
•
Inspect the engine for any obvious component
damage.
•
Inspect the precleaner bowl for dirt buildup.
Clean the precleaner bowl if dirt has accumulated
to the “FULL” mark. For more information, refer
to Operation and Maintenance Manual, “Engine
Air Precleaner - Clean”.
•
Inspect the tires for damage. Replace any
missing valve caps.
•
Inspect the axles, the differentials, the wheel
brakes and the transmission for leaks. Fix any
leaks.
•
Inspect the hydraulic system for leaks. Check
the hydraulic tank, all hoses and all tubes. Also,
check all plugs, all seals, all couplings and all
fittings. Fix any leaks and replace hoses, as
needed.
•
Inspect all attachments and the linkages for wear
and for damage.
•
Make sure that all access doors, all access
covers and all guards are secured. Inspect the
access doors, the access covers and the guards
for damage.
•
Inspect the steps, the walkways and the
handholds. Remove any debris. Repair any
damage or replace any damaged parts.
•
Inspect the Rollover Protective Structure (ROPS)
for obvious damage. Consult your Caterpillar
dealer for repairs.
•
Inspect the lights. Replace any broken bulbs and
any broken lenses.
•
Inspect the operator compartment. Remove any
trash buildup. Keep the operator compartment
clean.
•
Inspect the dash panel for broken gauges and for
broken indicator lights. Replace any broken parts.
•
Inspect the seat belt, the buckle and the mounting
hardware. Replace any components that are
worn or damaged. For more information, refer to
Operation and Maintenance Manual, “Seat Belt -
Replace”.
•
Adjust the mirrors for best visibility.
