950F Series II Wheel Loader Operation and Maintenance Manual Page 42

Operation and Maintenance Manual
129
Maintenance Section
Seat Belt - Replace
i01625445
Seat Belt - Replace
SMCS Code: 7327-510
g00841400
Illustration 214
Regardless of the appearance of the seat belt, the
seat belt should be replaced at every three year
interval. A date label is attached to each seat belt.
Use this label in order to determine the age of the
seat belt.
Consult your Caterpillar dealer for replacement of
the seat belt.
i01555430
Service Brake Disc Wear -
Check
SMCS Code: 4255-535
Reference: For information about checking the
service brake wear indicator, refer to Testing and
Adjusting, SENR4930, “950F Series II Wheel Loader
Air System and Brakes” or consult your Caterpillar
dealer.
i01555371
Steering Cylinder Bearings -
Lubricate
SMCS Code: 4303-086-BD

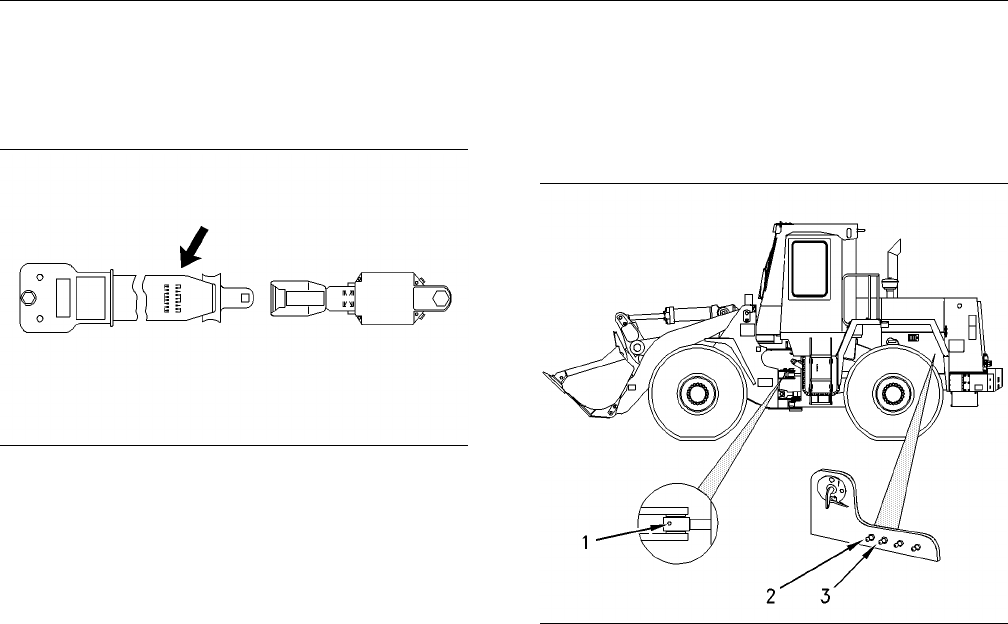

g00808420
Illustration 215
Wipe all fittings before lubrication.
The rod end of the steering cylinders are lubricated
by using a grease fitting (1) that is located on the
cylinder.
The head end of the steering cylinders are
lubricated by using remote grease fittings. These
fittings (2) and (3) are located on the left side of
the machine.
There is a total of four fittings.
i01562042
Tilt Cylinder Bearings and
Bucket Linkage Bearings -
Lubricate
SMCS Code: 5104-086-BD; 6107-086-BD
Wipe off all fittings before any lubricant is applied.
