950F Series II Wheel Loader Operation and Maintenance Manual Page 39

Operation and Maintenance Manual
126
Maintenance Section
Hydraulic Tank Breaker Relief Valve - Clean
i01562008
Hydraulic Tank Breaker Relief
Valve - Clean
SMCS Code: 5118-070
g00811305

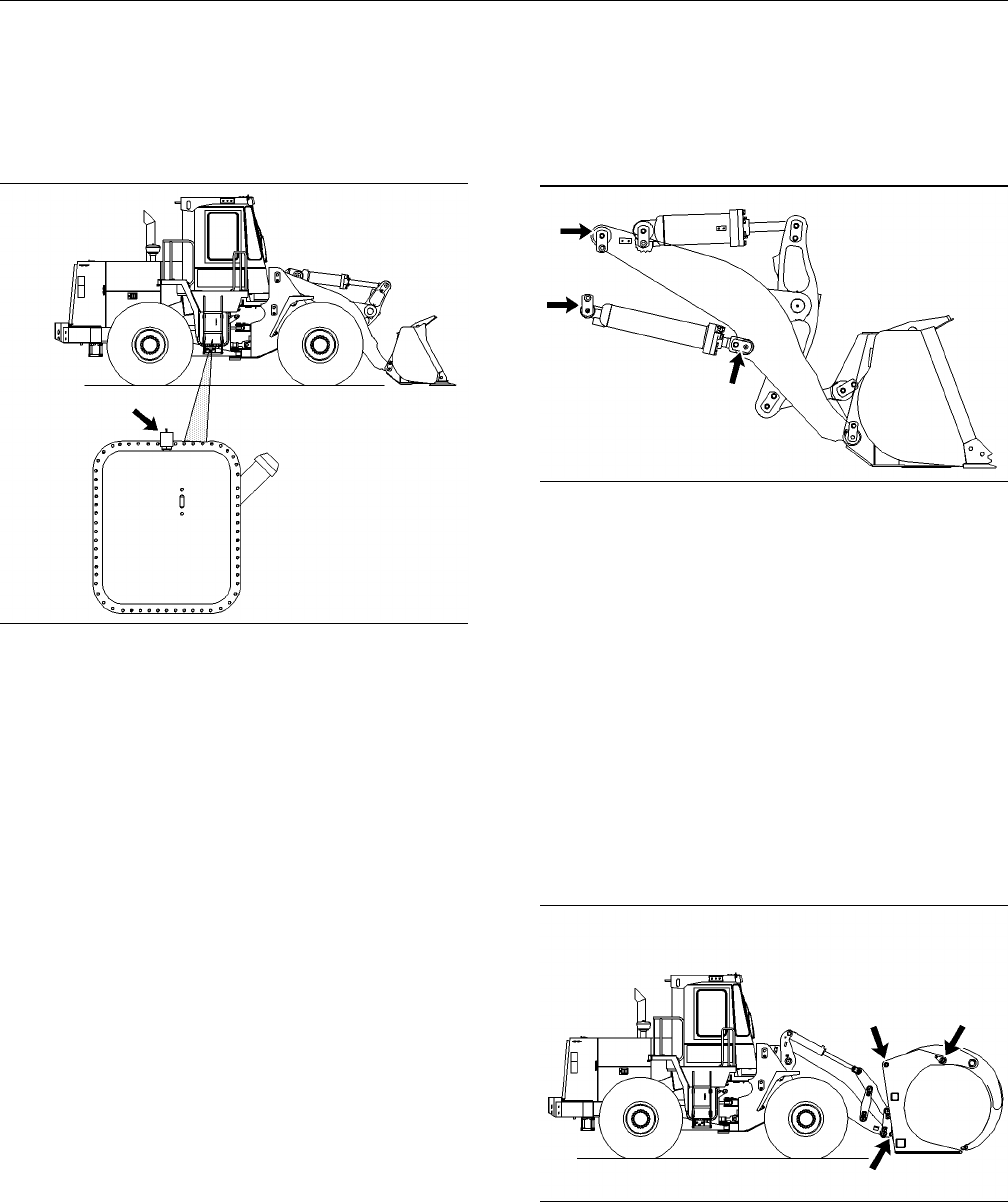

Illustration 207
The hydraulic tank breaker relief valve is located
on the top of the hydraulic tank on the right side
of the machine.
1. Press the button on the top of the hydraulic
breaker in order to relieve the pressure in the
hydraulic tank. Remove the hydraulic tank
breaker relief valve.
2. Clean the hydraulic tank breaker relief valve in a
clean, nonflammable solvent. Shake the breaker
relief valve dry or use pressure air to dry the
breaker relief valve.
3. Install the hydraulic tank breaker relief valve.
i01556950
Lift Arm and Cylinder Linkage
- Lubricate
SMCS Code: 5102-086-BD; 6107-086-BD
g00809393
Illustration 208
Lubricate two fittings on each lift arm.
Lubricate the fitting on the cylinder linkage knuckles
of each side of the machine.
Note: There is a total of six fittings.
i01562023
Logging Fork Clamp -
Lubricate
SMCS Code: 6113-086-BD; 6410-086-BD
Wipe off all fittings before any lubricant is applied.
g00811307
Illustration 209
Apply lubricant through three fittings on each side
of the logging fork.
There is a total of six fittings.
