950F Series II Wheel Loader Operation and Maintenance Manual Page 17

Operation and Maintenance Manual
104
Maintenance Section
Cooling System Water Temperature Regulator - Replace
i01562542
Cooling System Water
Temperature Regulator -
Replace
SMCS Code: 1355-510; 1393-010
Pressurized system: Hot coolant can cause seri-
ous burn. To open cap, stop engine, wait until ra-
diator is cool. Then loosen cap slowly to relieve
the pressure.
NOTICE
Failure to replace the engine’s thermostat on a regu-
larly scheduled basis could cause severe engine dam-
age.
NOTICE
Caterpillar engines incorporate a shunt design cooling
system and require operating the engine with a ther-
mostat installed.
If the thermostat is installed wrong, it will cause the
engine to overheat. Inspect gaskets before assembly
and replace if worn or damaged.

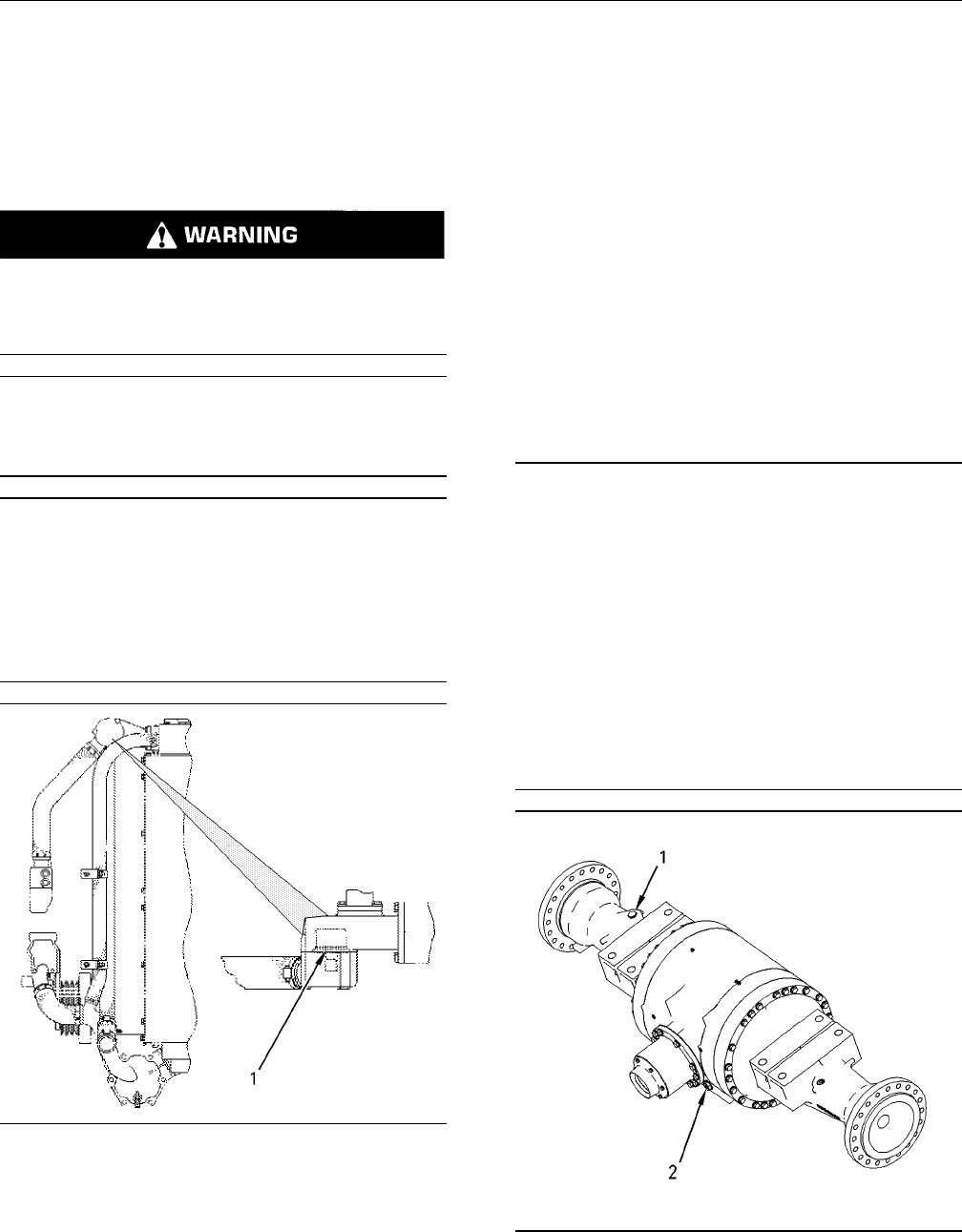

g00811615
Illustration 153
Replace the water temperature regulator in order
to reduce the chance of problems with the cooling
system.
Replace the water temperature regulator and the
seals while the cooling system is completely drained
or while the coolant is drained to a level that is
below the water temperature regulator housing.
Note: If you are only replacing the water temperature
regulator, drain the coolant to a level that is below
the water temperature regulator housing.
Reference: Refer to the Disassembly and Assembly
Manual for the correct procedure for replacing the
water temperature regulator.
i01564685
Differential and Final Drive Oil
- Change
SMCS Code: 3278-044; 4011-044
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Tools and Shop Products Guide” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
g00287529
Illustration 154
Typical Example
Front Axle
