950F Series II Wheel Loader Operation and Maintenance Manual Page 12

Operation and Maintenance Manual
99
Maintenance Section
Bucket Wear Plates - Inspect/Replace
i01709216
Bucket Wear Plates -
Inspect/Replace
SMCS Code: 6120-040; 6120-510
Personal injury or death can result from the bucket
falling.
Block the bucket before changing bucket wear
plates.

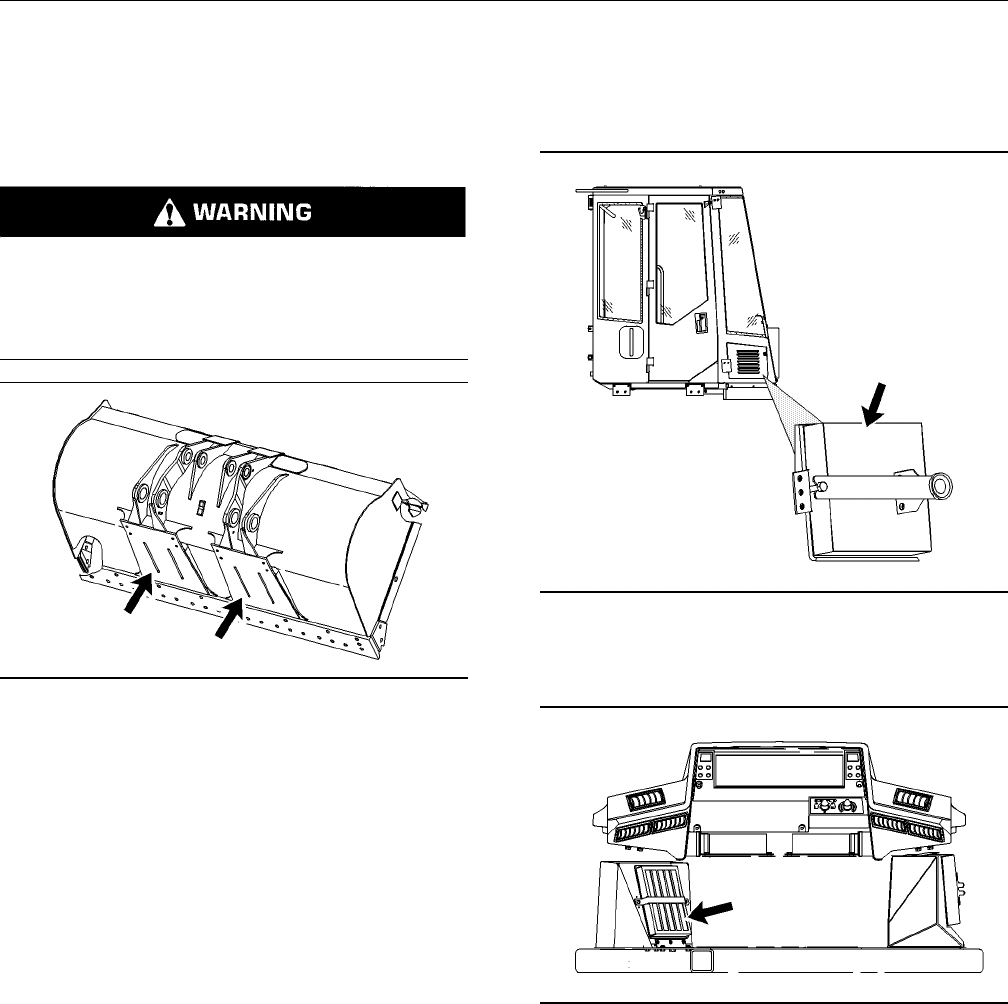

g00879740
Illustration 145
Inspect the wear plates. Replace the wear plates
before damage to the bottom of the bucket occurs.
Consult your Caterpillar dealer for replacement of
wear plates.
i01521741
Cab Air Filter - Clean/Replace
SMCS Code: 7342-070; 7342-510
g00790441
Illustration 146
Open the access door that is located on both sides
of the cab. Remove the two air filters.
g00790464
Illustration 147
Remove the air filter that is located on the inside
of the cab.
Clean the filter elements with pressure air or wash
the filter elements in warm water with a nonsudsing
household detergent. If water and detergent are
used to clean the filter elements, rinse the filter
elements in clean water and allow the filter elements
to air dry thoroughly.
Note: If either filter element is damaged, install a
new filter element.
Install the filter elements. Install the filter covers and
close the access doors.
