416C, 426C, 428C, 436C and 438C Backhoe Loaders Operation and Maintenance Manual Page 41

Operation and Maintenance Manual
226
Maintenance Section
Swing Frame and Cylinder Bearings - Lubricate
Position the stabilizer, as shown.
Apply lubricant to the grease fitting for the head
end of the cylinder.
Repeat for the other stabilizer.
There is a total of two grease fittings.
i00615422
Swing Frame and Cylinder
Bearings - Lubricate
SMCS Code: 5105; 6506; 6507; 7063

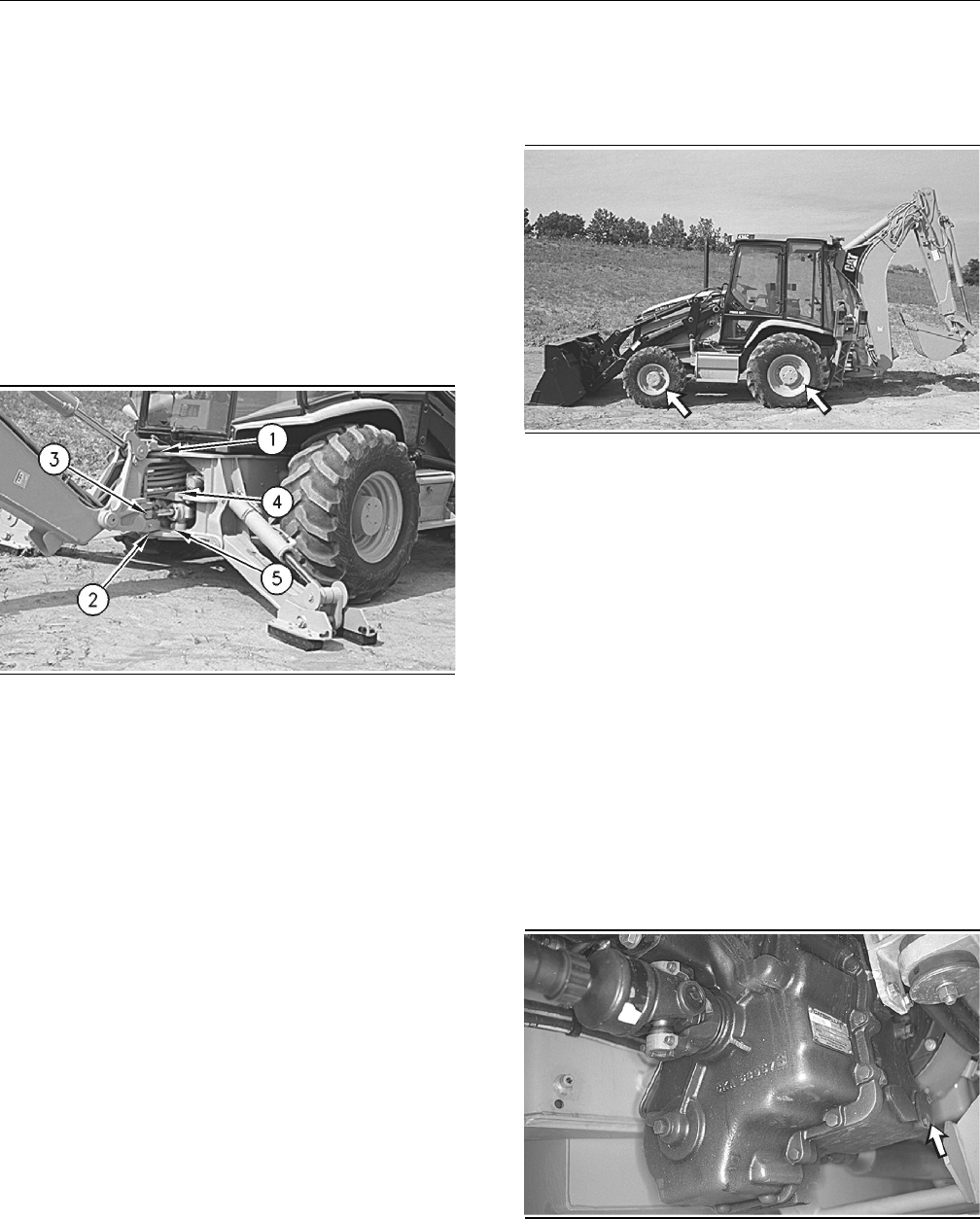

g00287723
Illustration 382
Apply lubricant to the grease fitting (1) for the top
swing pin.
Apply lubricant to the grease fitting (2) for the
bottom swing pin.
Apply lubricant to the grease fitting (3) for the eye
of the swing cylinder. Repeat for the other swing
cylinder.
Apply lubricant to the grease fitting (4) for the
bearing on the top of the swing cylinder. Repeat for
the other swing cylinder.
Apply lubricant to the grease fitting (5) for the
bearing on the bottom of the swing cylinder. Repeat
for the other swing cylinder.
There is a total of eight grease fittings.
i00615425
Tire Inflation - Check
SMCS Code: 4203
g00287414
Illustration 383
Measure the tire pressure on each tire. Consult your
Caterpillar dealer for the correct load rating and for
the correct operating pressures.
Inflate the tires, if necessary. Refer to Operation and
Maintenance Manual, “Tire Inflation with Air” and
Operation and Maintenance Manual, “Tire Inflation
with Nitrogen”.
i00615434
Transmission Magnetic Screen
- Clean
SMCS Code: 3030
1. Drain the transmission oil. Refer to Operation
and Maintenance Manual, “Transmission Oil -
Change”.
g00293338
Illustration 384
Magnetic strainer cover for the standard transmission
Previous page
Next page
