Differential Oil (Rear) - Change
i00601241
Differential Oil (Rear) - Change
SMCS Code: 3258
Rear Axle
g00290691

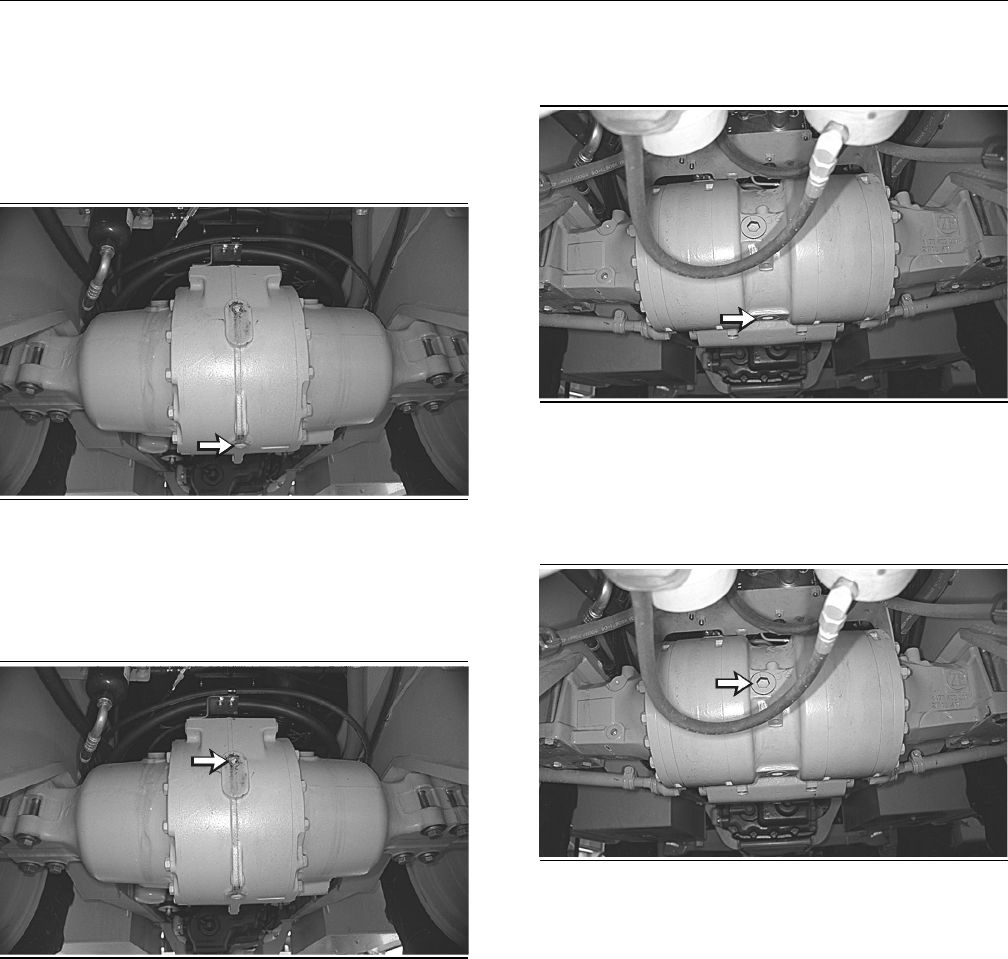

Illustration 300
1. Remove the oil drain plug and drain the oil into a
suitable container.
2. Clean the drain plug and install the drain plug.
g00290697
Illustration 301
3. Remove the oil level/fill plug. Refer to
Operation and Maintenance Manual, “Lubricant
Specifications” and Operation and Maintenance
Manual, “Refill Capacities” for oil.
4. Add oil until the oil is level with the threads for
the filler plug.
5. Clean the filler plug and install the filler plug.
Rear Axle with All Wheel Steer
(AWS)
g00290698
Illustration 302
1. Remove the oil drain plug and drain the oil into a
suitable container.
2. Clean the drain plug and install the drain plug.
g00290699
Illustration 303
3. Remove the oil level/fill plug. Refer to
Operation and Maintenance Manual, “Lubricant
Specifications” and Operation and Maintenance
Manual, “Refill Capacities” for oil.
4. Add oil until the oil is level with the threads for
the filler plug.
5. Clean the filler plug and install the filler plug.
i00602597
Differential Oil Level (Front) -
Check
SMCS Code: 3258
The oil level/fill plug is located near the middle of
the front axle.
