Engine Valve Lash - Check
10. Stop the engine and allow the oil to drain back
into the oil pan. Maintain the oil level in the
crosshatched region of the engine oil dipstick
(3). Add oil, if necessary.
11. Replace the engine access panel and close the
engine access door.
i01010167
Engine Valve Lash - Check
SMCS Code: 1102-082; 1102-535; 1102; 1209-082;
1209
Note: A qualified service person should perform the
valve lash check and/or the valve lash adjustment.
Special tools and training are required.
Check the engine valve lash after every 1000
service hours or 6 months on machines that are
equipped with the following engine arrangements:
•
122-8803 Primary Engine Arrangement
•
122-8804 Engine Arrangement
•
122-8805 Engine Arrangement
•
122-8806 Engine Arrangement
The engine arrangement number is located on the
engine serial number plate.
Check the engine valve lash after every 2000
service hours or 1 year on machines that are not
equipped with the engine arrangements that are
listed above.
Refer to your machine’s Service Manual for
complete instructions.
i01184251
Extendable Stick Pads -
Inspect/Replace
(If Equipped)
SMCS Code: 6533-040-JP; 6533-510-JP
Inspect Wear Pads

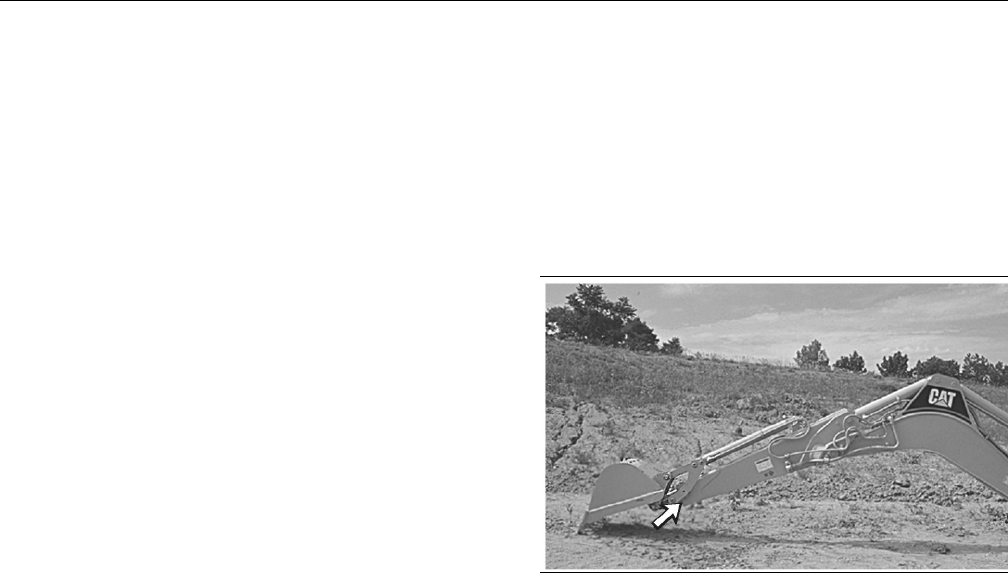

g00634728
Illustration 329
Check the extendable stick for slop. Shim the
extendable stick pads in order to maintain an
acceptable fit and reduce slop.
Note: Do not apply an excessive amount of a
silicone based lubricant. Dirt can be attracted to the
lubricant and dirt can cause abrasion to the pad
assemblies and wear to the pad assemblies.
The extendable stick pads do not normally require
any lubrication. If the extendable stick becomes
noisy, a small amount of a silicone based lubricant
may be applied.
Adjustment for Top Upper Wear
Pad
1. Extend the extendable stick to one half of the
fully extended position.
2. Move the stick and move the boom down against
the ground. This will take pressure off the wear
pad.
