Loader Bucket, Cylinder, and Linkage Bearings - Lubricate
i01035226
Loader Bucket, Cylinder, and
Linkage Bearings - Lubricate
SMCS Code: 7069; 7070; 7071
Single Tilt Machines

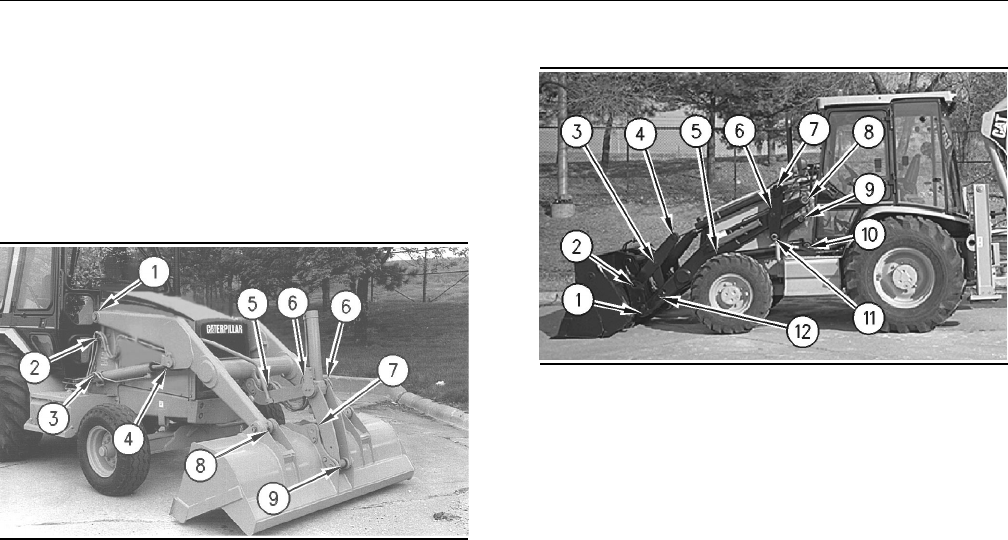

g00291110
Illustration 368
Apply lubricant to the grease fittings (1) for the
frame and for the lift arm. There is a grease fitting
for each side of the machine.
Apply lubricant to the grease fitting (2) for the pivot
for the linkage of bucket positioner and lift kickout.
Apply lubricant to the grease fittings (3) for the
head end of the lift cylinder. There is a grease fitting
for each side of the machine.
Apply lubricant to the grease fittings (4) for the rod
end of the lift cylinder. There is a grease fitting for
each side of the machine.
Apply lubricant to the grease fittings (5) for the pivot
pin at the loader lift arm. There is a grease fitting for
each side of the machine.
Apply lubricant to the grease fittings (6) for the
pivot bearings for the bucket tilt cylinder. There is a
grease fitting in each linkage (four total).
Apply lubricant to the grease fitting (7) for the rod
end of the tilt cylinder.
Apply lubricant to the grease fittings (8) for the
lower pivot pins. There is a grease fitting for each
side of the machine.
Apply lubricant to the grease fittings (9) for the
upper pivot pin. There is a grease fitting for each
side of the machine.
There is a total of 17 grease fittings.
Parallel Lift Machines
g00291114
Illustration 369
Apply lubricant to the grease fittings (1) for the
lower pivot pin of the quick coupler assembly. There
is a grease fitting for each side of the machine.
Apply lubricant to the grease fittings (2) for the
upper pivot pin of the quick coupler assembly. There
is a grease fitting for each side of the machine.
Apply lubricant to the grease fittings (3) for the
upper pivot pin of the tilt linkage. There is a grease
fitting for each side of the machine.
Apply lubricant to the grease fittings (4) for the rod
end of the tilt cylinder. There is a grease fitting for
each side of the machine.
Apply lubricant to the grease fittings (5) for the rod
end of the lift cylinder. There is a grease fitting for
each side of the machine.
Apply lubricant to the grease fittings (6) for the
center pivot pin of the parallel linkage. There is a
grease fitting for each side of the machine.
Apply lubricant to the grease fittings (7) for the
head end of the tilt cylinder. There is a grease fitting
for each side of the machine.
Apply lubricant to the grease fittings (8) for the
frame and for the lift arm. There is a grease fitting
for each side of the machine.
Apply lubricant to the grease fittings (9) for the
frame and for the parallel linkage. There is a grease
fitting for each side of the machine.
Apply lubricant to the grease fittings (10) for the
head end of the lift cylinder. There is a grease fitting
for each side of the machine.
Apply lubricant to the grease fittings (11) for the
lower pivot pin of the parallel linkage. There is a
grease fitting for each side of the machine.
