416C, 426C, 428C, 436C and 438C Backhoe Loaders Operation and Maintenance Manual Page 17

Operation and Maintenance Manual
202
Maintenance Section
Differential Oil (Front) - Change

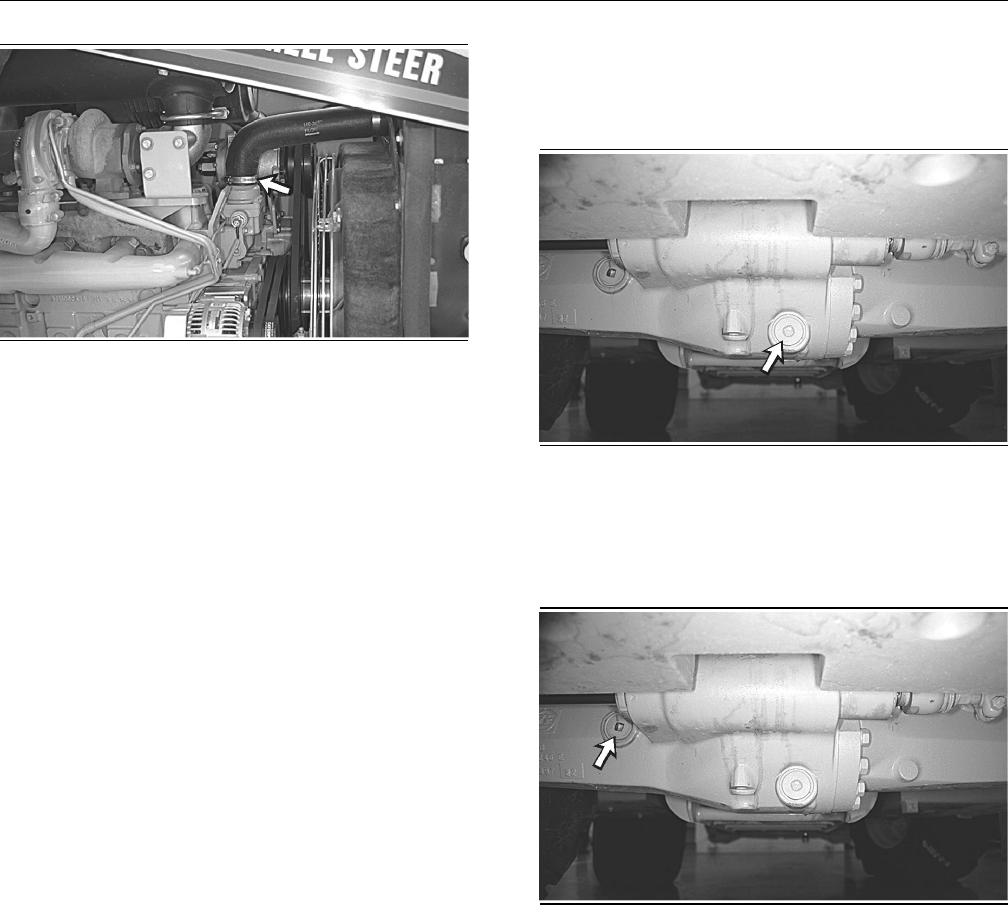

g00290684
Illustration 297
6. Loosen the hose clamp and remove the hose
from the thermostat housing assembly.
7. Remove the bolts from the thermostat housing
assembly. Remove the thermostat housing
assembly.
8. Remove the gasket, the thermostat, and the seal
from the thermostat housing assembly.
9. Install a new seal in the thermostat housing
assembly. Install a new thermostat and a new
gasket. Install the thermostat housing assembly
on the engine cylinder head.
The thermostats can be reused under the
following conditions.
•
The thermostat is tested and the thermostat
meets test specifications.
•
The thermostat is not damaged.
•
The thermostat does not have excessive
buildup of deposits.
10. Install the hose. Tighten the hose clamp.
11. Refill the cooling system. Refer to Operation
and Maintenance Manual, “Cooling System
Specifications” and Operation and Maintenance
Manual, “Refill Capacities”.
i00601036
Differential Oil (Front) - Change
SMCS Code: 3258
g00290687
Illustration 298
1. Remove the oil drain plug and drain the oil into a
suitable container.
2. Clean the drain plug and install the drain plug.
g00290688
Illustration 299
3. Remove the oil level/fill plug. Refer to
Operation and Maintenance Manual, “Lubricant
Specifications” and Operation and Maintenance
Manual, “Refill Capacities” for oil.
4. Add oil until the oil is level with the threads for
the filler plug.
5. Clean the filler plug and install the filler plug.
