416C, 426C, 428C, 436C and 438C Backhoe Loaders Operation and Maintenance Manual Page 19

Operation and Maintenance Manual
204
Maintenance Section
Differential Oil Level (Rear) - Check

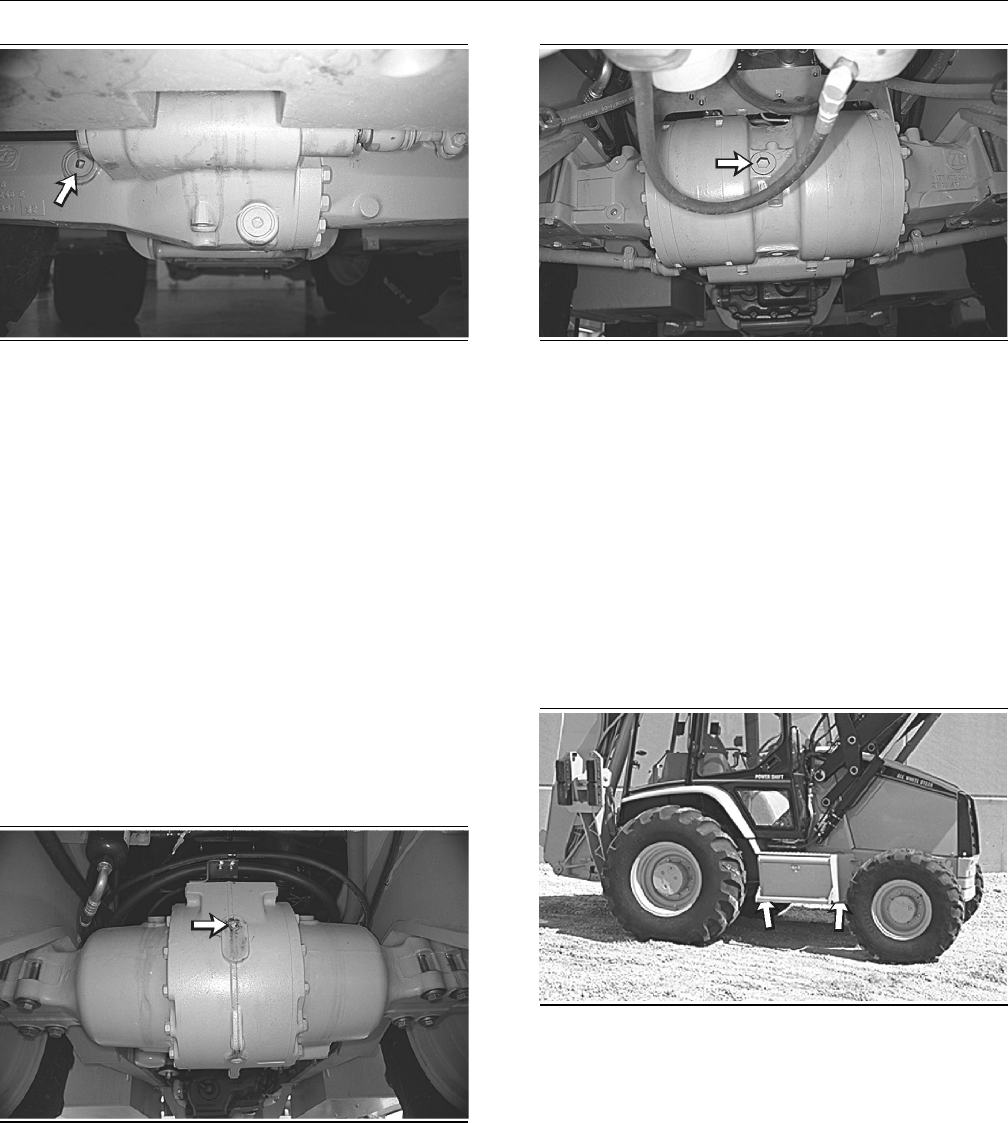

g00290688
Illustration 304
1. Remove the oil level/fill plug in order to check
the oil.
2. The oil level should be at the bottom of the plug
threads.
3. Clean the oil level/fill plug and install the oil
level/fill plug.
i00602602
Differential Oil Level (Rear) -
Check
SMCS Code: 3258
The oil level/fill plug is located near the middle of
the rear axle.
g00290697
Illustration 305
Filler plug on standard rear differential
g00290699
Illustration 306
Filler plug on rear differential for All Wheel Steer
1. Remove the oil plug in order to check the oil.
2. The oil level should be at the bottom of the plug
threads.
3. Clean the oil plug and install the oil plug.
i00604375
Drive Shaft Spline - Lubricate
SMCS Code: 3253
g00290705
Illustration 307
Access the grease fittings for the drive shaft spline
from the bottom of the machine.
