416C, 426C, 428C, 436C and 438C Backhoe Loaders Operation and Maintenance Manual Page 34

Operation and Maintenance Manual
219
Maintenance Section
Hydraulic System Oil Filter - Replace
i00609992
Hydraulic System Oil Filter -
Replace
SMCS Code: 5056; 5068
g00287385

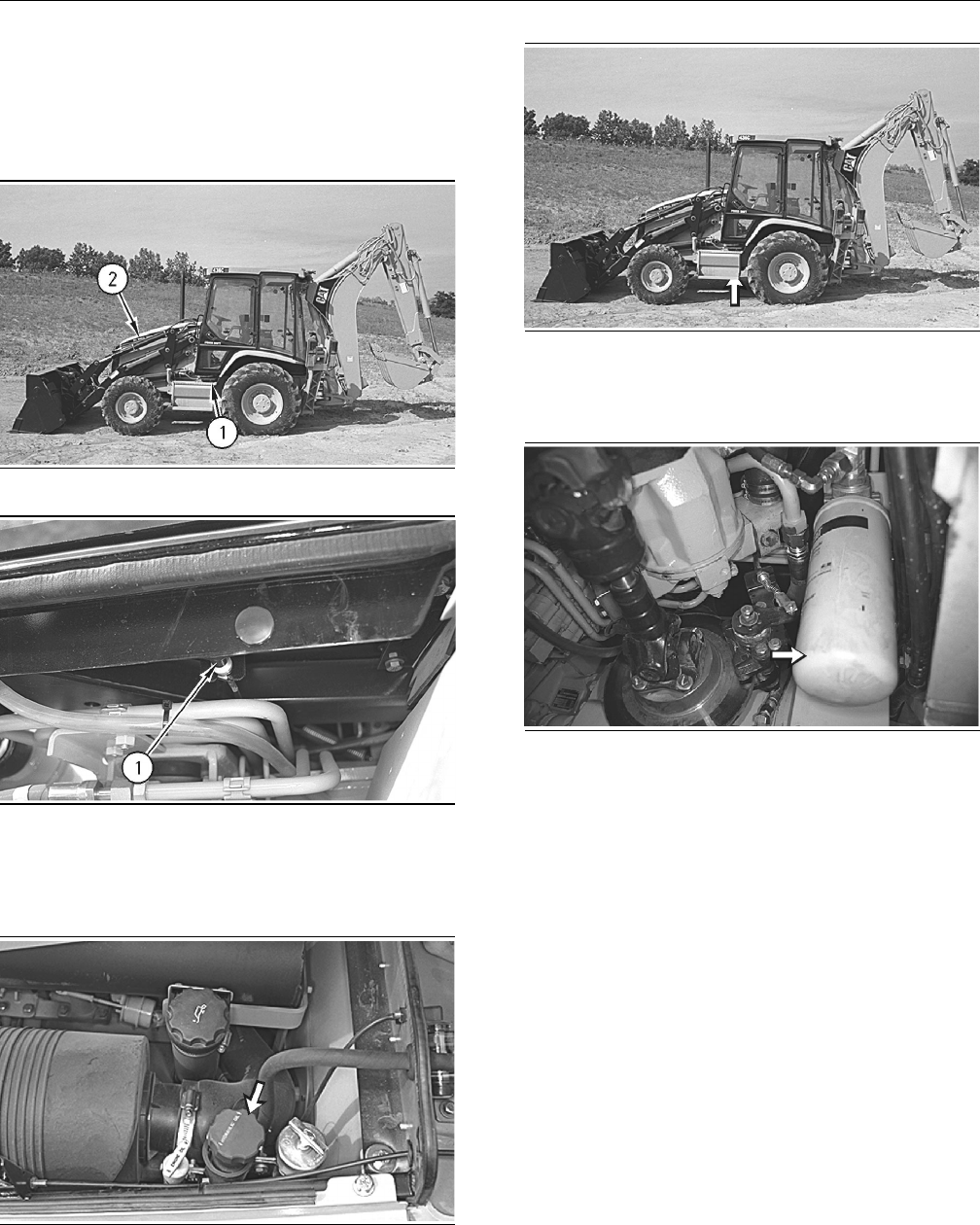

Illustration 359
g00287410
Illustration 360
1. Pull the hood release lever (1) in order to open
the engine access door (2) on the top of the
machine.
g00290718
Illustration 361
2. Remove the hydraulic tank filler cap that is
located under the access panel on the top of the
engine compartment.
g00290721
Illustration 362
3. The hydraulic oil filter is located on the left side
of the machine.
g00290851
Illustration 363
4. Remove the filter element with a strap type
wrench.
5. Clean the filter element mounting base. Remove
any part of the filter element gasket that remains
on the filter element mounting base.
6. Apply a light coat of oil to the gasket of the new
filter element.
7. Install the new filter element by hand. When the
gasket contacts the filter element mounting base,
tighten the filter element for an additional three
quarters of a turn.
8. Remove the hydraulic tank breather. Replace the
old breather with a new breather.
