416C, 426C, 428C, 436C and 438C Backhoe Loaders Operation and Maintenance Manual Page 10

Operation and Maintenance Manual
195
Maintenance Section
Bucket Tips - Inspect/Replace
i00081131
Bucket Tips - Inspect/Replace
SMCS Code: 6805
Block the bucket before changing the bucket
teeth.
To prevent possible injury to the eyes, wear a pro-
tective face shield when striking the pin.
The pin, when struck, can fly out and cause injury
to nearby personnel.
1. Drive the pin out of the bucket tip from the
retainer side of the bucket tip. Remove the
bucket tip and the retainer.
2. Clean the adapter, the pin, and the retainer.
Replace any damaged parts. Install the retainer
in the groove.
3. The bucket tip should be installed over the
retainer. Install the bucket tip in the runner
position or in the digger position.
4. Drive the pin through the retainer, through the
adapter, and through the bucket tip from the side
that is opposite the retainer.
i00621342
Cab Air Filter - Clean/Replace
SMCS Code: 7311; 7342
Clean the Filter Element
NOTICE
Do not clean the elements by bumping or tapping
them.
Inspect the elements after cleaning. Do not use an
element with damaged pleats, gaskets or seals.
When cleaning with pressure air, use 205 kPa (30 psi)
maximum to prevent element damage by too much air
pressure.
When cleaning with pressure water, use 280 kPa
(40 psi) maximum to prevent element damage.
Clean the filter element weekly, but clean the filter
element daily when there is a reduction of air
circulation.

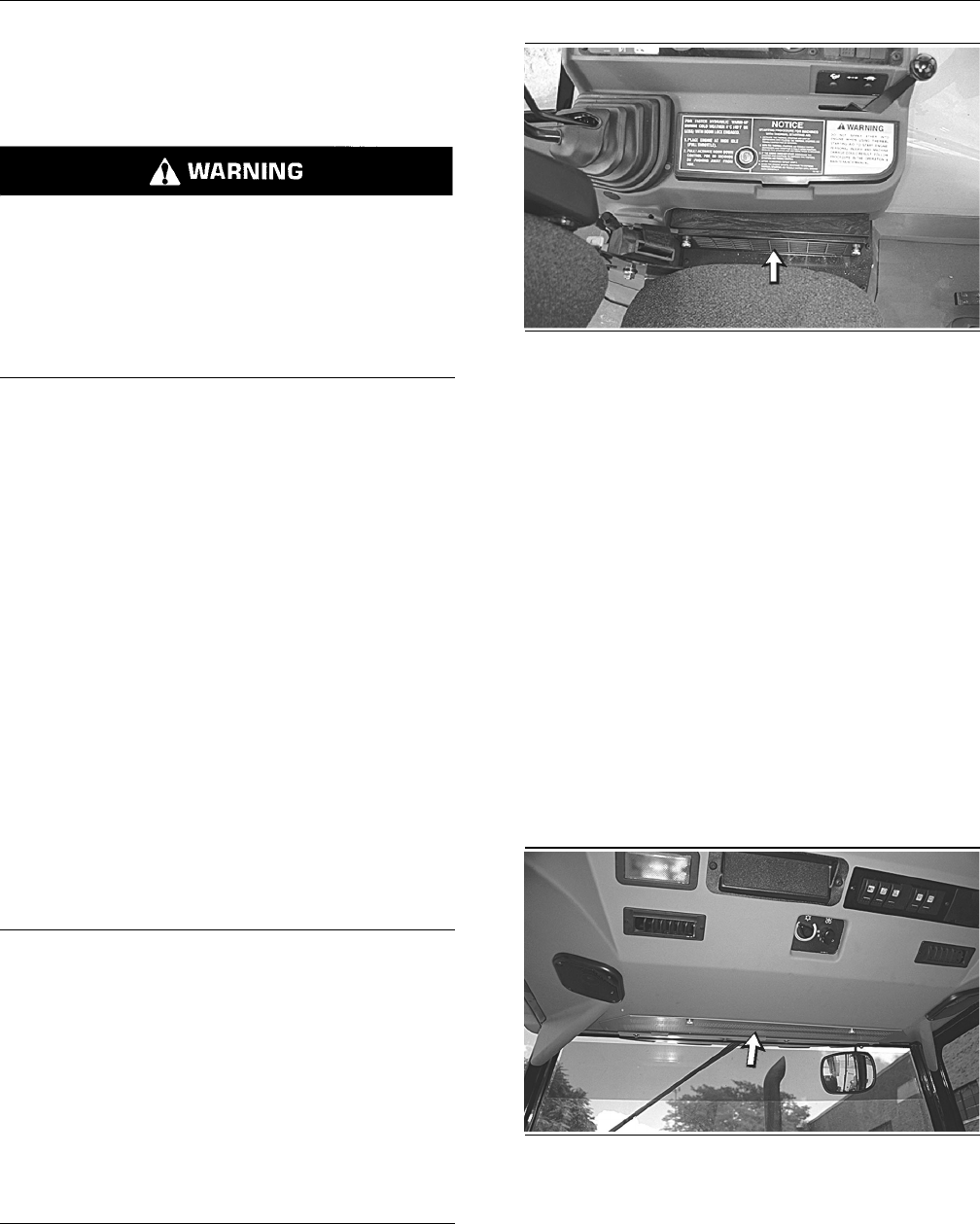

g00287370
Illustration 276
1. Remove the filter cover that is located at the
bottom of the right hand console.
2. Remove the filter element.
3. Clean the filter element with compressed air or
pressure water. Direct the air or the water along
the pleats of the element. You can also wash
the element with clean water and nonsudsing
household detergent.
4. Rinse the filter element thoroughly with clear
water.
5. Allow the filter element to air dry. Inspect the
element for damage. If the filter element is
damaged, replace the filter element.
6. Install the filter element.
7. Install the filter cover.
g00293554
Illustration 277
8. Remove the filter cover that is located on the
headliner by the front windshield.
