416C, 426C, 428C, 436C and 438C Backhoe Loaders Operation and Maintenance Manual Page 22

Operation and Maintenance Manual
207
Maintenance Section
Engine Air Filter Service Indicator - Inspect
g00101864

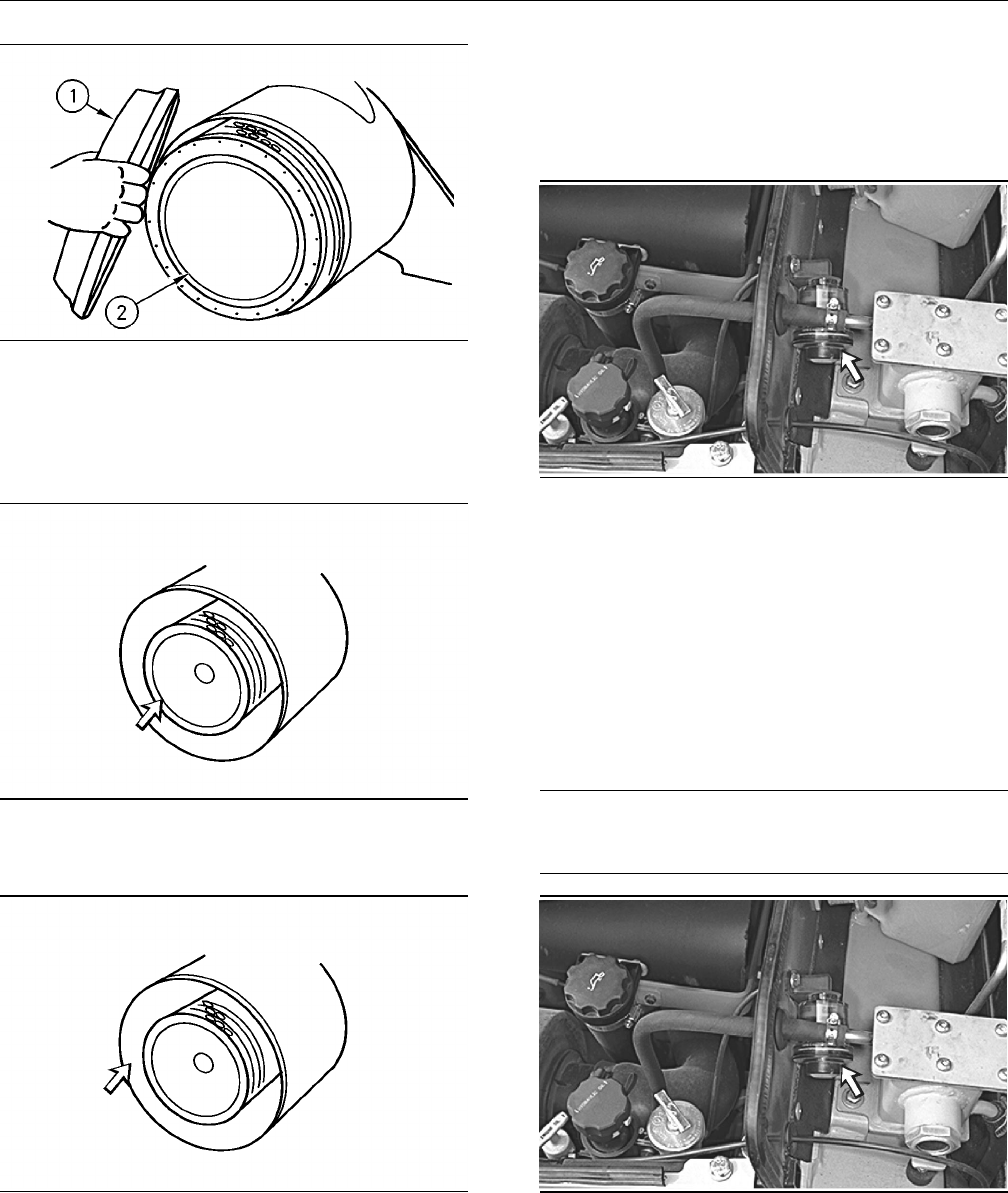

Illustration 315
2. Remove the air cleaner housing cover (1).
3. Remove the primary filter element (2) from the air
cleaner housing.
g00038606
Illustration 316
4. Remove the secondary filter element.
g00101865
Illustration 317
5. Cover the air inlet opening. Clean the inside of
the air cleaner housing.
6. Inspect the gasket between the air inlet pipe and
the air cleaner housing. Replace the gasket if
the gasket is damaged.
7. Uncover the air inlet opening. Install a new
secondary element.
8. Install the primary element and the air cleaner
housing cover. Fasten the clips in order to secure
the air cleaner housing cover.
g00287382
Illustration 318
9. Reset the filter element indicator.
10. Close the engine access door.
i00606530
Engine Air Filter Service
Indicator - Inspect
SMCS Code: 1051; 1054; 7452
NOTICE
Service the air cleaner only with the engine stopped.
Engine damage could result.
g00287382
Illustration 319
The filter service indicator is located under the
engine access door on the top of the machine.
Start the engine. Run the engine at high idle. If the
yellow piston in the filter service indicator enters the
red zone, service the air cleaner. Stop the engine.
