Caterpillar Engine Tools Cat Overhaul 3512 Page 378

Operation and Maintenance Manual
2600258
2600276
3-378
Engine Tools
3600 Engine Tools

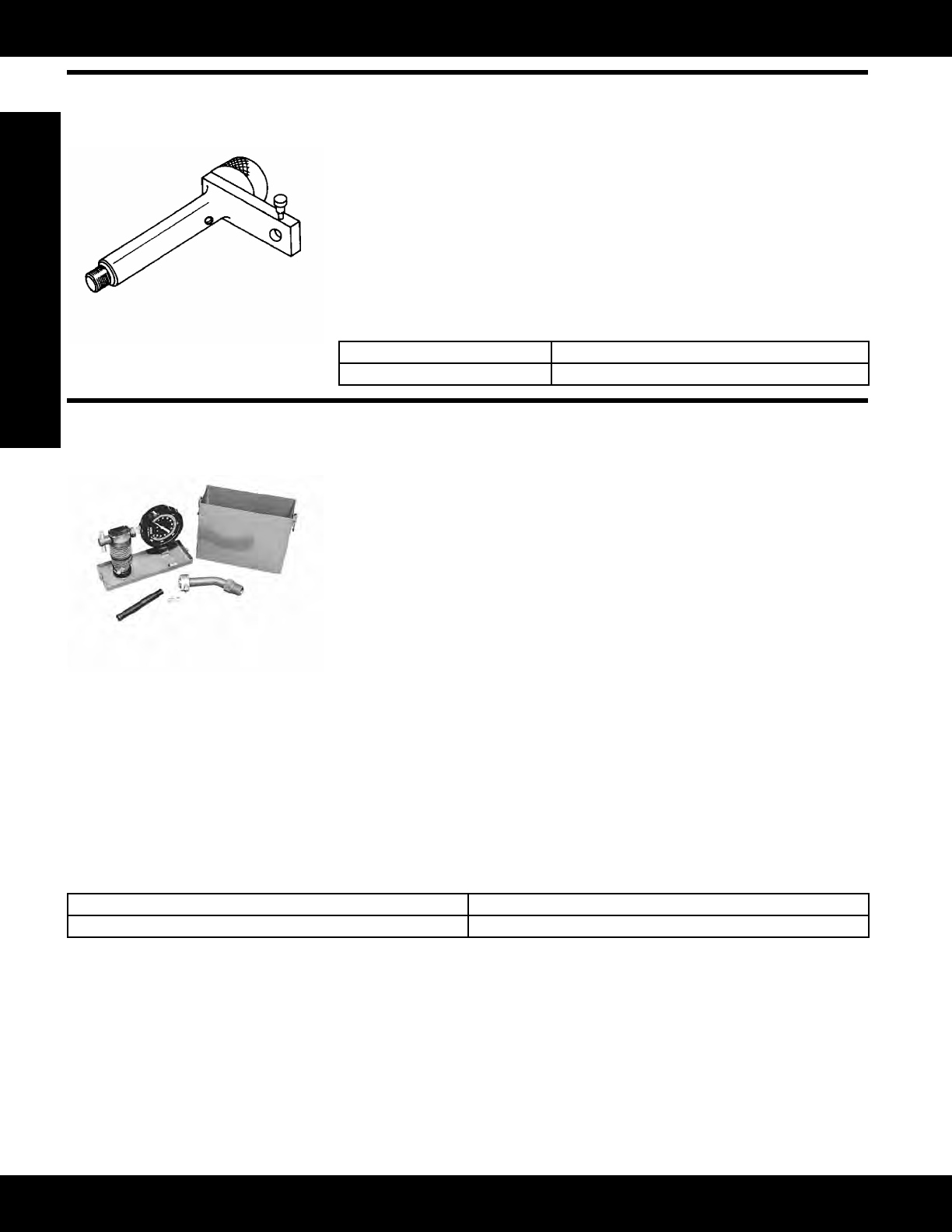

4C-6593 Valve Lash Tool
Model: 3600 Engines
Warranty: Six Months
• Usedtoeasilycheckandadjustvalvelashclearanceofintakeandexhaust
valve
• Part of 4C-6594 Timing and Fuel Setting Tool Group
• Used with 6V-3075 Dial Indicator and 8S-3675 Contact Point (parts of 4C-6594
ToolGroup);bothcanbesecuredinvalvelashtoolbytighteningnylonthumb
screw
• 11.11 cm (4 3/8 in) fabricated steel bracket with:
1/4 - 24 plastic thumb screw to hold a dial indicator in place
3/8 - 16 bolt with 38.1 mm (1 1/2 in) diameter knurled knob for ease of installing to
valverockercoverbase
Part Number Description
4C-6593 AdjustingAs-ValveLash
4C-6585 Cylinder Pressure Measuring Indicator Group, 3000 psi
Model: 3600 Engines
Warranty: Manufacturer’s Six Months
• Troubleshooting tool used to check cylinder pressure on 3600 Family Diesel
Engines
• Easilyprovidesrelativeaveragepeakcylinderpressureonrunningengine
• Not recommended for use on other than diesel engines because static pressure
indication would require too much tapping to bring pointer to correct reading
• Usedwith7E-1699ManualValveGroupdesignedsoanymovementofvalve
stemduetoenginevibrationtightensvalvestemagainstitsseat;preventsvalve
from accidentally opening during engine operation
• K-107 cylinder pressure indicator manufactured by Kiene Diesel Accessories,
Inc.
• Equipped with 3 1/2 inch Zytel nylon Bezel and case, threaded Bezel, Bourdon
tube gauge, dual range 0 through 3000 psi and 0 through 210 kg/cm², metal case
andservicetool
• Kiene AX-13A standard indicator connection (M) by 1 1/16-10 Whitworth (F),
wing nut and plug, 45° bend, 15.2 cm (6 in) long
Repair and Service
Kiene Diesel Accessories, Inc.
325 So. Fairbanks Street
Addison, IL 60101
Phone: 708-543-5950
Fax: 708-543-5953
Part Number Description
4C-6585 Cylinder Pressure Measuring Indicator Group
