3-260

Engine Tools

Fuel System Repair and Adjust

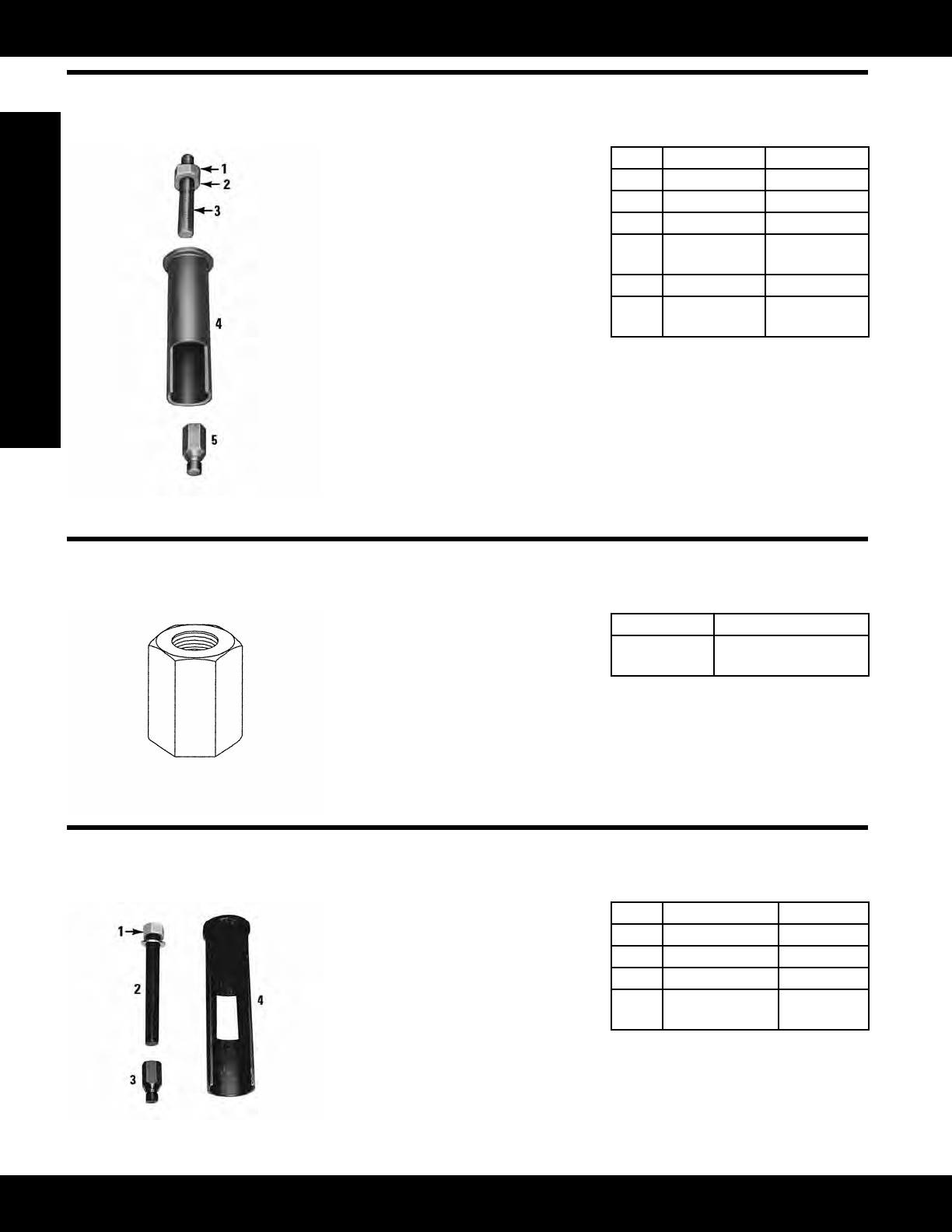

6V-6981 Nozzle Puller Group

Model: 3406

Warranty: Six Months

• Usedforremovalof8N-7006Direct

Injection Fuel Nozzles from 3406

Engines

• Usesseveralpartsfromearlier6V-

4061 Nozzle Puller Group

Item Part Number Description

1 1B-4206 Nut

2 2S-5658 Washer

3 6V-4152 Screw

6V-6982 SleeveAs-

sembly

6V-6983 Adapter

-- 6V-6981 Nozzle Puller

Group

These parts are needed to make the 6V-6981 Nozzle Puller Group from the earlier 6V-4061 Nozzle Puller Group.

9U-6278 Injector Puller Connector

Model: 3054, 3056, 3064, and 3066 Engines

Warranty: Six Months

• Usedtoremovestuckinjector

nozzles due to carbon deposit build-

up in bore

• Used with 1U-7600 Puller Group

• 1/2 - 20 thread (female) on one end

and M12 x 1.5 thread (female) on

other end

Part Number Description

9U-6278 Injector Puller Con-

nector

Tools for 3406B Engine Fuel Nozzle and Fuel Nozzle Adapter

Model: 3406B

Warranty: Six Months

• Smallertoolsrequiredtoremove

and install cylinder heads on 3406B

Engines, which were redesigned

with smaller diameter fuel injection

nozzle adapters

Item Part Number Description

1 1B-4206 Nut

2 8T-3199 Screw

3 6V-6983 Adapter

4 8T-3198 SleeveAs-

sembly
