Caterpillar Engine Tools Cat Overhaul 3512 Page 356

Operation and Maintenance Manual
2599552
3-356
Engine Tools
Engine Lifting and Positioning
Engine Lifting and Positioning

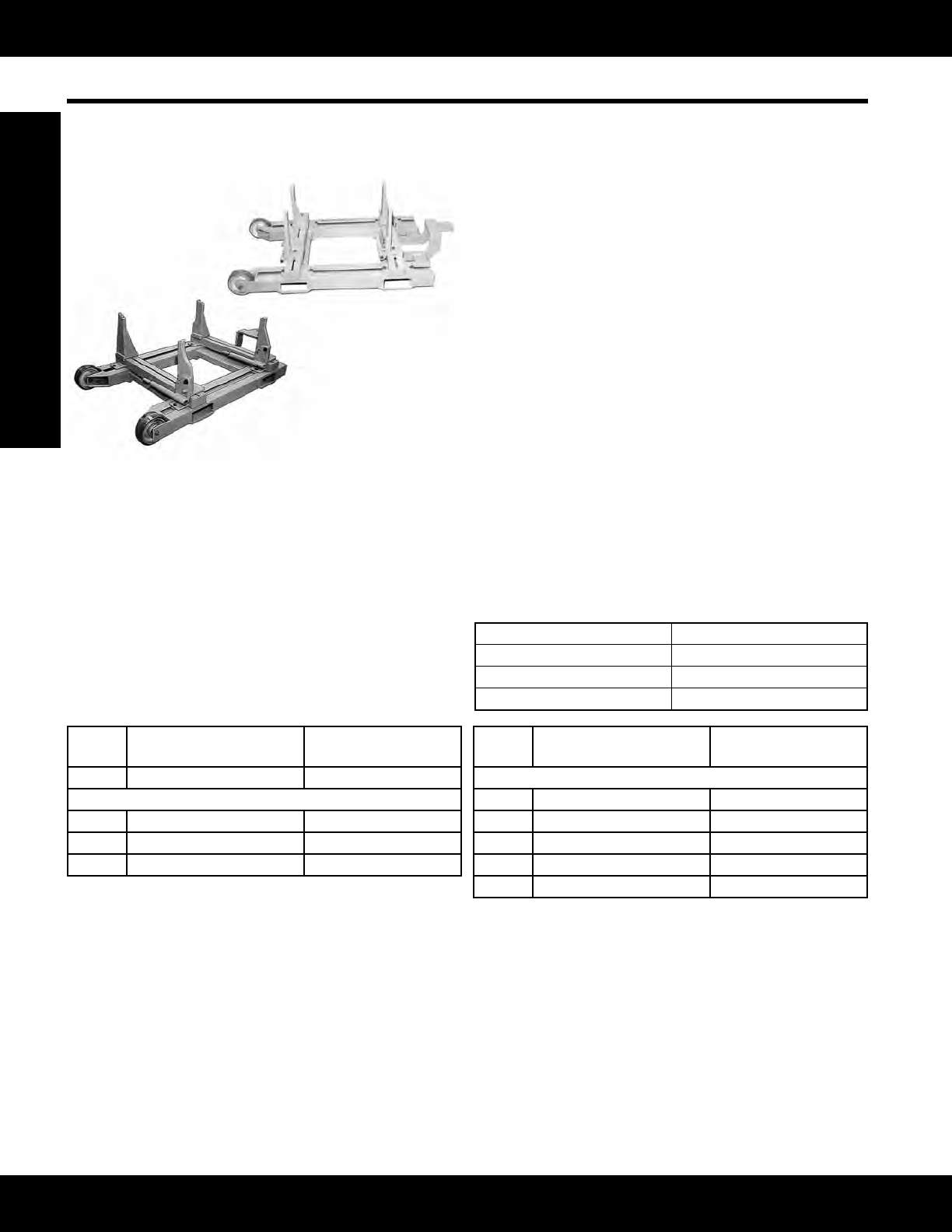

6V-0097 Engine Rebuild Stand
Model: All engine models from 3204 through D348 and 3412
Warranty: Six Months
• Designedtoprovidemostefcientmeansforengine
reconditioning
• Design permits dynamometer testing of engine on stand
• Normally used with 9S-9081 Sling Assembly and 9S-9060
Dual Hook Hoist to rotate engine during disassembly and
assembly
• Superior to former 9S-8500 Stand because of its rigid,
1-piece construction and polyurethane rather than steel
wheels
• Portable with use of discontinued 1P-0090 Dolly and
channel construction allows handling with lift truck with
2 sides
Reference
SMHS7861, Special Instruction
NOTE:
To mount D348 or 3412 Engine on earlier 6V-0097 Stands, it is
necessarytomodifyfrontsupportstoprovideclearanceforoil
coolers.
Also, to mount 3208 Engines, right rear support must be modi-
edtoprovideclearanceforstartingmotor.Ifthesemodi-
cationsarerequired,requestthefollowingdrawingsfrom
DivisionServiceManager:
FT1513—ModicationforD348or3412Engines
FT1530—Modicationfor3208Engines
Length 1854 mm (73 in)
Width 1016 mm (40 in)
Height 610 mm (24 in)
Weight 272 kg (600 lb)
Part
Number Description Quantity
6V-0097 Engine Rebuild Stand --
Service/Repair Parts
6V-2026 Wheel 2
3B-4629 Cotter Pin 4
0S-1587 Bolt 4
Part
Number Description Quantity
Service/Repair Parts (Continued)
5P-8245 Hard Washer 12
1A-1135 Bolt 2
5P-8247 Hard Washer 2
1H-1200 Pin 2
4B-4283 Washer 2
